RM3660EC _59 Vehicle Exterior _080794 MIRROR (EXT) _0393001 OUTER REAR VIEW MIRROR GLASS G

MIRROR (EXT)  OUTER REAR VIEW MIRROR GLASS  INSPECTION


PROCEDURE

Hide 1.INSPECT OUTER MIRROR RH (for GTMC Made with Mirror Heater)

a.
B322114C03
1.792,0.885 1.792,0.552 1.792,0.552 2.458,0.552 false 1.875,1.104 2.375,1.104 false 0.188,0.167 0.5,0.365 0.313,0.198 10 false *a 2.531,0.49 2.688,0.688 0.156,0.198 10 false 1 2.448,1.042 2.604,1.24 0.156,0.198 10 false 2
*a Component without harness connected
(Outer Mirror RH)


Check the outer mirror heater operation.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 25°C (77°F) 12 to 18 Ω


If the result is not as specified, replace the outer mirror RH.



Hide 2.INSPECT OUTER MIRROR LH (for GTMC Made with Mirror Heater)

a.
B322115C03
1.5,0.885 1.5,0.615 1.5,0.615 0.833,0.615 false 0.823,1.104 1.406,1.104 false 0.188,0.167 0.5,0.365 0.313,0.198 10 false *a 0.688,0.552 1,0.75 0.313,0.198 10 false 1 0.698,1.052 1.01,1.25 0.313,0.198 10 false 2
*a Component without harness connected
(Outer Mirror LH)


Check the outer mirror heater operation.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 25°C (77°F) 12 to 18 Ω


If the result is not as specified, replace the outer mirror LH.



Hide 3.INSPECT OUTER MIRROR RH (for TFTM Made)

a.

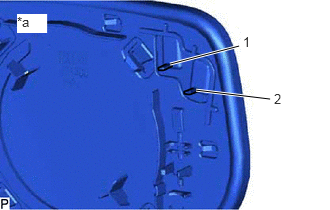

B546223C01
2.042,0.938 2.813,1.031 true 1.771,0.667 2.49,0.479 true 0.177,0.146 0.49,0.344 0.313,0.198 10 true *a 2.531,0.354 2.813,0.604 0.281,0.25 10 true 1 2.854,0.948 3.083,1.198 0.229,0.25 10 true 2
*a Component without harness connected
(Outer Mirror RH)


Check the outer mirror heater operation.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

*1: w/o Automatic Retractable Mirror

*2: w/ Automatic Retractable Mirror

1 - 2 25°C (77°F) 10.5 to 12.8 Ω*1
12 to 18 Ω*2


If the result is not as specified, replace the outer mirror RH.



Hide 4.INSPECT OUTER MIRROR LH (for TFTM Made)

a.

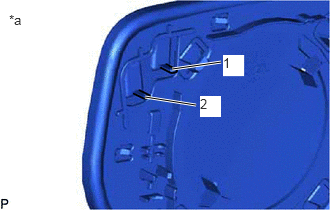

B546222C01
1.792,0.719 2.302,0.646 true 1.51,1.01 2.042,1.094 true 0.094,0.125 0.406,0.281 0.313,0.156 10 false *a 2.323,0.573 2.542,0.792 0.219,0.219 10 true 1 2.083,1 2.302,1.219 0.219,0.219 10 true 2
*a Component without harness connected
(Outer Mirror LH)


Check the outer mirror heater operation.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition

*1: w/o Automatic Retractable Mirror

*2: w/ Automatic Retractable Mirror

1 - 2 25°C (77°F) 10.5 to 12.8 Ω*1
12 to 18 Ω*2


If the result is not as specified, replace the outer mirror LH.
