EXTERIOR PANELS / TRIM FRONT BUMPER(for TFTM Made) DISASSEMBLY

Hide Display 1.REMOVE FRONT SPOILER COVER (for COROLLA)

a.

w/ Front Spoiler:

i.

Remove the 7 screws.

ii.

Remove the 6 clips.

iii.

Disengage the 11 guides to remove the front spoiler cover.

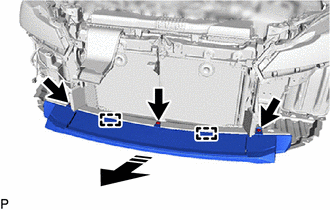

Hide Display 16563C 2.REMOVE NO. 3 RADIATOR TO SUPPORT SEAL (for COROLLA)

a.

0,0 0,0 false

Remove in this Direction

Disengage the claw and guide as shown in the illustration to remove the No. 3 radiator to support seal.

Hide Display 16562J 3.REMOVE NO. 2 RADIATOR TO SUPPORT SEAL (for COROLLA)

HINT:: Use the same procedure as for the No. 3 radiator to support seal.

Hide Display 16563C 4.REMOVE NO. 3 RADIATOR TO SUPPORT SEAL (for ALLION)

a.

0,0 0,0 false

Remove in this Direction

Disengage the claw and guide as shown in the illustration to remove the No. 3 radiator to support seal.

Hide Display 16562J 5.REMOVE NO. 2 RADIATOR TO SUPPORT SEAL (for ALLION)

HINT:: Use the same procedure as for the No. 3 radiator to support seal.

Hide Display 89341L 6.REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ Parking Support Brake System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front Side)>REMOVAL202307,999999,_56,_080754,_0470420,RM100000002CWH1_01_0059,

Hide Display 89341K 7.REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ Parking Support Brake System)

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>ULTRASONIC SENSOR (for Front Side)>REMOVAL202307,999999,_56,_080754,_0470420,RM100000002CWH1_01_0060,

Hide Display 82119C 8.REMOVE NO. 5 ENGINE ROOM WIRE (w/ Parking Support Brake System)

a.

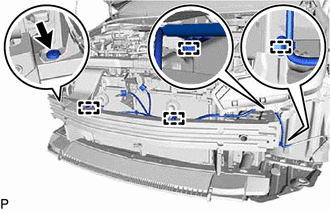

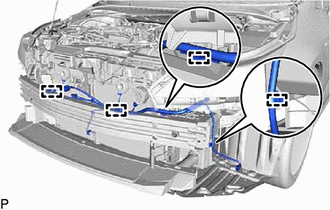

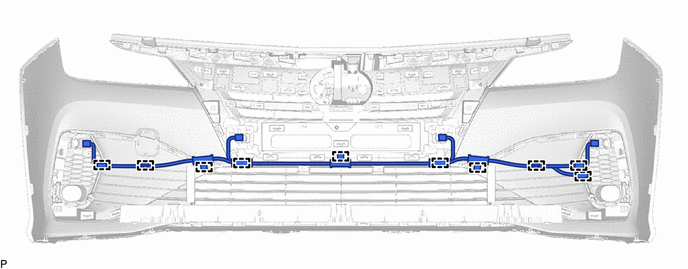

Disengage the 10 clamps to remove the No. 5 engine room wire.

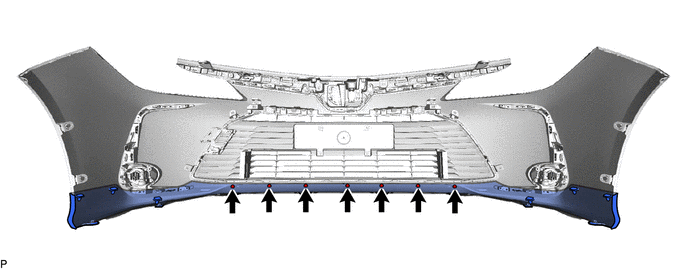

Hide Display 81220 9.REMOVE FOG LIGHT ASSEMBLY LH

Click hereVehicle Exterior>LIGHTING (EXT)>FOG LIGHT ASSEMBLY>REMOVAL202307,999999,_59,_080784,_0393157,RM100000002D1AJ_01_0021,

Hide Display 81210A 10.REMOVE FOG LIGHT ASSEMBLY RH

HINT:: Use the same procedure as for the LH side.

Hide Display 11.REMOVE RADIATOR GRILLE ASSEMBLY (for COROLLA)

a.

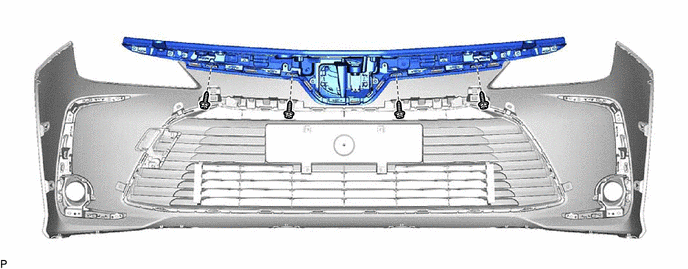

Remove the 4 screws.

b.

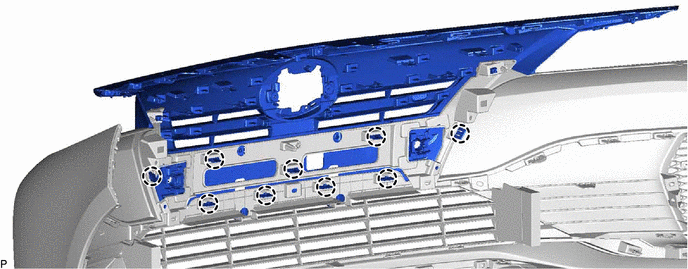

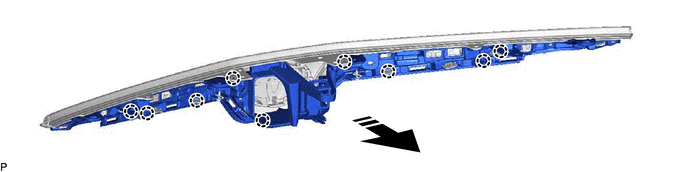

Disengage the 7 claws and 4 guides as shown in the illustration to remove the radiator grille assembly.

0,0 0,0 false

Remove in this Direction

-

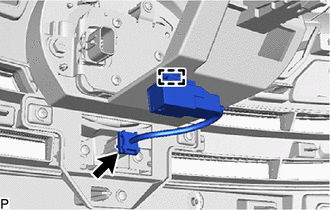

Hide Display 86799D 12.REMOVE FRONT TELEVISION CAMERA WIRE (for ALLION)

a.

w/ Panoramic View Monitor System:

i.

Disconnect the connector.

ii.

Disengage the clamp and remove the front television camera wire.

Hide Display 53111 13.REMOVE RADIATOR GRILLE (for ALLION)

a.

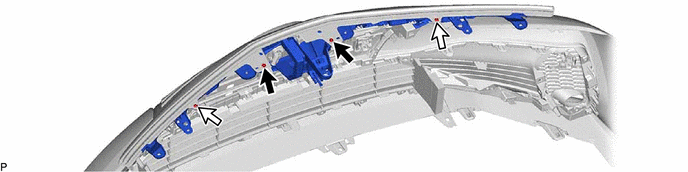

Remove the 2 screws and 2 clips.

0,0 0,0 false

Screw

Clip

b.

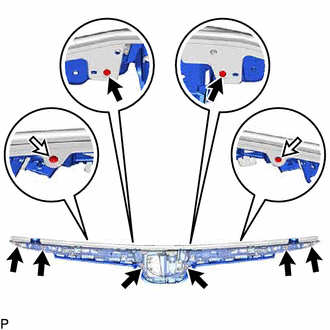

Remove the 9 screws.

c.

Disengage the 8 claws and guide to remove the radiator grille.

Hide Display 86790B 14.REMOVE FRONT TELEVISION CAMERA ASSEMBLY (for ALLION)

a.

w/ Panoramic View Monitor System:

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>TELEVISION CAMERA (for Front)>REMOVAL202307,999999,_56,_080754,_0611029,RM100000002CHWO_01_0020,

Hide Display 53111 15.REMOVE RADIATOR GRILLE (for COROLLA)

a.

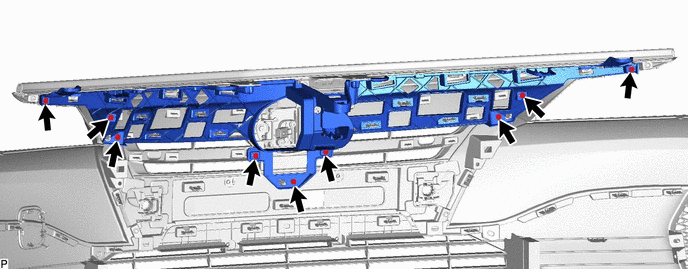

0,0 0,0 false

	Screw
	Clip

Remove the 8 screws and 2 clips.

b.

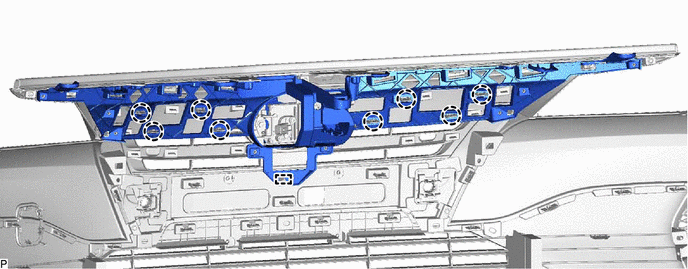

Disengage the 9 claws as shown in the illustration to remove the radiator grille.

0,0 0,0 false

Remove in this Direction

-

Hide Display 88211B 16.REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY

for NR Series Engine: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (for NR Series Engine)>REMOVAL202304,999999,_95,_139716,_0584842,RM1000000029I3D_01_0024,

except NR Series Engine: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>MILLIMETER WAVE RADAR SENSOR (except NR Series Engine)>REMOVAL202307,999999,_95,_139716,_0584197,RM100000002CW5C_01_0030,

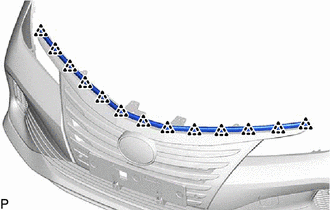

Hide Display 53395J 17.REMOVE HOOD TO FRONT END PANEL SEAL (for COROLLA)

a.

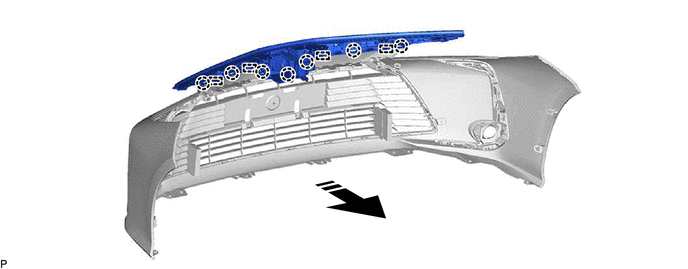

Disengage the 13 clips to remove the hood to front end panel seal.

Hide Display 53395J 18.REMOVE HOOD TO FRONT END PANEL SEAL (for ALLION)

a.

Disengage the 13 clips to remove the hood to front end panel seal.

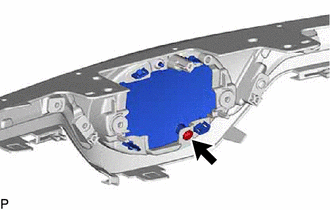

Hide Display 75310A 19.REMOVE RADIATOR GRILLE EMBLEM ASSEMBLY (for COROLLA)

a.

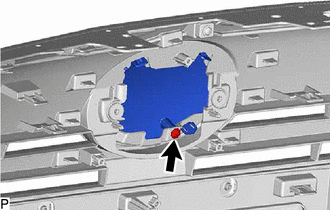

Remove the screw.

b.

0,0 0,0 false

Remove in this Direction

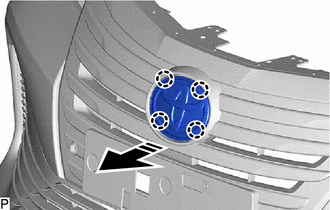

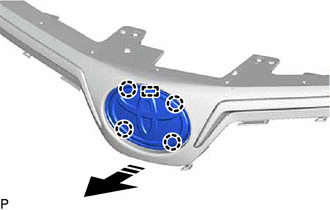

Disengage the 4 claws and guide as shown in the illustration to remove the radiator grille emblem assembly.

Hide Display 75310A 20.REMOVE RADIATOR GRILLE EMBLEM ASSEMBLY (for ALLION)

a.

Remove the screw.

b.

0,0 0,0 false

Remove in this Direction

Disengage the 4 claws as shown in the illustration to remove the radiator grille emblem assembly.

Hide Display 53100A 21.REMOVE RADIATOR GRILLE ASSEMBLY (for ALLION)

a.

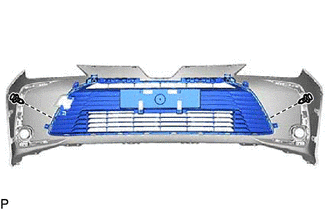

Remove the 2 screws.

b.

Disengage the 9 claws to remove the radiator grille assembly.

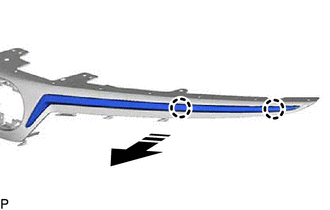

Hide Display 53124C 22.REMOVE UPPER RADIATOR GRILLE MOULDING LH (for COROLLA)

a.

Remove the 5 screws.

b.

0,0 0,0 false

Remove in this Direction

Disengage the 2 claws as shown in the illustration to remove the upper radiator grille moulding LH.

Hide Display 53121F 23.REMOVE UPPER RADIATOR GRILLE MOULDING RH (for COROLLA)

HINT:: Use the same procedure as for the LH side.

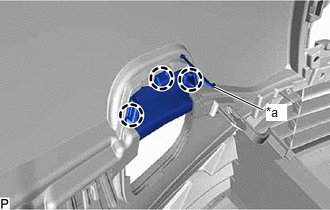

Hide Display 52128C 24.REMOVE FRONT BUMPER HOLE COVER LH (for COROLLA)

a.

1.26,1.427 1.771,1.667 true 1.792,1.594 2.01,1.771 0.219,0.177 10 true *a

*a

Hook

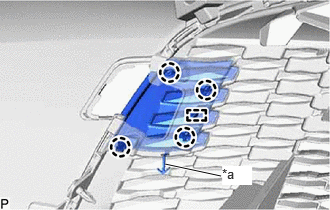

Disengage the 3 claws.

b.

Disengage the hook to remove the front bumper hole cover LH.

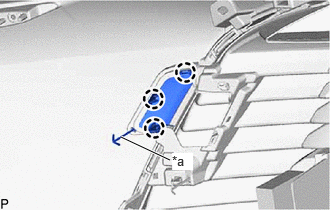

Hide Display 53128E 25.REMOVE LOWER SIDE RADIATOR GRILLE LH (for COROLLA)

a.

for NR Series Engine:

i.

1.542,1.792 1.896,1.896 true 1.917,1.802 2.115,1.99 0.198,0.188 10 true *a

*a

Hook

Disengage the 3 claws and 2 guides.

ii.

Disengage the hook to remove the lower side radiator grille LH.

b.

except NR Series Engine:

i.

1.719,1.708 2.302,1.833 true 2.313,1.729 2.625,1.927 0.313,0.198 10 true *a

*a

Hook

Disengage the 4 claws and guide.

ii.

Disengage the hook to remove the lower side radiator grille LH.

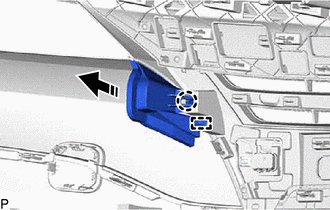

Hide Display 53128E 26.REMOVE LOWER SIDE RADIATOR GRILLE LH (for ALLION)

a.

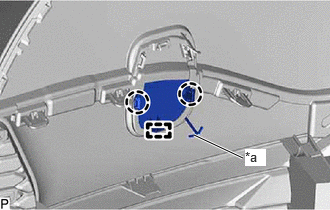

2.021,1.406 2.531,1.646 true 2.552,1.552 2.771,1.729 0.219,0.177 10 true *a

*a

Hook

Disengage the 2 claws and guide.

b.

Disengage the hook to remove the lower side radiator grille LH.

Hide Display 27.REMOVE FRONT BUMPER HOLE COVER LH (for ALLION)

a.

2.229,0.906 2.74,1.146 true 2.771,1.083 2.99,1.26 0.219,0.177 10 true *a

*a

Hook

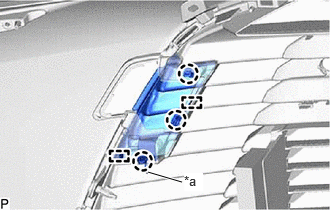

Disengage the 3 claws.

b.

Disengage the hook to remove the front bumper hole cover LH.

Hide Display 52421A 28.REMOVE FRONT BUMPER PAD (for COROLLA)

a.

for NR Series Engine:

i.

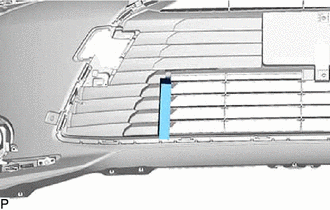

Remove the front bumper pad.

HINT:: Use the same procedure for the RH side and LH side.

Hide Display 53112E 29.REMOVE NO. 1 LOWER RADIATOR GRILLE (for COROLLA)

a.

Remove the 2 clips.

b.

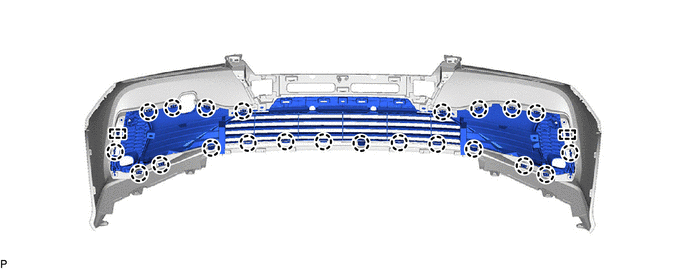

Disengage the 20 claws and 3 guides to remove the No. 1 lower radiator grille.

Hide Display 81482C 30.REMOVE FOG LIGHT COVER LH (for COROLLA)

a.

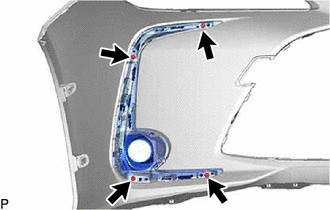

Remove the 4 screws.

b.

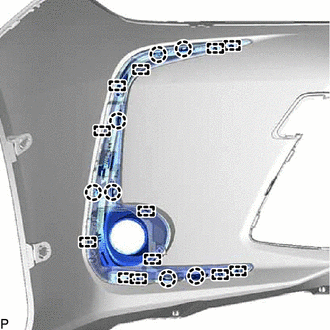

Disengage the 7 claws and 12 guides to remove the fog light mounting bracket with fog light cover LH.

c.

Disengage the claw and 2 guides to remove the fog light cover LH.

Hide Display 81481E 31.REMOVE FOG LIGHT COVER RH (for COROLLA)

HINT:: Use the same procedure as for the LH side.

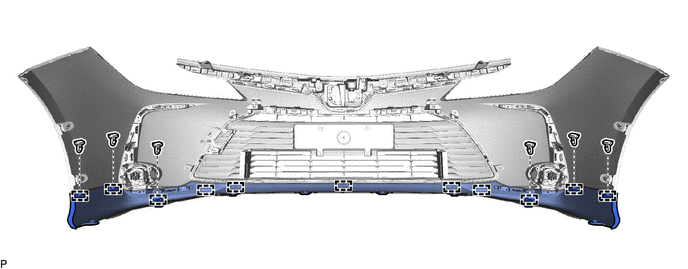

Hide Display 52711 32.REMOVE FRONT BUMPER MOULDING (for ALLION)

a.

Remove the 7 screws.

b.

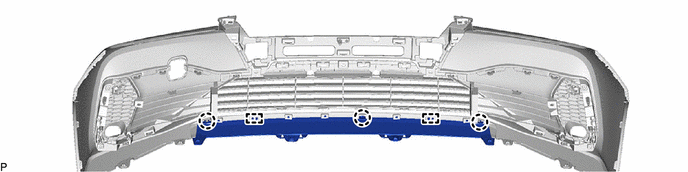

Disengage the 3 claws and 2 guides to remove the front bumper moulding.

Hide Display 53102A 33.REMOVE LOWER RADIATOR GRILLE SUB-ASSEMBLY (for ALLION)

a.

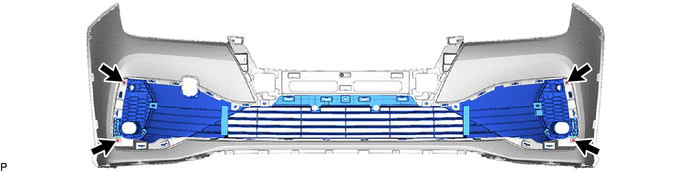

Remove the 4 screws.

b.

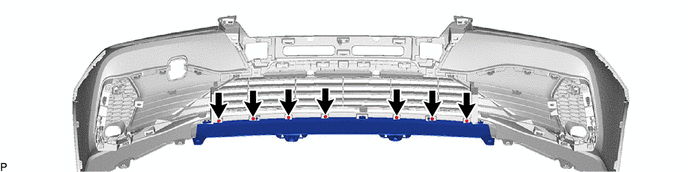

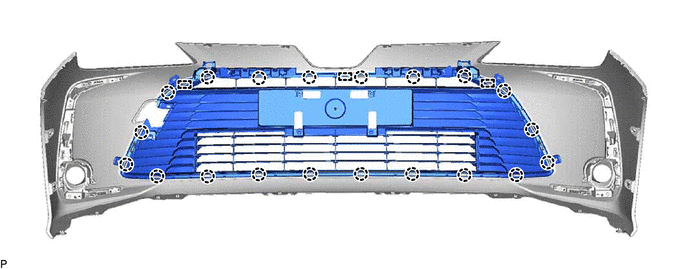

Disengage the 22 claws and 2 guides to remove the lower radiator grille sub-assembly.

Hide Display 47749F 34.REMOVE PIN HOLD CLIP

a.

0,0 0,0 false

Remove in this Direction

Disengage the 4 claws as shown in the illustration to remove the 2 pin hold clips.

HINT:: Use the same procedure for the RH side and LH side.

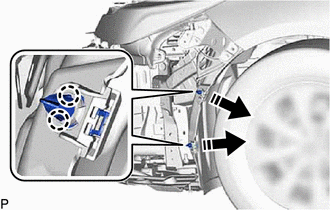

Hide Display 53879H 35.REMOVE FRONT FENDER LINER RETAINER

a.

0,0 0,0 false

Remove in this Direction

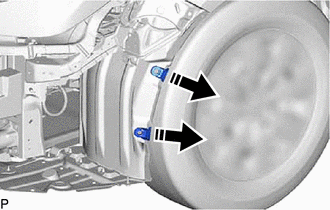

Remove the 2 front fender liner retainers as shown in the illustration.

HINT:: Use the same procedure for the RH side and LH side.

Hide Display 52116A 36.REMOVE FRONT BUMPER SIDE SUPPORT LH

a.

0,0 0,0 false

	Bolt
	Screw

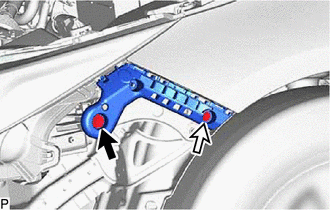

Remove the bolt and screw.

b.

0,0 0,0 false

Remove in this Direction

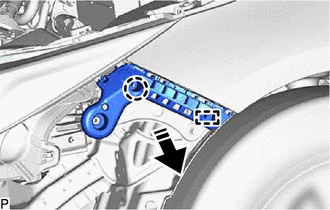

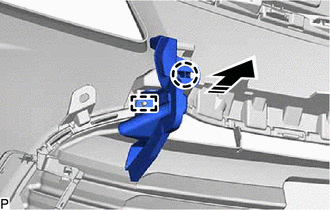

Disengage the claw and guide as shown in the illustration to remove the front bumper side support LH.

Hide Display 52115A 37.REMOVE FRONT BUMPER SIDE SUPPORT RH

HINT:: Use the same procedure as for the LH side.

Hide Display 52527C 38.REMOVE NO. 2 LOWER FRONT BUMPER RETAINER

a.

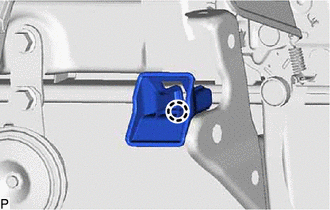

Disengage the claw to remove the No. 2 lower front bumper retainer.

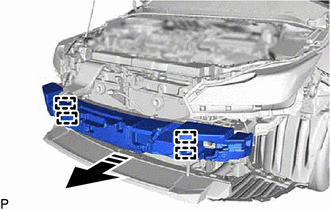

Hide Display 52611 39.REMOVE FRONT BUMPER ENERGY ABSORBER (for COROLLA)

a.

0,0 0,0 false

Remove in this Direction

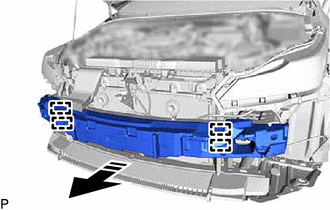

Disengage the 4 guides as shown in the illustration to remove the front bumper energy absorber.

Hide Display 52611 40.REMOVE FRONT BUMPER ENERGY ABSORBER (for ALLION)

a.

0,0 0,0 false

Remove in this Direction

Disengage the 4 guides as shown in the illustration to remove the front bumper energy absorber.

Hide Display 52131A 41.REMOVE FRONT BUMPER REINFORCEMENT (for COROLLA)

a.

Disengage each clamp.

b.

w/ Clip:

i.

Remove the clip.

c.

0,0 0,0 false

Remove in this Direction

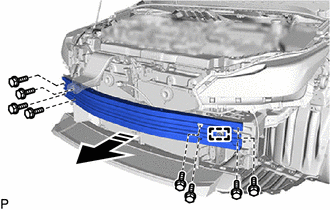

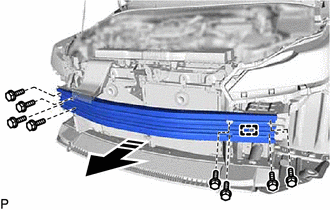

Remove the 8 bolts.

d.

Disengage the guide as shown in the illustration to remove the front bumper reinforcement.

Hide Display 52131A 42.REMOVE FRONT BUMPER REINFORCEMENT (for ALLION)

a.

Disengage each clamp.

b.

0,0 0,0 false

Remove in this Direction

Remove the 8 bolts.

c.

Disengage the guide as shown in the illustration to remove the front bumper reinforcement.

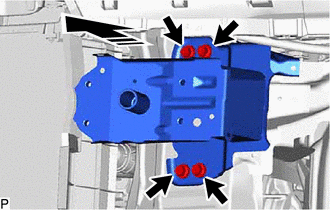

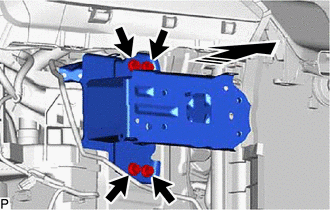

Hide Display 57014A 43.REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH

a.

0,0 0,0 false

Remove in this Direction

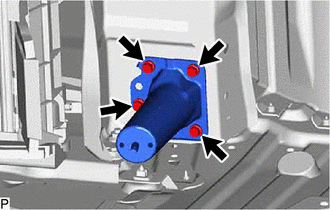

Remove the 4 bolts and front side member bracket sub-assembly LH as shown in the illustration.

Hide Display 57013C 44.REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH

a.

0,0 0,0 false

Remove in this Direction

Remove the 4 bolts and front side member bracket sub-assembly RH as shown in the illustration.

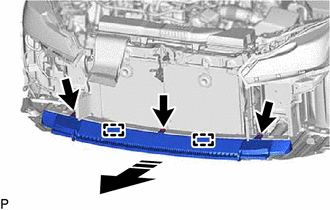

Hide Display 52618 45.REMOVE LOWER FRONT BUMPER ABSORBER (for COROLLA)

a.

0,0 0,0 false

Remove in this Direction

Remove the 3 clips.

b.

Disengage the 2 guides as shown in the illustration to remove the lower front bumper absorber.

Hide Display 52618 46.REMOVE LOWER FRONT BUMPER ABSORBER (for ALLION)

a.

0,0 0,0 false

Remove in this Direction

Remove the 3 clips.

b.

Disengage the 2 guides as shown in the illustration to remove the lower front bumper absorber.

Hide Display 52132A 47.REMOVE NO. 2 FRONT BUMPER REINFORCEMENT

a.

0,0 0,0 false

Remove in this Direction

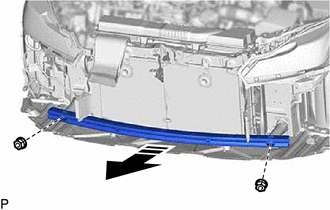

Remove the 2 nuts and No. 2 front bumper reinforcement as shown in the illustration.

Hide Display 52134G 48.REMOVE FRONT BUMPER BRACKET LH

a.

Remove the 4 bolts and front bumper bracket LH.

Hide Display 52133F 49.REMOVE FRONT BUMPER BRACKET RH

HINT:: Use the same procedure as for the LH side.
