EXTERIOR PANELS / TRIM  NAME PLATE(for GTMC Made)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:

When installing the name plates, heat the vehicle body, luggage compartment door panel and name plates using a heat light.


Heating Temperature
Item Temperature
Vehicle Body 40 to 60°C (104 to 140°F)
Name Plate 20 to 30°C (68 to 86°F)

CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body, luggage compartment door panel or name plate excessively.


PROCEDURE

Hide 75374 1.INSTALL SIDE PANEL EMBLEM (for HV Model)

a.

Clean the vehicle body surface.

i.

Using a heat light, heat the vehicle body surface.


ii.

Remove any remaining double-sided tape from the vehicle body.


iii.

Wipe off any tape adhesive residue with cleaner.



b.

Using a heat light, heat the vehicle body and a new side panel emblem.


c.

Remove the release paper from the side panel emblem.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



d.

for LH Side:

i.

Install the side panel emblem as shown in the illustration.

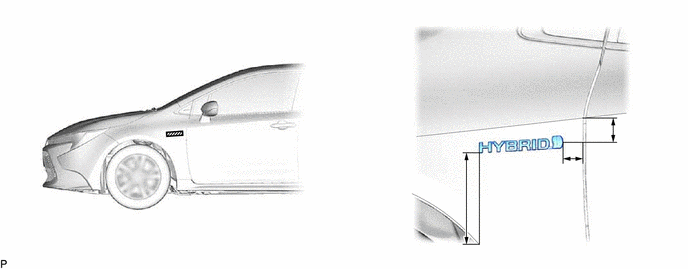

B545565
4.708,1.906 4.865,2.104 0.156,0.198 10 false A 5.927,1.688 6.083,1.885 0.156,0.198 10 false B 6.448,1.271 6.604,1.469 0.156,0.198 10 false C

Standard Measurement:
Area Measurement Area Measurement
A 174.2 mm (6.86 in.) B 36.1 mm (1.42 in.)
C 42.3 mm (1.67 in.) - -


HINT:

Press the side panel emblem firmly to install it.




e.

for RH Side:

i.

Install the side panel emblem as shown in the illustration.

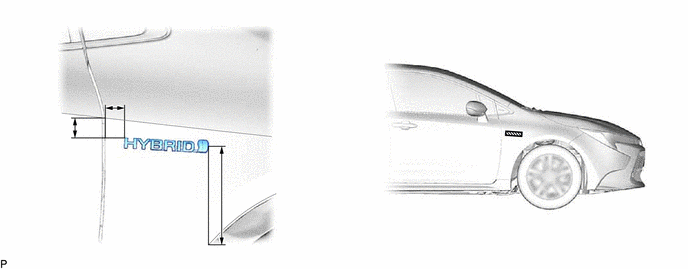

B545566
0.604,1.24 0.76,1.438 0.156,0.198 10 false A 1.146,0.917 1.302,1.115 0.156,0.198 10 false B 2.344,1.896 2.5,2.094 0.156,0.198 10 false C

Standard Measurement:
Area Measurement Area Measurement
A 36.1 mm (1.42 in.) B 35.5 mm (1.40 in.)
C 186.1 mm (7.33 in.) - -


HINT:

Press the side panel emblem firmly to install it.




Hide 75443A 2.INSTALL NO. 3 LUGGAGE COMPARTMENT DOOR PLATE (for HV Model)

a.

Clean the luggage compartment door panel surface.

i.

Using a heat light, heat the luggage compartment door panel surface.


ii.

Remove any remaining double-sided tape from the luggage compartment door panel.


iii.

Wipe off any tape adhesive residue with cleaner.



b.

Using a heat light, heat the luggage compartment door panel and a new No. 3 luggage compartment door name plate.


c.

Remove the release paper from the No. 3 luggage compartment door name plate.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



d.

Install the No. 3 luggage compartment door name plate as shown in the illustration.

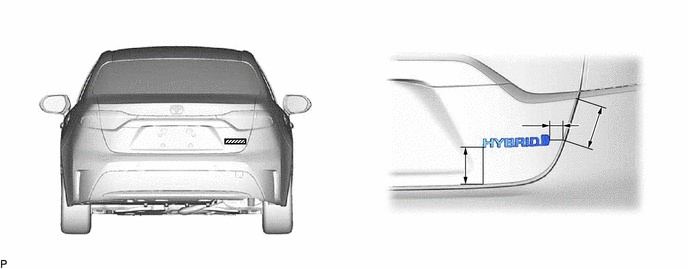

B545570
5.646,1.844 5.802,2.229 true 6.25,1.281 6.406,1.479 0.156,0.198 10 false A 5.75,1.115 5.906,1.313 0.156,0.198 10 false B 4.688,1.615 4.844,1.813 0.156,0.198 10 false C 5.823,2.208 6.135,2.406 0.313,0.198 10 false *a
*a Profile of Luggage Compartment Door Panel - -


Standard Measurement:
Area Measurement Area Measurement
A 78.8 mm (3.10 in.) B 32.4 mm (1.28 in.)
C 73.2 mm (2.88 in.) - -

HINT:

Press the No. 3 luggage compartment door name plate firmly to install it.



Hide 75446 3.INSTALL NO. 6 LUGGAGE COMPARTMENT DOOR NAME PLATE (for LEVIN GT)

a.

Clean the luggage compartment door outside garnish surface.

i.

Remove any remaining double-sided tape from the luggage compartment door panel.


ii.

Wipe off any tape adhesive residue with cleaner.



b.

Using a heat light, heat a new No. 6 luggage compartment door name plate.


c.

Remove the release paper from the No. 6 luggage compartment door name plate.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



d.

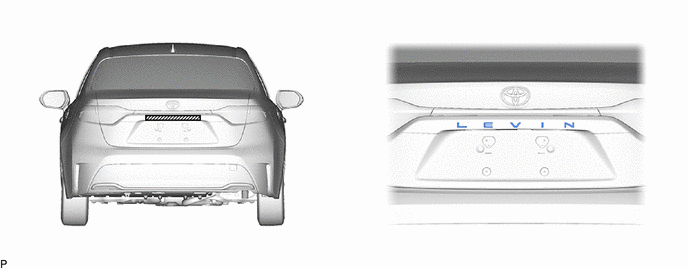

Install the No. 6 luggage compartment door name plate as shown in the illustration.

B620031

HINT:

Press the No. 6 luggage compartment door name plate firmly to install it.



Hide 75445 4.INSTALL NO. 5 LUGGAGE COMPARTMENT DOOR NAME PLATE (for LEVIN GT)

a.

for Gasoline Model:

i.

Clean the luggage compartment door panel surface.

1.

Using a heat light, heat the luggage compartment door panel surface.

2.

Remove any remaining double-sided tape from the luggage compartment door panel.

3.

Wipe off any tape adhesive residue with cleaner.



ii.

Using a heat light, heat the luggage compartment door panel and a new No. 5 luggage compartment door name plate.


iii.

Remove the release paper from the No. 5 luggage compartment door name plate.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



iv.

Install the No. 5 luggage compartment door name plate as shown in the illustration.

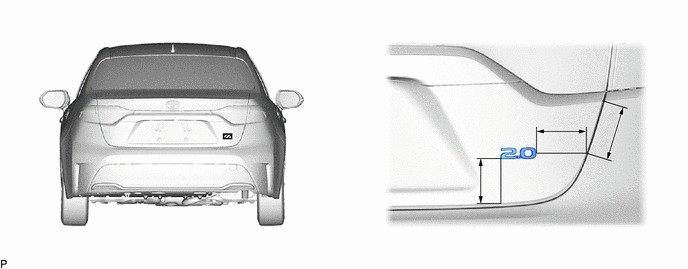

B620028
6.094,2.406 5.865,2.021 false 6.115,2.427 6.344,2.646 0.229,0.219 10 false *a 6.24,1.26 6.396,1.458 0.156,0.198 10 false A 5.719,1.083 5.875,1.281 0.156,0.198 10 false B 4.865,1.781 5.021,1.979 0.156,0.198 10 false C
*a Profile of Luggage Compartment Door Panel - -


Standard Measurement:
Area Measurement Area Measurement
A 84.0 mm (3.31 in.) B 90.1 mm (3.55 in.)
C 71.7 mm (2.82 in.) - -


HINT:

Press the No. 5 luggage compartment door name plate firmly to install it.




Hide 75447 5.INSTALL NO. 7 LUGGAGE COMPARTMENT DOOR NAME PLATE (for LEVIN)

a.

for NR Series Engine:

i.

Clean the luggage compartment door panel surface.

1.

Using a heat light, heat the luggage compartment door panel surface.

2.

Remove any remaining double-sided tape from the luggage compartment door panel.

3.

Wipe off any tape adhesive residue with cleaner.



ii.

Using a heat light, heat the luggage compartment door panel and a new No. 7 luggage compartment door name plate.


iii.

Remove the release paper from the No. 7 luggage compartment door name plate.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



iv.

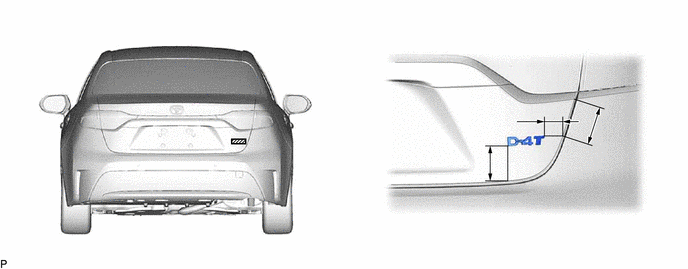

Install the No. 7 luggage compartment door name plate as shown in the illustration.

B545569
5.875,2.271 5.635,1.823 false 5.885,2.281 6.115,2.5 0.229,0.219 10 false *a 6.24,1.26 6.396,1.458 0.156,0.198 10 false A 5.719,1.083 5.875,1.281 0.156,0.198 10 false B 4.958,1.594 5.115,1.792 0.156,0.198 10 false C
*a Profile of Luggage Compartment Door Panel - -


Standard Measurement:
Area Measurement Area Measurement
A 72.0 mm (2.83 in.) B 44.2 mm (1.74 in.)
C 70.2 mm (2.76 in.) - -


HINT:

Press the No. 7 luggage compartment door name plate firmly to install it.




Hide 75441A 6.INSTALL NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE

a.

Clean the luggage compartment door panel surface.

i.

Using a heat light, heat the luggage compartment door panel surface.


ii.

Remove any remaining double-sided tape from the luggage compartment door panel.


iii.

Wipe off any tape adhesive residue with cleaner.



b.

Using a heat light, heat the luggage compartment door panel and a new No. 1 luggage compartment door name plate.


c.

Remove the release paper from the No. 1 luggage compartment door name plate.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



d.

Install the No. 1 luggage compartment door name plate as shown in the illustration.

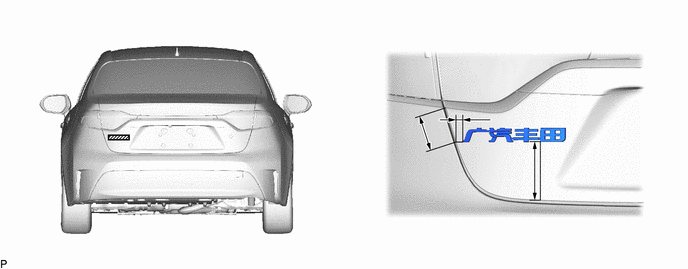

B682417
4.833,2.302 4.969,1.969 true 4.26,1.333 4.417,1.531 0.156,0.198 10 false A 4.74,0.99 4.896,1.167 0.156,0.177 10 true B 5.396,1.667 5.552,1.865 0.156,0.198 10 false C 4.76,2.313 5.073,2.51 0.313,0.198 10 false *a
*a Profile of Luggage Compartment Door Panel - -


Standard Measurement:
Area Measurement Area Measurement
A 55.4 mm (2.18 in.) B 13.1 mm (0.516 in.)
C 105.7 mm (4.16 in.) - -


HINT:

Press the No. 1 luggage compartment door name plate firmly to install it.



Hide 75442 7.INSTALL NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE (for LEVIN)

a.

Clean the luggage compartment door panel surface.

i.

Using a heat light, heat the luggage compartment door panel surface.


ii.

Remove any remaining double-sided tape from the luggage compartment door panel.


iii.

Wipe off any tape adhesive residue with cleaner.



b.

Using a heat light, heat the luggage compartment door panel and a new No. 2 luggage compartment door name plate.


c.

Remove the release paper from the No. 2 luggage compartment door name plate.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



d.

Install the No. 2 luggage compartment door name plate as shown in the illustration.

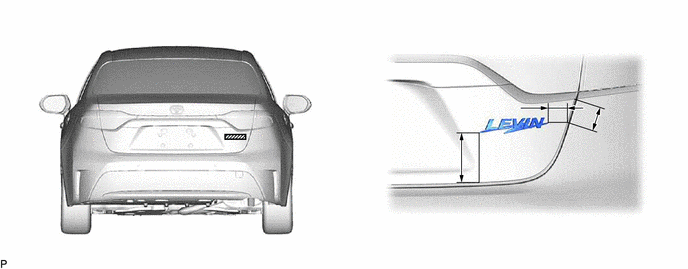

B545568
5.75,2.156 5.563,1.854 false 5.76,2.135 6,2.385 0.24,0.25 10 false *a 6.271,1.167 6.542,1.5 0.271,0.333 10 false A 5.75,0.917 6.021,1.25 0.271,0.333 10 false B 4.625,1.552 4.896,1.885 0.271,0.333 10 false C
*a Profile of Luggage Compartment Door Panel - -


Standard Measurement:
Area Measurement Area Measurement
A 43.8 mm (1.72 in.) B 45.4 mm (1.79 in.)
C 100.3 mm (3.95 in.) - -


HINT:

Press the No. 2 luggage compartment door name plate firmly to install it.



Hide 75442 8.INSTALL NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE (for LEVIN GT)

a.

Clean the luggage compartment door panel surface.

i.

Using a heat light, heat the luggage compartment door panel surface.


ii.

Remove any remaining double-sided tape from the luggage compartment door panel.


iii.

Wipe off any tape adhesive residue with cleaner.



b.

Using a heat light, heat the luggage compartment door panel and a new No. 2 luggage compartment door name plate.


c.

Remove the release paper from the No. 2 luggage compartment door name plate.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



d.

Install the No. 2 luggage compartment door name plate as shown in the illustration.

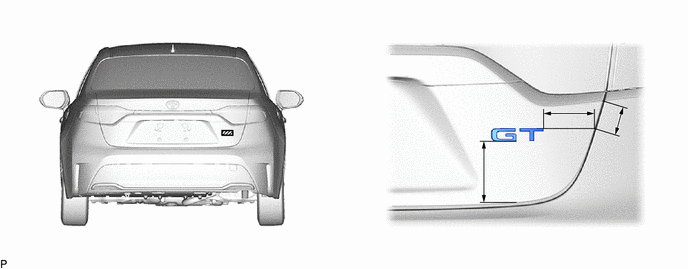

B620029
6.052,2.365 5.729,2.094 false 5.948,2.365 6.188,2.615 0.24,0.25 10 true *a 6.51,1.25 6.781,1.583 0.271,0.333 10 false A 5.865,1.021 6.135,1.354 0.271,0.333 10 false B 4.875,1.708 5.146,2.042 0.271,0.333 10 false C
*a Profile of Luggage Compartment Door Panel - -


Standard Measurement:
Area Measurement Area Measurement
A 41.2 mm (1.62 in.) B 93.2 mm (3.67 in.)
C 111.6 mm (4.39 in.) - -

HINT:

Press the No. 2 luggage compartment door name plate firmly to install it.



Hide 75431 9.INSTALL LUGGAGE COMPARTMENT DOOR EMBLEM

a.

Clean the luggage compartment door panel surface.

i.

Using a heat light, heat the luggage compartment door panel surface.


ii.

Remove any remaining double-sided tape from the luggage compartment door panel.


iii.

Wipe off any tape adhesive residue with cleaner.



b.

Using a heat light, heat the luggage compartment door panel and a new luggage compartment door emblem.


c.

Remove the release paper from the luggage compartment door emblem.

HINT:

After removing the release paper, keep the exposed adhesive free from foreign matter.



d.

Engage the 2 pins and install the luggage compartment door emblem as shown in the illustration.

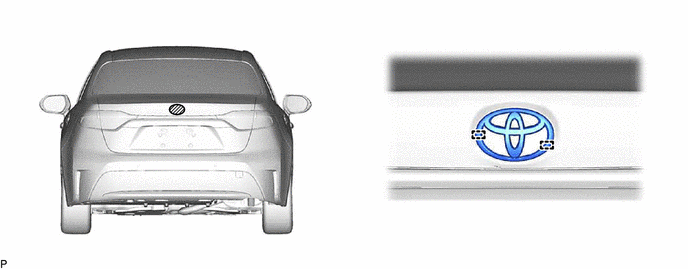

B545571

HINT:

Press the luggage compartment door emblem firmly to install it.
