RM3660EC _59 Vehicle Exterior _080736 EXTERIOR PANELS / TRIM _0392552 NAME PLATE(for TFTM Made) A

EXTERIOR PANELS / TRIM  NAME PLATE(for TFTM Made)  REMOVAL


CAUTION / NOTICE / HINT

HINT:

When removing the name plates, heat the vehicle body, luggage compartment door panel and name plates using a heat light.


Heating Temperature
Item Temperature
Vehicle Body 40 to 60°C (104 to 140°F)
Name Plate 20 to 30°C (68 to 86°F)

CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the vehicle body, luggage compartment door panel or name plate excessively.


PROCEDURE

Hide 75741E 1.REMOVE SYMBOL EMBLEM

a.

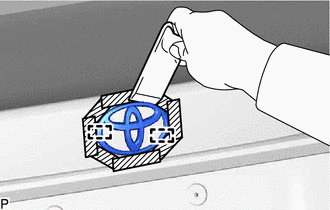

B545211
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the symbol emblem as shown in the illustration.


b.

Using a moulding remover, separate the double-sided tape and disengage the 2 pins to remove the symbol emblem.

NOTICE:

Be careful not to damage the luggage compartment door panel.



Hide 75442 2.REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE (for COROLLA)

a.

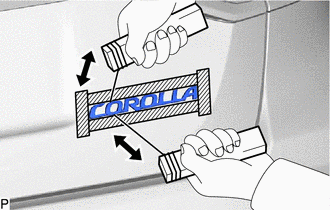

B545213
2.115,0.219 2.417,0.292 true 1.208,0.813 1.958,0.698 true 2.458,0.229 2.698,0.427 0.24,0.198 10 true *a 1.979,0.604 2.198,0.792 0.219,0.188 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Apply protective tape around the No. 2 luggage compartment door name plate as shown in the illustration.


b.

Insert a piano wire between the luggage compartment door panel and No. 2 luggage compartment door name plate.


c.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.


d.

Pull the piano wire and cut the double-sided tape that holds the No. 2 luggage compartment door name plate to the luggage compartment door panel and remove it.

NOTICE:

Be careful not to damage the luggage compartment door panel.



Hide 75442 3.REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE (for ALLION)

a.

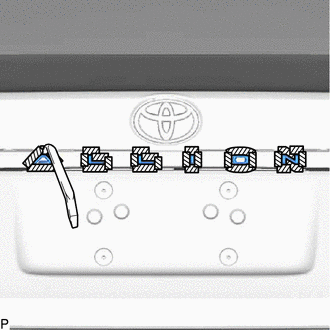

B612259
0,0 0,0 false
V100155

Protective Tape


Apply protective tape around the No. 2 luggage compartment door name plate as shown in the illustration.


b.

Using a moulding remover, separate the double-sided tape to remove the No. 2 luggage compartment door name plate as shown in the illustration.

NOTICE:

Be careful not to damage the luggage compartment door panel surface and garnish surface.



Hide 75444 4.REMOVE NO. 4 LUGGAGE COMPARTMENT DOOR PLATE

a.

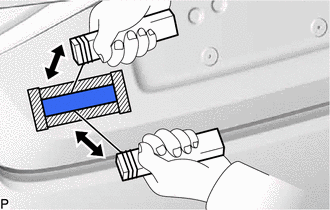

B681614
0.823,0.75 1.51,0.75 true 1.844,0.292 2.115,0.292 true 1.542,0.656 1.76,0.844 0.219,0.188 10 true *b 2.135,0.198 2.354,0.385 0.219,0.188 10 true *a
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Apply protective tape around the No. 4 luggage compartment door plate as shown in the illustration.


b.

Insert a piano wire between the vehicle body and No. 4 luggage compartment door plate.


c.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.


d.

Pull the piano wire to separate the double-sided tape that holds the No. 4 luggage compartment door plate to the luggage compartment door panel and remove it.

NOTICE:

Be careful not to damage the luggage compartment door panel.



Hide 75445 5.REMOVE NO. 5 LUGGAGE COMPARTMENT DOOR NAME PLATE (for Gasoline Model)

a.

for ALLION:

i.

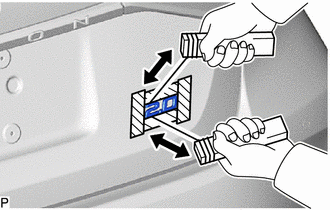

B611324
1.865,0.708 2.146,0.865 true 2.448,0.229 2.635,0.229 true 2.833,0.552 2.969,0.75 true 2.906,0.781 3.146,1 0.24,0.219 10 true *a 2.188,0.781 2.417,0.99 0.229,0.208 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Apply protective tape around the No. 5 luggage compartment door plate as shown in the illustration.


ii.

Insert a piano wire between the vehicle body and No. 5 luggage compartment door plate.


iii.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.


iv.

Pull the piano wire to separate the double-sided tape that holds the No. 5 luggage compartment door plate to the luggage compartment door panel and remove it.

NOTICE:

Be careful not to damage the luggage compartment door panel.




Hide 75447 6.REMOVE NO. 7 LUGGAGE COMPARTMENT DOOR NAME PLATE (for COROLLA)

a.

for NR Series Engine:

i.

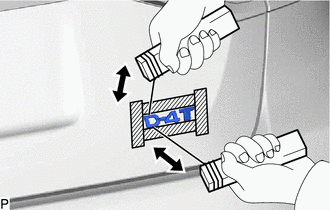

B545214
1.583,0.917 2.021,0.844 true 2.448,0.229 2.635,0.229 true 2.656,0.135 2.896,0.354 0.24,0.219 10 true *a 2.063,0.74 2.292,0.948 0.229,0.208 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Apply protective tape around the No. 7 luggage compartment door name plate as shown in the illustration.


ii.

Insert a piano wire between the luggage compartment door panel and No. 7 luggage compartment door name plate.


iii.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.


iv.

Pull the piano wire and cut the double-sided tape that holds the No. 7 luggage compartment door name plate to the luggage compartment door panel and remove it.

NOTICE:

Be careful not to damage the luggage compartment door panel.




Hide 75443A 7.REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR PLATE (for HV Model)

a.

for COROLLA:

i.

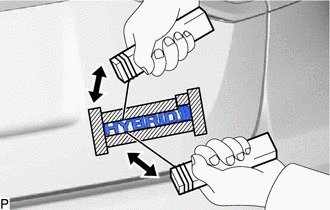

B545216
2.188,0.271 2.542,0.333 true 1.313,0.969 2.531,0.646 true 2.563,0.208 2.792,0.417 0.229,0.208 10 true *a 2.615,0.521 2.844,0.729 0.229,0.208 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Apply protective tape around the No. 3 luggage compartment door plate as shown in the illustration.


ii.

Insert a piano wire between the vehicle body and No. 3 luggage compartment door plate.


iii.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.


iv.

Pull the piano wire to separate the double-sided tape that holds the No. 3 luggage compartment door plate to the luggage compartment door panel and remove it.

NOTICE:

Be careful not to damage the luggage compartment door panel.




Hide 75445 8.REMOVE NO. 5 LUGGAGE COMPARTMENT DOOR PLATE (for HV Model)

a.

for ALLION:

i.
B545216
2.188,0.271 2.542,0.333 true 1.313,0.969 2.531,0.646 true 2.563,0.208 2.792,0.417 0.229,0.208 10 true *a 2.615,0.521 2.844,0.729 0.229,0.208 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Apply protective tape around the No. 5 luggage compartment door plate as shown in the illustration.


ii.

Insert a piano wire between the vehicle body and No. 5 luggage compartment door plate.


iii.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.


iv.

Pull the piano wire to separate the double-sided tape that holds the No. 5 luggage compartment door plate to the luggage compartment door panel and remove it.

NOTICE:

Be careful not to damage the luggage compartment door panel.




Hide 75374 9.REMOVE SIDE PANEL EMBLEM (for HV Model)

HINT:

Use the same procedure for the RH side and LH side.


a.

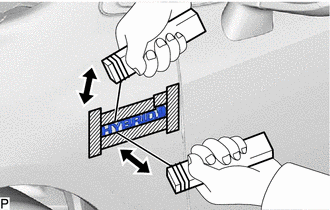

B545215
2.594,0.302 2.115,0.25 true 2.49,1.115 1.573,1.583 true 2.615,0.198 2.823,0.385 0.208,0.188 10 true *a 2.51,0.99 2.74,1.167 0.229,0.177 10 true *b
*a Wooden Block
*b Piano Wire
V100155

Protective Tape


Apply protective tape around the side panel emblem as shown in the illustration.


b.

Insert a piano wire between the vehicle body and side panel emblem.


c.

Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.


d.

Pull the piano wire and cut the double-sided tape that holds the side panel emblem to the front fender panel and remove it.

NOTICE:

Be careful not to damage the front fender panel.
