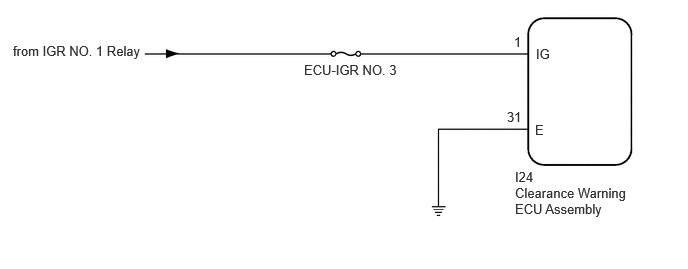

This circuit provides power to operate the clearance warning ECU assembly.
Inspect the fuses for circuits related to this system before performing the following procedure.
Disconnect the I24 clearance warning ECU assembly connector.

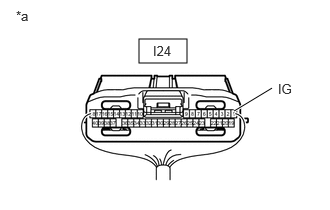

| *a | Component without harness connected
(to Clearance Warning ECU Assembly) |
Measure the voltage according to the value(s) in the table below.
| Tester Connection | Switch Condition | Specified Condition |
|---|---|---|
| I24-1 (IG) - Body ground | Ignition switch ON | 11 to 14 V |
| I24-1 (IG) - Body ground | Ignition switch off | Below 1 V |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| I24-31 (E) - Body ground | Always | Below 1 Ω |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
