RM3660EC _58 Vehicle Interior _080733 HEATING / AIR CONDITIONING _0393738 AMBIENT TEMPERATURE SENSOR A

HEATING / AIR CONDITIONING AMBIENT TEMPERATURE SENSOR REMOVAL

PROCEDURE

Hide Display 53289A 1.REMOVE RADIATOR SUPPORT OPENING COVER (for TFTM Made)

for Gasoline Model:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>REMOVAL202304,202307,_59,_080736,_0392548,RM100000002AMO3_01_0020,202307,999999,_59,_080736,_0392548,RM100000002CH8T_01_0020,

for HV Model:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for TFTM Made)>REMOVAL202304,202307,_59,_080736,_0392548,RM100000002AMO3_01_0035,202307,999999,_59,_080736,_0392548,RM100000002CH8T_01_0035,

Hide Display 53289A 2.REMOVE RADIATOR SUPPORT OPENING COVER (for GTMC Made)

for Gasoline Model:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REMOVAL202304,202307,_59,_080736,_0392547,RM100000002AXCM_01_0020,202307,999999,_59,_080736,_0392547,RM100000002CHFA_01_0020,

for HV Model:

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>FRONT BUMPER (for GTMC Made)>REMOVAL202304,202307,_59,_080736,_0392547,RM100000002AXCM_01_0036,202307,999999,_59,_080736,_0392547,RM100000002CHFA_01_0036,

Hide Display 88790B 3.REMOVE THERMISTOR ASSEMBLY

a.

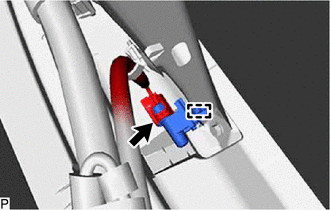

E399440

Disengage the clamp.

b.

Disconnect the connector to remove the thermistor assembly.
