HEATING / AIR CONDITIONING  SOLAR SENSOR  COMPONENTS

ILLUSTRATION

0.375,1.354 0.708,0.771 0.708,0.771 0.958,0.771 false 2.104,1.927 2.104,1.5 false 5.823,0.26 6.073,0.26 6.073,0.26 6.49,0.51 false 4.583,1.667 4.583,1.167 false 5.438,2.333 5.938,2.333 false 4.417,2.948 4.833,2.948 false 0.552,3.917 0.969,3.917 false 0.417,5.354 0.917,5.354 false 3.583,5.115 3.583,4.615 false 5.833,4.573 5.833,4.156 false 4.885,2.875 5.198,3.031 0.313,0.156 10 false *1 1.021,3.844 1.333,4 0.313,0.156 10 false *2 5.25,2.26 5.563,2.417 0.313,0.156 10 false *3 2.031,1.958 2.344,2.115 0.313,0.156 10 false *4 4.521,1.698 4.833,1.854 0.313,0.156 10 false *5 0.208,5.271 0.521,5.427 0.313,0.156 10 false *6 5.771,4.594 6.083,4.75 0.313,0.156 10 false *7 3.521,5.135 3.833,5.292 0.313,0.156 10 false *8 1.188,0.698 1.5,0.854 0.313,0.156 10 false *9 1.021,0.677 1.188,0.917 0.167,0.24 10 false ● 1.552,4.26 2.01,4.458 0.458,0.198 10 false x 2 0.333,1.458 0.792,1.656 0.458,0.198 10 false x 2 6.406,0.667 6.865,0.865 0.458,0.198 10 false x 2 5.438,0.167 5.604,0.406 0.167,0.24 10 false ● 5.615,0.177 5.927,0.333 0.313,0.156 10 false *9 0.281,0.198 0.656,0.438 0.375,0.24 12 false *A

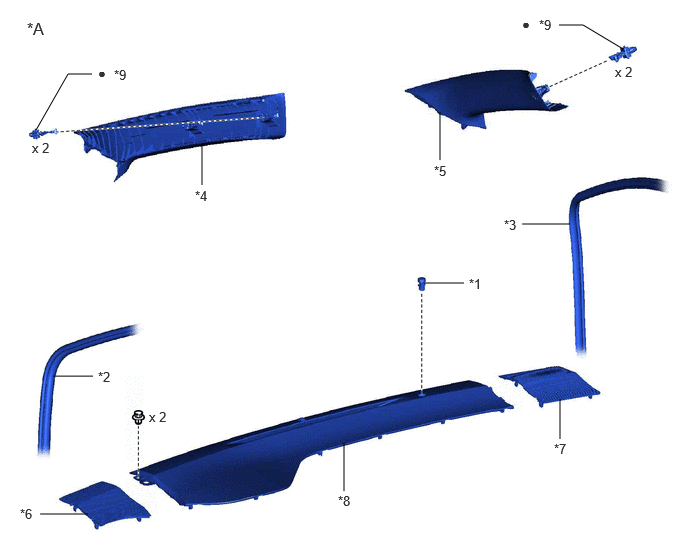

*A	w/ Upper Instrument Panel	-	-
*1	AUTOMATIC LIGHT CONTROL SENSOR	*2	FRONT DOOR OPENING TRIM WEATHERSTRIP LH
*3	FRONT DOOR OPENING TRIM WEATHERSTRIP RH	*4	FRONT PILLAR GARNISH LH
*5	FRONT PILLAR GARNISH RH	*6	NO. 1 INSTRUMENT PANEL SPEAKER PANEL
*7	NO. 2 INSTRUMENT PANEL SPEAKER PANEL	*8	UPPER INSTRUMENT PANEL ASSEMBLY
*9	FRONT PILLAR GARNISH CLIP	-	-
●	Non-reusable part	-	-

ILLUSTRATION

3.281,0.469 3.802,0.469 false 3.104,0.385 3.417,0.583 0.313,0.198 10 false *1 0.323,0.24 0.698,0.479 0.375,0.24 12 false *A

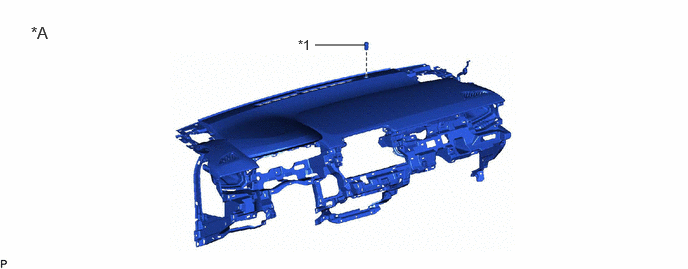

*A	w/o Upper Instrument Panel	-	-
*1	AUTOMATIC LIGHT CONTROL SENSOR	-	-
