AUDIO / VIDEO  FRONT DOOR SPEAKER  INSTALLATION

86160 1.INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

NOTICE:

Do not touch the speaker cone.

a.

Connect the connector.

b.

Engage the 2 guides to temporarily install the front No. 1 speaker assembly.

c.

Install the front No. 1 speaker assembly with the 3 screws.

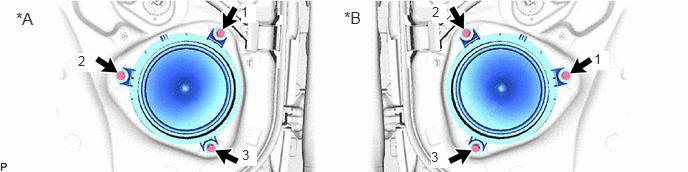

0.167,0.094 0.5,0.333 0.333,0.24 12 false *A 3.583,0.083 3.927,0.417 0.344,0.333 12 false *B 6.188,0.531 6.344,0.729 0.156,0.198 10 true 1 4.5,0.042 4.656,0.24 0.156,0.198 10 true 2 4.49,1.552 4.646,1.75 0.156,0.198 10 true 3 2.51,0.042 2.667,0.24 0.156,0.198 10 true 1 0.813,0.552 0.969,0.75 0.156,0.198 10 true 2 2.521,1.531 2.677,1.729 0.156,0.198 10 true 3

*A

for LH Side

*B

for RH Side

HINT:

Install the screws in the order shown in the illustration.

67602 2.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

3.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

4.INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

74640E 5.INSTALL FRONT DOOR ASSIST GRIP ASSEMBLY

69284F 6.INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG

7.INSPECT POWER WINDOW OPERATION
