RM3660EC _59 Vehicle Exterior _080768 HORN _0392805 HORN A

HORN HORN REMOVAL

PROCEDURE

Hide Display 53289A 1.REMOVE RADIATOR SUPPORT OPENING COVER (for TFTM Made)

for Gasoline Model:

for HV Model:

Hide Display 53289A 2.REMOVE RADIATOR SUPPORT OPENING COVER (for GTMC Made)

for Gasoline Model:

for HV Model:

Hide Display 86510 3.REMOVE HIGH PITCHED HORN ASSEMBLY

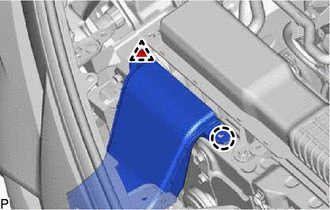

for NR Series Engine:

Remove the clip.

ii.

Disengage the claw to separate the inlet No. 3 air cleaner.

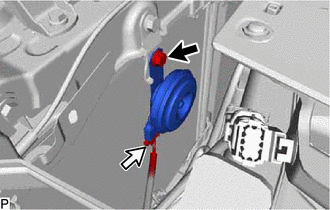

w/o Bracket:

Remove the bolt.

ii.

Disconnect the connector to remove the high pitched horn assembly.

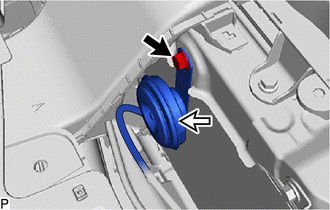

w/ Bracket:

Remove the bolt.

ii.

Disconnect the connector to remove the high pitched horn assembly.

Hide Display 86520 4.REMOVE LOW PITCHED HORN ASSEMBLY

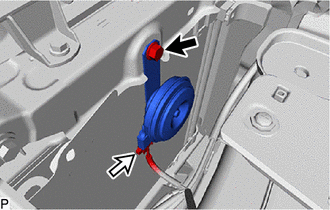

w/o Bracket:

Remove the bolt.

ii.

Disconnect the connector to remove the low pitched horn assembly.

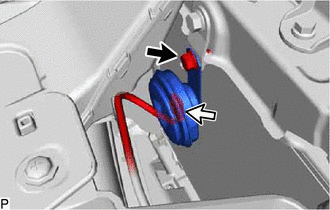

w/ Bracket:

Remove the bolt.

ii.

Disconnect the connector to remove the low pitched horn assembly.
