LIGHTING (EXT)  HAZARD WARNING SWITCH  INSTALLATION

84330 1.INSTALL HAZARD WARNING SIGNAL SWITCH ASSEMBLY

a.

0,0 0,0 false

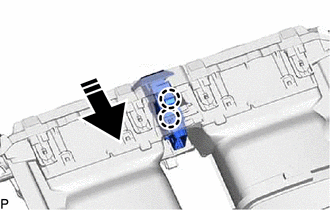

Install in this Direction

Engage the 2 claws to install the hazard warning signal switch assembly as shown in the illustration.

55670A 2.INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY (for TFTM Made)

55470 3.INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY (for TFTM Made)

55318F 4.INSTALL NO. 2 INSTRUMENT SIDE PANEL (for TFTM Made)

55670A 5.INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY (for GTMC Made)

55900 6.INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Electrical Control Type)

7.INSTALL CENTER INSTRUMENT PANEL SAFETY PAD RETAINER WITH HEATER CONTROL (for Mechanical Control Type)

8.INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Mechanical Control Type)

55405B 9.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (except 10.25 Inch Display)

55405B 10.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 10.25 Inch Display)
