LIGHTING (EXT) HAZARD WARNING SWITCH INSPECTION
PROCEDURE
84330
1.INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY
1.25,1.802 1.417,1.219
true
0.948,1.802 1.198,1.219
true
2.167,1.802 2,1.219
true
2.417,1.802 2.167,1.219
true
0.167,0.177 0.479,0.333
0.313,0.156
10
false
*a
0.833,1.833 1.448,2.031
0.615,0.198
10
false
ILL+
1.208,1.833 1.667,2.031
0.458,0.198
10
false
TB
2.167,1.833 2.323,2.031
0.156,0.198
10
false
E
2.385,1.833 3,2.031
0.615,0.198
10
false
ILL-

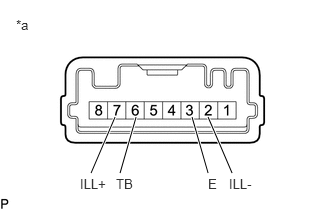

| *a | Component without harness connected
(Hazard Warning Signal Switch Assembly) |
a.
Resistance Check
i.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 6 (TB) - 3 (E) Hazard warning switch off 10 kΩ or higher Hazard warning switch on Below 50 Ω
If the result is not as specified, replace the hazard warning signal switch assembly.
b.
Illumination Inspection
i.
Apply auxiliary battery voltage to the hazard warning signal switch assembly and check that the switch illuminates.
- OK:
Measurement Condition Condition Specified Condition Auxiliary battery positive (+) → Terminal 7 (ILL+)
Auxiliary battery negative (-) → Terminal 2 (ILL-)Always Switch illumination illuminates
If the result is not as specified, replace the hazard warning signal switch assembly.
