BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  FRONT SPEED SENSOR  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

·

The front speed sensor rotor is a component of the front axle hub sub-assembly. If the front speed sensor rotor is malfunctioning, replace the front axle hub sub-assembly.



PROCEDURE

Hide 89543 1.INSTALL FRONT SPEED SENSOR

NOTICE:

Do not twist the front speed sensor wire harness when installing it.


a.

Install the front speed sensor to the steering knuckle with the bolt.

Torque:
8.5 N*m (87 kgf*cm, 75 in.*lbf)

NOTICE:
·

Keep the tip of the front speed sensor and installation hole free of foreign matter.

·

Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.

·

After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.




b.

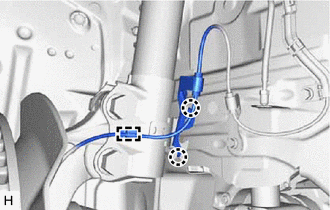

C398590

Engage the clamp to the front shock absorber assembly.


c.

Engage the 2 claws of front speed sensor clamp to the front shock absorber assembly.


d.

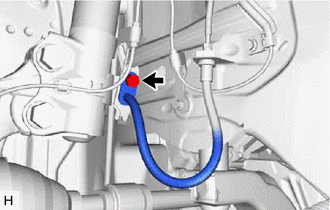

C398591

Install the front flexible hose to the front shock absorber assembly with the bolt.

Torque:
29 N*m (296 kgf*cm, 21 ft.*lbf)


e.

Install the 2 front speed sensor clamps with the 2 bolts.

Torque:
8.5 N*m (87 kgf*cm, 75 in.*lbf)


f.

Engage the clamp to the vehicle body.


g.

Engage the clamp to the vehicle body.


h.

Connect the connector.


i.

Return the front fender liner to its original position.


Hide 53876A 2.INSTALL FRONT FENDER LINER

a.

Install the front fender liner with the 4 clips and 4 grommets.


b.

Install the 4 screws.
