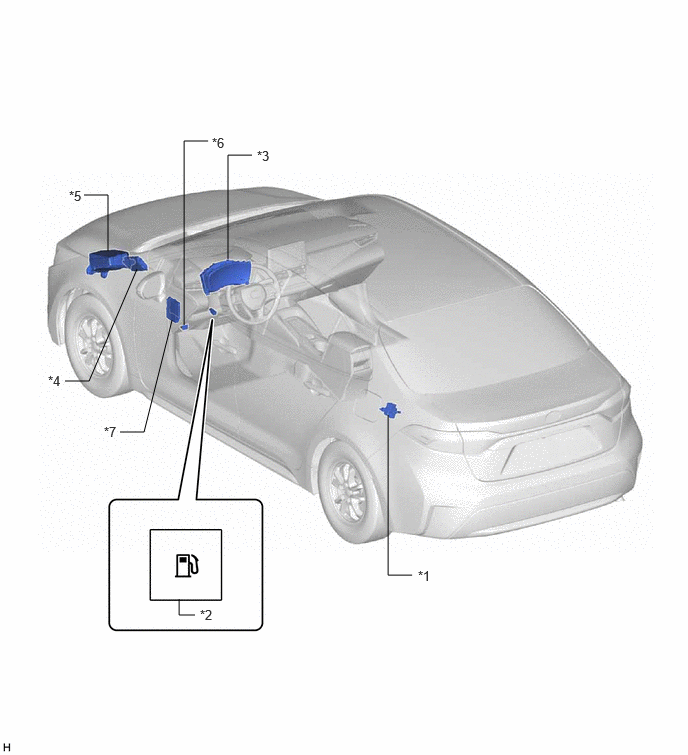

DOOR / HATCH  FUEL LID OPENER SYSTEM  PARTS LOCATION

ILLUSTRATION

1.125,2.615 1.125,2.031 1.125,2.031 0.875,2.031 false 1.792,3.333 1.5,4.5 1.5,4.5 1.25,4.5 false 1.917,3.385 1.917,1.469 1.917,1.469 2.167,1.469 false 2.375,2.698 2.375,1.615 2.375,1.615 2.625,1.615 false 0.677,3.969 0.927,3.969 0.927,3.969 1.427,2.802 false 4.292,5.99 4.042,5.99 4.042,5.99 4.042,4.323 false 2.031,6.406 1.865,6.406 1.865,6.406 1.865,6.24 false 4.354,5.917 4.667,6.115 0.313,0.198 10 false *1 2.083,6.323 2.396,6.521 0.313,0.198 10 false *2 2.677,1.542 2.99,1.74 0.313,0.198 10 false *3 0.719,1.958 1.031,2.156 0.313,0.198 10 false *5 0.5,3.885 0.813,4.083 0.313,0.198 10 false *4 2.208,1.406 2.521,1.604 0.313,0.198 10 false *6 1.083,4.417 1.396,4.615 0.313,0.198 10 false *7

*1	FUEL LID LOCK WITH MOTOR ASSEMBLY	*2	FUEL LID OPENER SWITCH
*3	COMBINATION METER ASSEMBLY	*4	ECM
*5	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - EFI NO. 4 FUSE	*6	DLC3
*7	POWER DISTRIBUTION BOX ASSEMBLY - FUEL OPN/LOCK FUSE - FUEL OPN RELAY	-	-
