ADVANCED DRIVER ASSISTANCE SYSTEM  LANE TRACING ASSIST SYSTEM(for NR Series Engine)  PARTS LOCATION

ILLUSTRATION

4.49,2.26 4.688,0.635 4.688,0.635 4.938,0.635 true 2.979,3.302 2.667,1.833 2.667,1.833 2.417,1.833 true 1.74,4.219 1.344,5.375 1.344,5.375 1.094,5.375 true 3.229,4.281 3.531,5.792 3.531,5.792 3.781,5.792 true 5,0.563 5.313,0.719 0.313,0.156 10 false *1 0.917,5.271 1.229,5.427 0.313,0.156 10 false *2 3.844,5.708 4.156,5.865 0.313,0.156 10 false *3 2.25,1.729 2.563,1.885 0.313,0.156 10 false *4

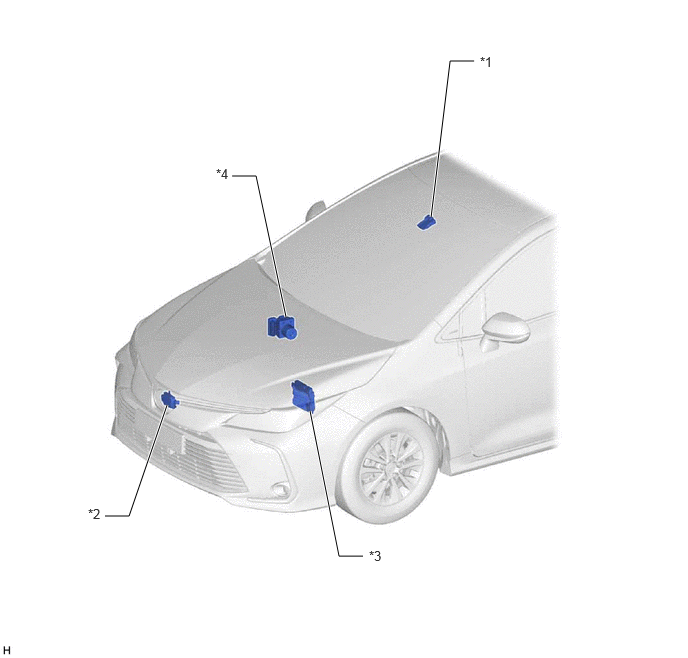

*1	FORWARD RECOGNITION CAMERA	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	ECM	*4	SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)

ILLUSTRATION

2.854,3.615 3.188,2.323 3.188,2.323 3.438,2.323 true 3.333,4.833 3.75,6.073 3.75,6.073 3.979,6.073 true 2.896,4.396 2.604,6.25 2.604,6.25 2.406,6.25 true 2.573,4.063 2.01,6.021 2.01,6.021 1.813,6.021 true 3.333,0.844 3.552,0.594 3.552,0.594 3.802,0.594 true 1.688,4.167 1.406,3.083 1.406,3.083 1.208,3.083 true 2.917,1.063 3.5,1.563 3.5,1.563 3.75,1.563 true 1.813,4.833 1.438,5.667 1.438,5.667 1.24,5.667 true 4.052,6 4.365,6.156 0.313,0.156 10 false *1 2.24,6.167 2.552,6.323 0.313,0.156 10 false *2 1.625,5.938 1.938,6.094 0.313,0.156 10 false *3 3.49,2.24 3.802,2.396 0.313,0.156 10 false *4 3.854,0.521 4.167,0.677 0.313,0.156 10 false *5 1,3.01 1.313,3.167 0.313,0.156 10 false *6 3.781,1.479 4.094,1.635 0.313,0.156 10 false *7 1.073,5.573 1.385,5.729 0.313,0.156 10 false *8

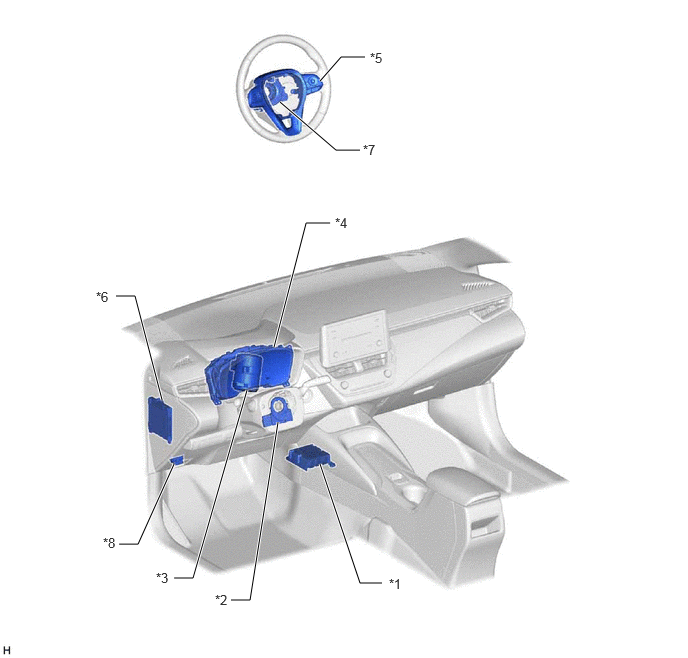

*1	YAW RATE SENSOR (AIRBAG SENSOR WITH ECU ASSEMBLY)	*2	STEERING SENSOR
*3	POWER STEERING ECU (POWER STEERING ECU WITH MOTOR ASSEMBLY)	*4	COMBINATION METER ASSEMBLY - MULTI-INFORMATION DISPLAY - LTA INDICATOR - METER BUZZER
*5	STEERING PAD SWITCH ASSEMBLY - LTA MAIN SWITCH - FUNCTION SWITCH (CUSTOMIZE SWITCH)	*6	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*7	SPIRAL CABLE SUB-ASSEMBLY	*8	DLC3
