RM3660EC _95 ADAS / AD _139716 ADVANCED DRIVER ASSISTANCE SYSTEM _0601171 DYNAMIC RADAR CRUISE CONTROL SYSTEM(for NR Series Engine) U

ADVANCED DRIVER ASSISTANCE SYSTEM DYNAMIC RADAR CRUISE CONTROL SYSTEM(for NR Series Engine) TERMINALS OF ECU

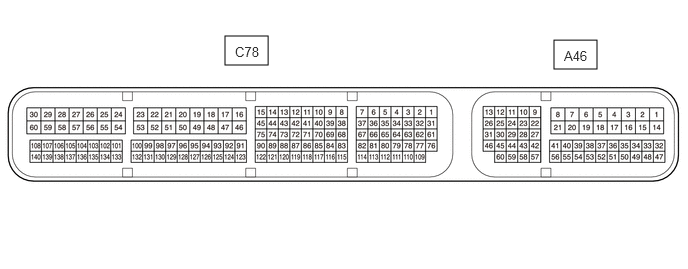

CHECK ECM

2.344,0.375 2.792,0.677 0.448,0.302 5.771,0.417 6.219,0.719 0.448,0.302 2.448,0.458 2.906,0.656 0.458,0.198 10 false C78 5.875,0.5 6.333,0.698 0.458,0.198 10 false A46

HINT:: As a waterproof connector is used for the ECM, voltage, resistance and waveform inspections cannot be performed. The voltage, resistance and waveform values are provided for reference only.

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A46-9 (STP) - C78-53 (E1)	Stop light switch signal	Brake pedal depressed	7.5 to 14 V
A46-9 (STP) - C78-53 (E1)	Stop light switch signal	Brake pedal released	0 to 1.5 V
A46-10 (ST1-) - C78-53 (E1)	Stop light switch signal	Ignition switch ON, brake pedal depressed	0 to 1.5 V
A46-10 (ST1-) - C78-53 (E1)	Stop light switch signal	Ignition switch ON, brake pedal released	7.5 to 14 V
A46-41 (ECCS) - C78-53 (E1)	Steering pad switch circuit	Always	Below 1 Ω
A46-55 (CCS) - C78-53 (E1)	Steering pad switch circuit	Cruise control switch not pushed	1 MΩ or higher
		Cruise control main switch pushed	Below 2.5 Ω
		CANCEL switch pushed	228 to 252 Ω
		+RES switch pushed	599 to 661 Ω
		-SET switch pushed	1463 to 1617 Ω

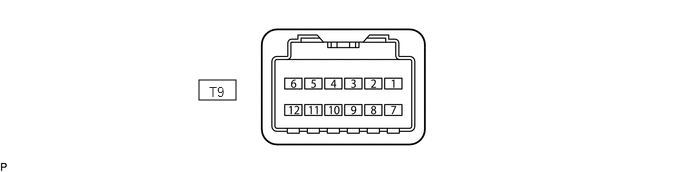

CHECK FORWARD RECOGNITION CAMERA

2.073,0.833 2.458,1.042 0.385,0.208 2.177,0.875 2.49,1.073 0.313,0.198 10 false T9

NOTICE:: ·

Turning the ignition switch to ON with connectors disconnected may cause DTCs to be stored. Make sure to clear the DTCs after inspection has been performed.

·

Do not apply excessive force to the forward recognition camera connector.

Measure the voltage and resistance according to the value(s) in the table below.

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
T9-3 (LKSW) - T9-10 (GND)	Steering pad switch assembly signal (distance control signal)	Ignition switch ON, steering pad switch assembly (vehicle-to-vehicle distance control switch) on	Below 1 V
T9-3 (LKSW) - T9-10 (GND)		Ignition switch ON, steering pad switch assembly (vehicle-to-vehicle distance control switch) off	4.75 to 5.25 V
T9-7 (IGB) - T9-10 (GND)	Power source	Ignition switch ON	11 to 14 V
T9-7 (IGB) - T9-10 (GND)	Power source	Ignition switch off	Below 1 V
T9-10 (GND) - Body ground	Ground	Always	Below 1 Ω

Check for pulses according to the value(s) in the table below.

HINT:: If the waveform is not similar to that shown in the illustration, a malfunction of a CAN bus line, terminating resistor, or the forward recognition camera is suspected.

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
T9-5 (CA1P) - T9-10 (GND)	CAN communication signal	Ignition switch ON	Pulse generation (See waveform 1)
T9-6 (CANH) - T9-10 (GND)			Pulse generation (See waveform 1)
T9-11 (CA1N) - T9-10 (GND)			Pulse generation (See waveform 2)
T9-12 (CANL) - T9-10 (GND)			Pulse generation (See waveform 2)

2.75,0.271 3.365,0.521 0.615,0.25 10 false 1 V/DIV. 1.396,1.906 2.344,2.094 0.948,0.188 10 false 10 μs./DIV. 3.031,1.406 3.344,1.698 0.313,0.292 10 false GND

Waveform 1

Item	Content
Tester Connection	· Between T9-5 (CA1P) and T9-10 (GND) · Between T9-6 (CANH) and T9-10 (GND)
Tool Setting	1 V/DIV., 10 μs./DIV.
Condition	Ignition switch ON

HINT:: The waveform varies depending on the CAN communication signal.

ii.

2.76,0.281 3.396,0.51 0.635,0.229 10 false 1 V/DIV. 1.406,1.875 2.375,2.073 0.969,0.198 10 false 10 μs./DIV. 3.031,1.375 3.406,1.625 0.375,0.25 10 false GND

Waveform 2

Item	Content
Tester Connection	· Between T9-11 (CA1N) and T9-10 (GND) · Between T9-12 (CANL) and T9-10 (GND)
Tool Setting	1 V/DIV., 10 μs./DIV.
Condition	Ignition switch ON

HINT:: The waveform varies depending on the CAN communication signal.
