ADVANCED DRIVER ASSISTANCE SYSTEM  DYNAMIC RADAR CRUISE CONTROL SYSTEM(for NR Series Engine)  OPERATION CHECK

2.344,1.031 2.552,0.708 2.552,0.708 2.823,0.708 true 1.969,1.646 2.125,1.885 2.125,1.885 2.396,1.885 true 0.563,1.26 1.854,1.26 true 1.917,0.667 2.125,0.344 2.125,0.344 2.396,0.344 true 0.104,0.125 0.417,0.281 0.313,0.156 10 false *1 2.854,0.635 3.167,0.792 0.313,0.156 10 false *a 2.438,1.813 2.677,2.031 0.24,0.219 10 true *b 2.427,0.26 2.74,0.458 0.313,0.198 10 true *c 0.406,1.177 0.719,1.333 0.313,0.156 10 false *d

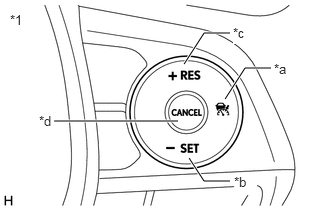

*1	Steering Pad Switch Assembly
*a	Cruise Control Main Switch
*b	-SET Switch
*c	+RES Switch
*d	CANCEL Switch

Check the steering pad switch assembly using the Data List function of the GTS (cruise control main switch, -SET switch, +RES switch and CANCEL switch).

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>DYNAMIC RADAR CRUISE CONTROL SYSTEM (for NR Series Engine)>DATA LIST / ACTIVE TEST202304,999999,_95,_139716,_0601171,RM100000002BFP8,

2.344,1.031 2.552,0.708 2.552,0.708 2.823,0.708 true 0.104,0.125 0.417,0.281 0.313,0.156 10 false *1 2.854,0.635 3.167,0.792 0.313,0.156 10 false *a

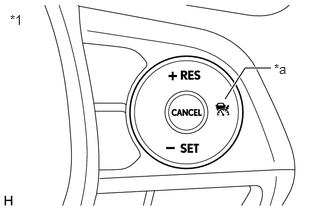

*1	Steering Pad Switch Assembly
*a	Cruise Control Main Switch

Turn the dynamic radar cruise control system on using the cruise control main switch.

0.313,0.5 0.625,0.656 0.313,0.156 10 false *a 1.344,0.5 1.656,0.656 0.313,0.156 10 false *b

*a	Cruise Control Indicator (Vehicle-to-vehicle Distance Control Mode)
*b	Multi-information Display

Check that the cruise control indicator (vehicle-to-vehicle distance control mode) in the combination meter assembly illuminates and "Radar Ready" is displayed on the multi-information display.

2.344,1.031 2.552,0.708 2.552,0.708 2.823,0.708 true 0.104,0.125 0.417,0.281 0.313,0.156 10 false *1 2.854,0.635 3.167,0.792 0.313,0.156 10 false *a

*1	Steering Pad Switch Assembly
*a	Cruise Control Main Switch

Push and hold the cruise control main switch for 1.5 seconds or more with the dynamic radar cruise control system off to change to constant speed control mode.

NOTICE:

Do not push any other switches before pushing the cruise control main switch. If any other switches are pushed, turn the dynamic radar cruise control system off and repeat the above procedure.

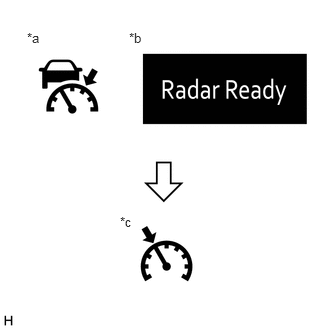

0.281,0.313 0.594,0.469 0.313,0.156 10 false *a 1.344,0.313 1.656,0.469 0.313,0.156 10 false *b 1.25,2.229 1.563,2.385 0.313,0.156 10 false *c

*a	Cruise Control Indicator (Vehicle-to-vehicle Distance Control Mode)
*b	Multi-information Display
*c	Cruise Control Indicator (Constant Speed Control Mode)

Check that the cruise control indicator (vehicle-to-vehicle distance control mode) in the combination meter assembly and "Radar Ready" on the multi-information display turn off and the cruise control indicator (constant speed control mode) illuminates.

2.344,1.031 2.552,0.708 2.552,0.708 2.823,0.708 true 0.104,0.125 0.417,0.281 0.313,0.156 10 false *1 2.854,0.635 3.167,0.792 0.313,0.156 10 false *a

*1	Steering Pad Switch Assembly
*a	Cruise Control Main Switch

Turn the dynamic radar cruise control system on using the cruise control main switch.

HINT:

When in constant speed control mode, the vehicle-to-vehicle distance cannot be changed.

2.365,0.823 2.552,0.417 2.552,0.417 2.771,0.417 true 2.802,0.344 3.115,0.5 0.313,0.156 10 false *a

*a	Vehicle-to-vehicle Distance Control Switch

Press the vehicle-to-vehicle distance control switch.
