RM3660EC _57 Power Source / Network _080742 POWER DISTRIBUTION _0392833 INTEGRATION RELAY A

POWER DISTRIBUTION  INTEGRATION RELAY  INSTALLATION


PROCEDURE

Hide 1.INSTALL NO. 1 INTEGRATION RELAY

a.

Connect the 2 connectors.


b.

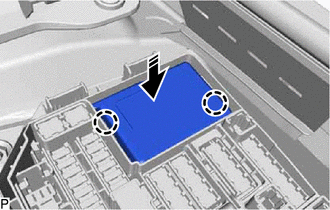

E398245C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 2 claws to install the No. 1 integration relay as shown in the illustration.


Hide 82662A 2.INSTALL NO. 1 RELAY BLOCK COVER

a.

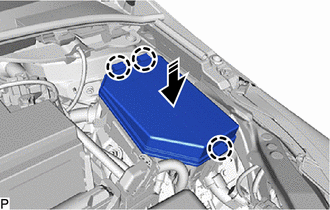

E510607C01
0,0 0,0 false
V113147

Install in this Direction


Engage the 3 claws to install the No. 1 relay block cover as shown in the illustration.


Hide 3.CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for NR Series: Click hereGeneral>MAINTENANCE>NR Series BATTERY>INSTALLATION
