RM3660EC _57 Power Source / Network _080743 NETWORKING _0600591 CXPI COMMUNICATION SYSTEM U

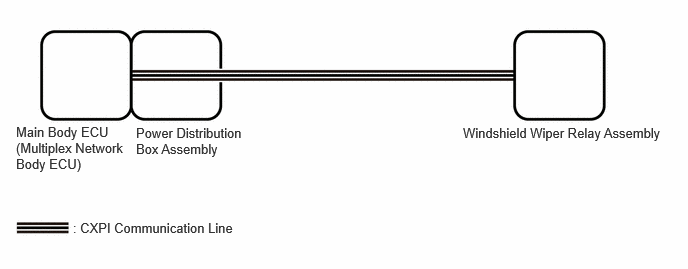

NETWORKING  CXPI COMMUNICATION SYSTEM  SYSTEM DIAGRAM


B671903E03
0.167,1.292 1.333,1.896 1.167,0.604 10 false Main Body ECU (Multiplex Network Body ECU) 1.417,1.302 2.542,1.708 1.125,0.406 10 false Power Distribution Box Assembly 4.823,1.302 6.958,1.698 2.135,0.396 10 false Windshield Wiper Relay Assembly 0.76,2.292 2.656,2.469 1.896,0.177 10 false : CXPI Communication Line
