NETWORKING  CXPI COMMUNICATION SYSTEM  PARTS LOCATION

ILLUSTRATION

3.573,3.542 5.063,5.104 5.063,5.104 5.365,5.104 true 5.438,5.021 5.75,5.219 0.313,0.198 10 false *1

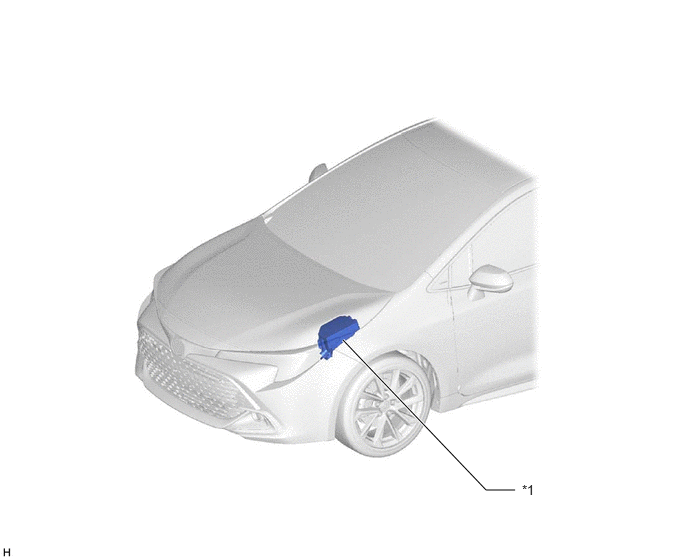

*1

NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - INP STD NO. 3 FUSE - WASHER FUSE

-

-

ILLUSTRATION

1.479,2.771 1.479,0.865 1.479,0.865 1.646,0.865 true 1.208,4.688 1.375,4.688 1.375,4.688 1.375,3.292 true 1.667,3.448 2.052,4.969 2.052,4.969 2.219,4.969 true 4.365,1.469 4.365,0.396 4.365,0.396 4.531,0.396 true 4.594,0.333 4.927,0.552 0.333,0.219 10 false *3 1.698,0.792 2.01,0.948 0.313,0.156 10 false *1 1.031,4.615 1.344,4.854 0.313,0.24 10 false *2 2.292,4.917 2.604,5.073 0.313,0.156 10 false *4

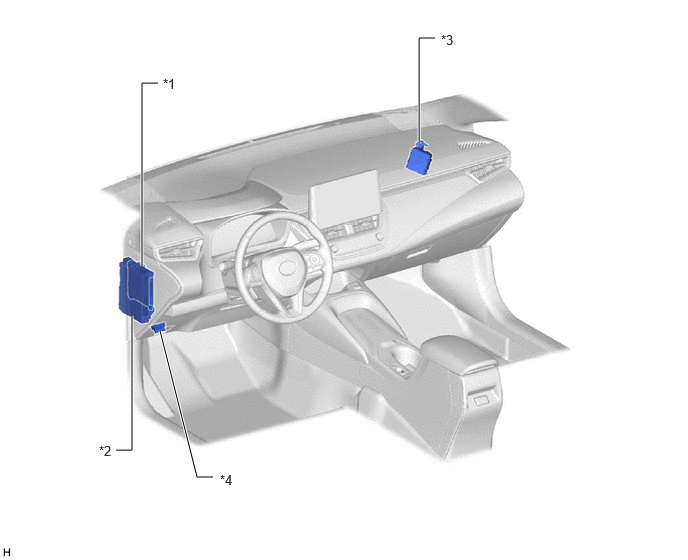

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	POWER DISTRIBUTION BOX ASSEMBLY
*3	WINDSHIELD WIPER RELAY ASSEMBLY	*4	DLC3
