THEFT DETERRENT / KEYLESS ENTRY  DIGITAL KEY SYSTEM  PARTS LOCATION

ILLUSTRATION

2.25,4.781 2.417,4.781 2.417,4.781 2.417,3.115 false 4.833,2.438 4.833,1.021 4.833,1.021 5,1.021 false 5.583,5.5 5.75,5.5 5.75,5.5 5.75,4.333 false 0.75,6.083 1.417,6.083 false 2.073,4.708 2.385,4.906 0.313,0.198 10 false *1 5.083,0.969 5.396,1.167 0.313,0.198 10 false *2 5.406,5.427 5.719,5.625 0.313,0.198 10 false *3 1.469,5.99 1.781,6.188 0.313,0.198 10 false *4 0.25,5.521 0.563,5.719 0.313,0.198 10 false *a

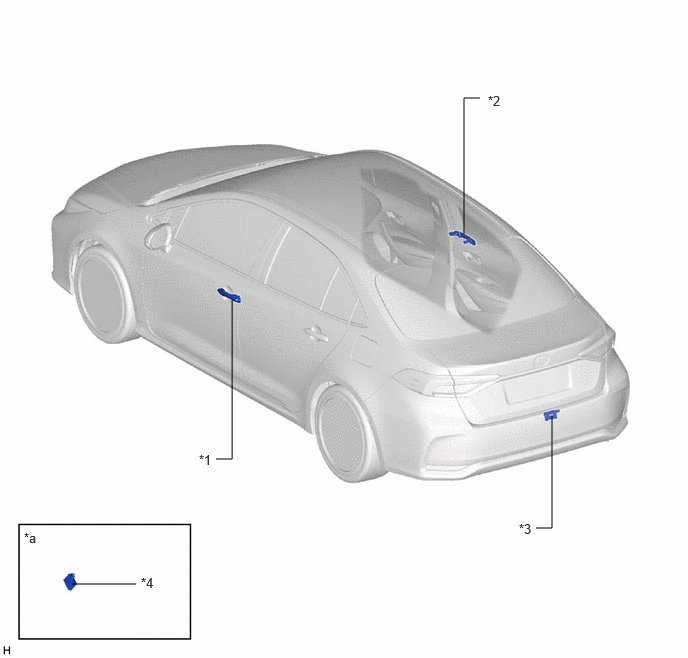

*1	FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Driver Door) - BLE DOOR DIGITAL KEY RECEIVER	*2	FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for Front Passenger Door) - BLE DOOR DIGITAL KEY RECEIVER
*3	BLE LUGGAGE DIGITAL KEY RECEIVER ASSEMBLY	*4	DIGITAL KEY ECU ASSEMBLY
*a	Refer to Service Bulletin for the installation position of the part.	-	-

ILLUSTRATION

1.5,3.021 1.5,1.75 1.5,1.75 1.333,1.75 false 1.75,3.729 1.75,5.042 1.75,5.042 1.583,5.042 false 3.667,3.573 3.667,5.156 3.667,5.156 3.5,5.156 false 5.813,6.083 6.229,6.083 false 1.135,1.667 1.448,1.865 0.313,0.198 10 false *1 1.385,4.979 1.698,5.177 0.313,0.198 10 false *4 3.323,5.094 3.635,5.292 0.313,0.198 10 false *2 5.271,5.438 5.583,5.635 0.313,0.198 10 false *a 6.271,6.01 6.583,6.208 0.313,0.198 10 false *3

*1	POWER DISTRIBUTION BOX ASSEMBLY - ECU-DCC NO. 2 FUSE	*2	BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY
*3	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)	*4	DLC3
*a	Refer to Service Bulletin for the installation position of the part.	-	-
