WINDOW / GLASS  WINDOW DEFOGGER SYSTEM(for NR Series Engine)  SYSTEM DIAGRAM

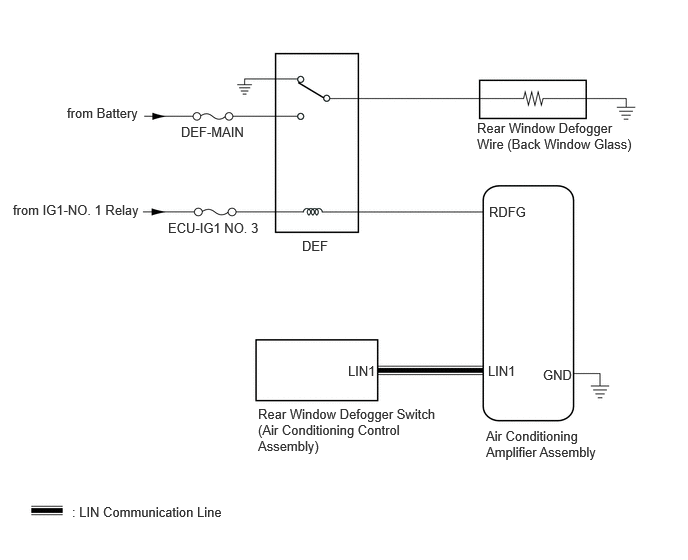

for Electrical Control Type

0.698,1.094 2.219,1.375 1.521,0.281 10 false from Battery 1.885,1.292 2.771,1.479 0.885,0.188 10 false DEF-MAIN 0.135,2.104 1.656,2.302 1.521,0.198 10 false from IG1-NO. 1 Relay 3.146,2.479 4.083,2.729 0.938,0.25 10 false DEF 4.969,1.25 6.656,1.792 1.688,0.542 10 false Rear Window Defogger Wire (Back Window Glass) 5.094,2.125 5.594,2.417 0.5,0.292 10 false RDFG 5.083,3.781 5.521,3.979 0.438,0.198 10 false LIN1 5.656,3.823 6.042,4.052 0.385,0.229 10 false GND 5.063,4.458 6.281,4.979 1.219,0.521 10 false Air Conditioning Amplifier Assembly 3.625,3.781 3.969,4.031 0.344,0.25 10 false LIN1 2.688,4.229 4.594,4.917 1.906,0.688 10 false Rear Window Defogger Switch (Air Conditioning Control Assembly) 0.75,5.25 4.417,5.448 3.667,0.198 10 false : LIN Communication Line 1.75,2.292 3.583,2.49 1.833,0.198 10 false ECU-IG1 NO. 3

Communication Table

Transmitter	Receiver	Signal	Communication Method
Rear Window Defogger Switch (Air Conditioning Control Assembly)	Air Conditioning Amplifier Assembly	Rear Window Defogger Switch Signal	LIN

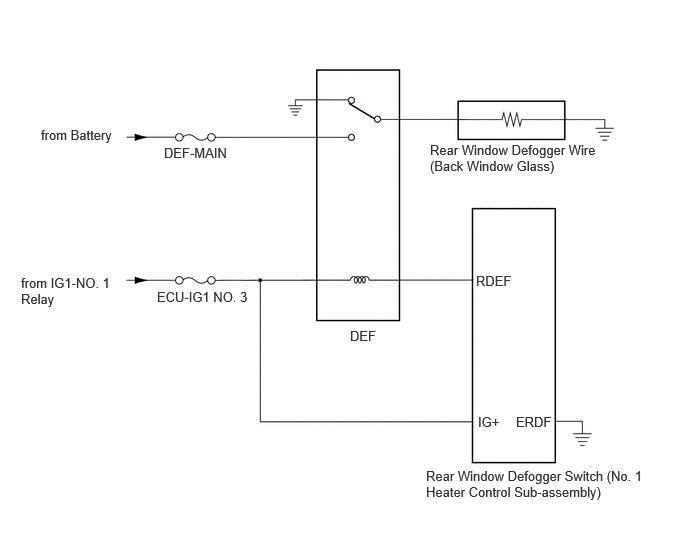

for Mechanical Control Type

4.479,1.479 6.229,1.875 1.75,0.396 10 false Rear Window Defogger Wire (Back Window Glass) 3.646,3.417 3.958,3.615 0.313,0.198 10 false DEF 4.958,2.844 5.406,3.083 0.448,0.24 10 false RDEF 4.979,4.313 5.292,4.531 0.313,0.219 10 false IG+ 5.375,4.313 5.802,4.542 0.427,0.229 10 false ERDF 1.708,1.51 2.469,1.792 0.76,0.281 10 false DEF-MAIN 1.635,3.01 2.656,3.406 1.021,0.396 10 false ECU-IG1 NO. 3 0.427,1.323 1.51,1.604 1.083,0.281 10 false from Battery 0.219,2.865 1.24,3.24 1.021,0.375 10 false from IG1-NO. 1 Relay 4.438,4.875 6.729,5.229 2.292,0.354 10 false Rear Window Defogger Switch (No. 1 Heater Control Sub-assembly)
