WINDOW / GLASS  WINDOW DEFOGGER SYSTEM(for NR Series Engine)  PARTS LOCATION

ILLUSTRATION

1.083,2.25 1.083,0.833 1.083,0.833 0.833,0.833 false 5.083,3.042 5.083,1.208 5.083,1.208 5.333,1.208 false 0.677,0.75 1.292,0.948 0.615,0.198 10 false *3 5.406,1.135 6.021,1.333 0.615,0.198 10 false *2 0.583,0.927 1.198,1.125 0.615,0.198 10 false - *1

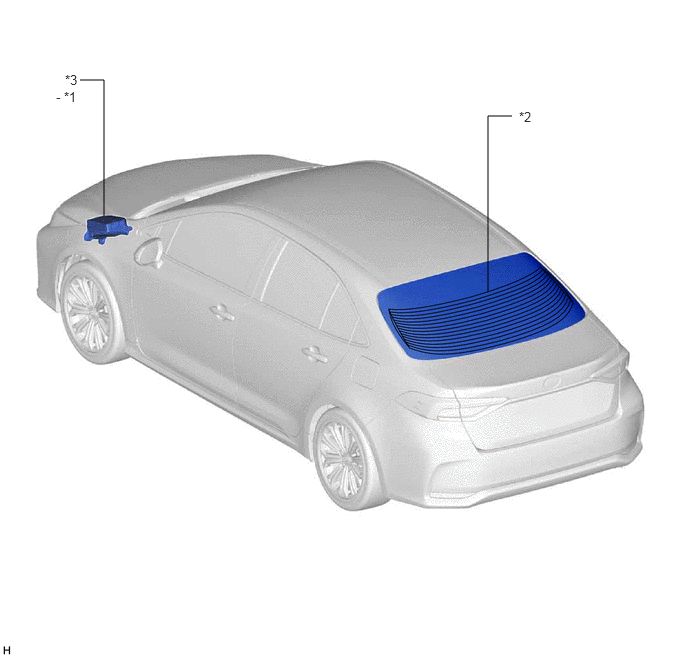

*1	DEF RELAY	*2	REAR WINDOW DEFOGGER WIRE (BACK WINDOW GLASS)
*3	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 ENGINE ROOM JUNCTION BLOCK ASSEMBLY - DEF-MAIN FUSE	-	-

ILLUSTRATION

1.146,3.479 1.479,3.479 false 1.615,5.417 1.854,5.417 1.854,5.417 1.854,3.885 false 2.802,2.99 2.802,1.292 2.802,1.292 2.552,1.292 false 3.844,2.927 3.844,1.063 3.844,1.063 4.042,1.063 false 4.083,0.958 4.396,1.115 0.313,0.156 10 false *1 1.438,5.313 1.75,5.469 0.313,0.156 10 false *2 2.375,1.188 2.688,1.344 0.313,0.156 10 false *3 0.969,3.375 1.281,3.531 0.313,0.156 10 false *4 0.229,0.208 0.604,0.448 0.375,0.24 12 false *A

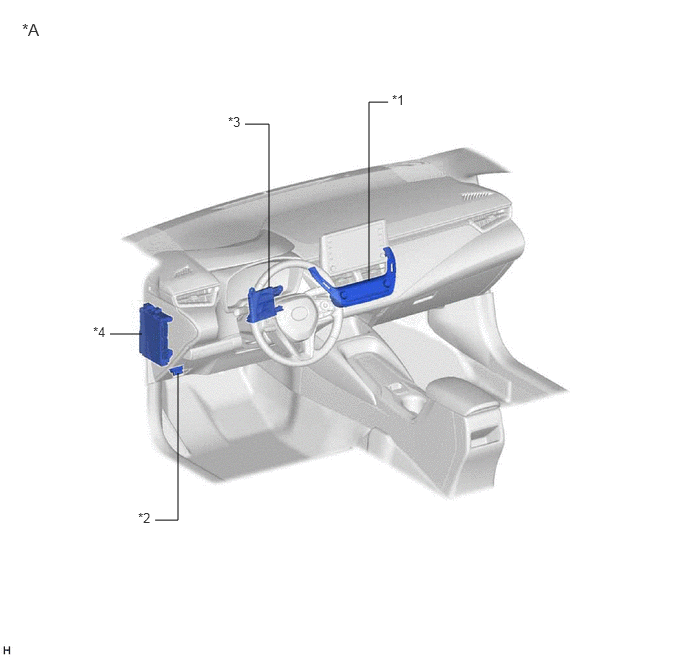

*A	for Electrical Control Type	-	-
*1	REAR WINDOW DEFOGGER SWITCH (AIR CONDITIONING CONTROL ASSEMBLY)	*2	DLC3
*3	AIR CONDITIONING AMPLIFIER ASSEMBLY	*4	DRIVER SIDE JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE

ILLUSTRATION

1.146,3.479 1.479,3.479 false 3.99,2.958 3.99,1.094 3.99,1.094 4.188,1.094 false 4.188,1.021 4.5,1.177 0.313,0.156 10 false *1 0.979,3.417 1.292,3.573 0.313,0.156 10 false *2 0.229,0.208 0.604,0.448 0.375,0.24 12 false *A

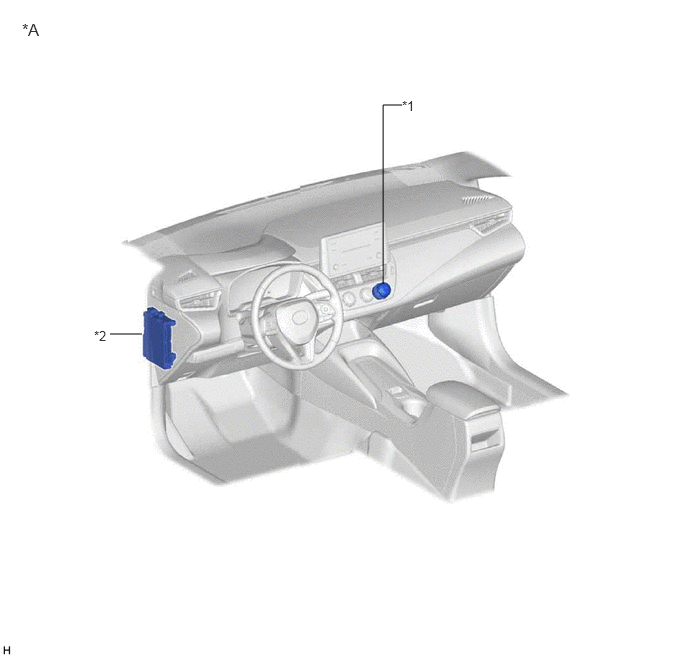

*A	for Mechanical Control Type	-	-
*1	REAR WINDOW DEFOGGER SWITCH (NO. 1 HEATER CONTROL SUB-ASSEMBLY)	*2	DRIVER SIDE JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE
