BRAKE SYSTEM (OTHER) VACUUM WARNING SWITCH(for Gasoline Model) INSTALLATION
PROCEDURE
83390J
1.INSTALL VACUUM WARNING SWITCH GROMMET
Install a new vacuum warning switch grommet to the brake booster assembly.
83390H
2.INSTALL VACUUM WARNING SWITCH ASSEMBLY
| *a | 30° |
|
Up |

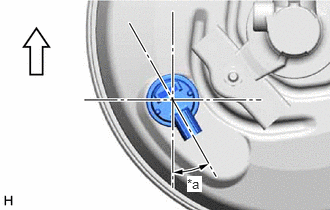

Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.
Connect the connector to the vacuum warning switch assembly.
3.INSTALL BATTERY
for M15B-FKS: Click hereGeneral>MAINTENANCE>M15B-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453685,RM100000002BCCF,
for M15C-FKS: Click hereGeneral>MAINTENANCE>M15C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0453686,RM100000002BCCG,
for M20A-FKS: Click hereGeneral>MAINTENANCE>M20A-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0470107,RM100000002BCCI,
for M20C-FKS: Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0484846,RM100000002BCCJ,
for M20E-FKS: Click hereGeneral>MAINTENANCE>M20E-FKS BATTERY>INSTALLATION202304,999999,_V1,_080956,_0474497,RM100000002BCCK,
4. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL
- HINT:
-
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
