BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS VSC OFF SWITCH REMOVAL

PROCEDURE

Hide Display 33504F 1.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

for NR Series Engine: Click hereDrivetrain>K313 (CVT)>SHIFT LEVER KNOB>REMOVAL201906,999999,_52,_080728,_0392276,RM100000001HPBQ_01_0001,

for M15A-FKS, M15B-FKS, M15C-FKS: Click hereDrivetrain>K320 / K321 (CVT)>SHIFT LEVER KNOB>REMOVAL202101,999999,_52,_096216,_0452233,RM100000001SUD2_01_0001,

for 8ZR-FXE: Click hereDrivetrain>PA10 (HYBRID TRANSMISSION / TRANSAXLE)>SHIFT LEVER KNOB>REMOVAL202304,999999,_52,_138496,_0583545,RM1000000029CQZ_01_0004,

for M20A-FKS, M20C-FKS, M20E-FKS: Click hereDrivetrain>K120 / K121 (CVT)>SHIFT LEVER KNOB>REMOVAL202104,999999,_52,_101162,_0469771,RM100000001VJMR_01_0001,

Hide Display 55434F 2.REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0052,

Hide Display 58831A 3.REMOVE FRONT CONSOLE UPPER PANEL GARNISH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0054,

Hide Display 35970F 4.REMOVE POSITION INDICATOR HOUSING ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202304,999999,_58,_080744,_0393717,RM100000002AVGF_01_0056,

Hide Display 84970 5.REMOVE VSC OFF SWITCH (COMBINATION SWITCH ASSEMBLY)

a.

C398605

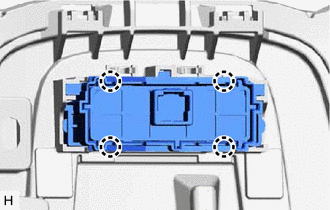

Disengage the 4 claws to remove the VSC OFF switch (combination switch assembly).
