LIGHTING (INT)  LIGHTING SYSTEM(for NR Series Engine)  PARTS LOCATION

ILLUSTRATION

5.542,2.271 5.542,1.552 5.542,1.552 5.792,1.552 false 4.594,2.052 4.594,1.052 4.594,1.052 4.844,1.052 false 3.25,2.51 3.25,0.917 3.25,0.917 3,0.917 false 2.427,6.104 2.177,6.104 2.177,6.104 2.177,4.104 false 1.958,3.719 1.448,3.719 1.448,3.719 1.448,5.396 false 4.104,2.167 4.104,0.667 4.104,0.667 4.354,0.667 false 2.813,0.833 3.125,0.99 0.313,0.156 10 false *2 5.833,1.458 6.146,1.615 0.313,0.156 10 false *1 4.885,0.979 5.5,1.208 0.615,0.229 10 false *4 (*B) 2.458,6.031 2.927,6.188 0.469,0.156 10 false *5 1.396,5.438 1.719,5.604 0.323,0.167 10 false *6 4.417,0.594 4.917,0.802 0.5,0.208 10 false *3 (*A)

*A	w/ Room Light (for Slide Switch Type)	*B	w/ Room Light (for Push Switch Type)

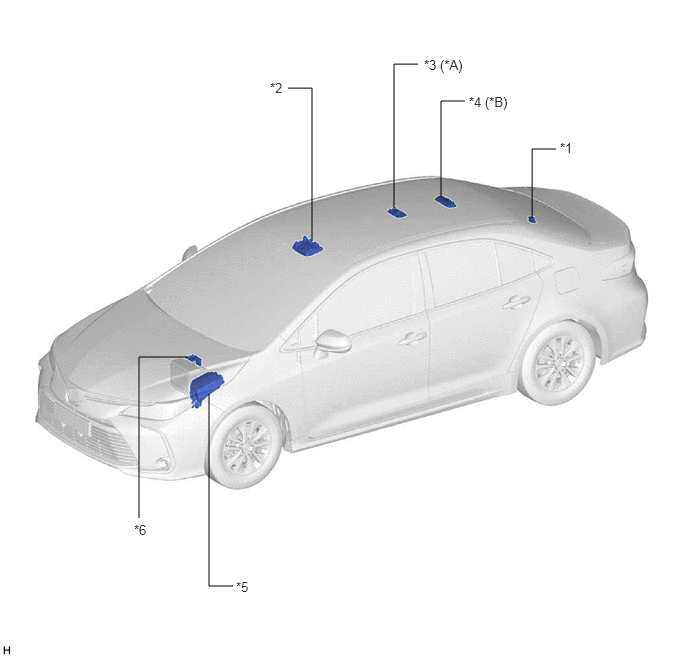

*1	NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY	*2	MAP LIGHT ASSEMBLY
*3	REAR ROOM LIGHT (NO. 1 ROOM LIGHT ASSEMBLY)	*4	ROOM LIGHT ASSEMBLY
*5	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - D/C CUT FUSE	*6	FUSIBLE LINK BLOCK ASSEMBLY - J/B-AM FUSE

ILLUSTRATION

4.677,2.688 4.677,1.271 4.677,1.271 4.927,1.271 false 5.573,3.083 5.573,2 5.573,2 5.823,2 false 6.76,4.104 6.417,4.104 6.417,4.104 5.552,3.302 false 5.906,5.698 5.656,5.698 5.656,5.698 5.656,4.448 false 4.896,5.938 4.646,5.938 4.646,5.938 4.646,3.021 false 3.229,6.146 3.479,6.146 3.479,6.146 3.479,3.896 false 3.146,5.573 3.396,5.573 3.396,5.573 3.396,3.823 false 2.313,5.844 2.563,5.844 2.563,5.844 2.563,3.594 false 2.208,5.26 2.458,5.26 2.458,5.26 2.458,3.51 false 5.938,5.625 6.25,5.781 0.313,0.156 10 false *1 2.146,5.771 2.458,5.927 0.313,0.156 10 false *2 4.938,5.865 5.25,6.021 0.313,0.156 10 false *3 2.042,5.188 2.677,5.375 0.635,0.188 10 false *4 4.958,1.198 5.698,1.427 0.74,0.229 10 false *5 3.063,6.083 3.375,6.24 0.313,0.156 10 false *6 6.813,4.031 7.125,4.188 0.313,0.156 10 false *7 2.979,5.5 3.594,5.656 0.615,0.156 10 false *8 5.865,1.938 6.469,2.146 0.604,0.208 10 false *9

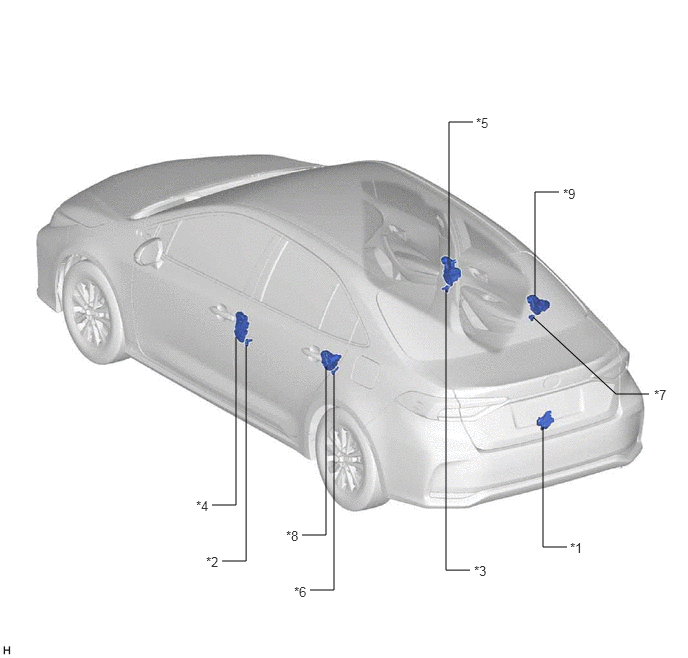

*1	LUGGAGE COMPARTMENT DOOR COURTESY LIGHT SWITCH (LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY)	*2	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH
*3	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH	*4	FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH
*5	FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH	*6	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH
*7	REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH	*8	REAR DOOR LOCK WITH MOTOR ASSEMBLY LH
*9	REAR DOOR LOCK WITH MOTOR ASSEMBLY RH	-	-

ILLUSTRATION

3.083,2.844 3.083,1.5 3.083,1.5 0.75,1.5 true 1.583,2.979 1.583,2.583 1.583,2.583 0.5,2.583 true 0.5,4.167 1.75,4.167 1.75,4.167 1.75,3.604 true 0.5,3.333 1.354,3.333 false 0.844,6.083 1.177,6.083 false 0.75,4.833 2.396,4.833 2.396,4.833 2.396,3.406 true 4.396,4.156 6.417,4.156 true 4.167,2.917 6.417,2.917 true 3.25,3.083 3.25,5.5 true 0.333,1.417 0.958,1.625 0.625,0.208 10 false *1 (*A) 1.229,6 1.75,6.208 0.521,0.208 10 false *2 (*A) 0.333,2.5 0.646,2.656 0.313,0.156 10 false *3 0.333,3.25 0.646,3.406 0.313,0.156 10 false *4 0.333,4.083 0.646,4.24 0.313,0.156 10 false *5 0.323,5.49 0.635,5.646 0.313,0.156 10 false *a 0.333,4.76 0.833,5 0.5,0.24 10 false *6 (*B) 3.042,5.552 3.542,5.792 0.5,0.24 10 false *7 (*C) 6.5,2.833 7,3.073 0.5,0.24 10 false *8 (*B) 6.5,4.083 7,4.323 0.5,0.24 10 false *9 (*D)

*A	w/ Smart Entry and Start System	*B	w/ Footwell Light
*C	w/ Center Tray Light	*D	w/ Cup Holder Light

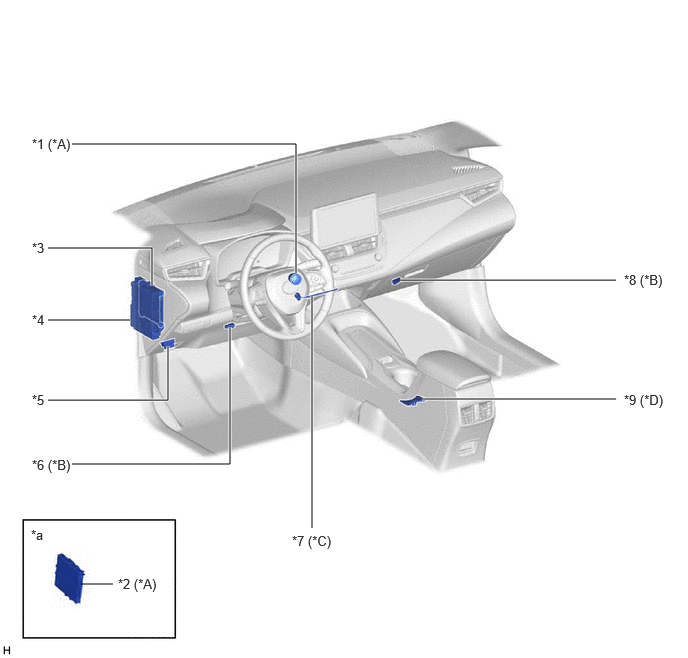

*1	ENGINE SWITCH	*2	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*3	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*4	DRIVER SIDE JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - ECU-DCC NO. 2 FUSE - DOME FUSE - ACC RELAY - IG1-NO. 1 RELAY - DOME CUT RELAY
*5	DLC3	*6	FOOTWELL LIGHT LH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY)
*7	CENTER TRAY ILLUMINATION LIGHT (INSTRUMENT PANEL LIGHT ASSEMBLY)	*8	FOOTWELL LIGHT RH (NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY)
*9	CUP HOLDER LIGHT (CONSOLE BOX POCKET GARNISH)	-	-
*a	Refer to Service Bulletin for the installation position of this part.	-	-
