WINDOW / GLASS  POWER WINDOW CONTROL SYSTEM(for NR Series Engine)  PARTS LOCATION

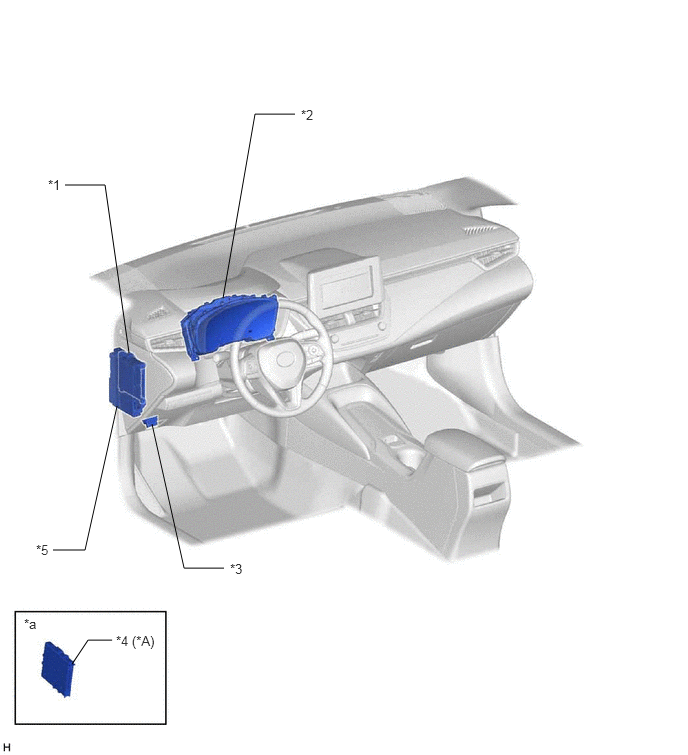

ILLUSTRATION

0.75,6.917 0.917,6.667 0.917,6.667 1.167,6.667 false 2.323,3.104 2.656,1.188 2.656,1.188 3.073,1.188 false 1.583,4.417 1.917,5.917 1.917,5.917 2.333,5.917 false 0.552,5.729 0.885,5.729 0.885,5.729 1.219,4.229 false 0.677,1.927 1.094,1.927 1.094,1.927 1.344,3.677 false 0.5,1.844 0.833,2.094 0.333,0.25 10 false *1 3.135,1.115 3.469,1.438 0.333,0.323 10 false *2 2.396,5.844 2.729,6.083 0.333,0.24 10 false *3 1.208,6.594 1.802,6.854 0.594,0.26 10 false *4 (*A) 0.375,5.646 0.708,5.979 0.333,0.333 10 false *5 0.25,6.417 0.583,6.667 0.333,0.25 10 false *a

*A	w/ Smart Entry and Start System	-	-
*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	COMBINATION METER ASSEMBLY
*3	DLC3	*4	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*5	DRIVER SIDE JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - POWER FUSE - DOOR FUSE - DOOR R/L FUSE - DOOR R/R FUSE	-	-
*a	Refer to Service Bulletin for the installation position of the part.	-	-

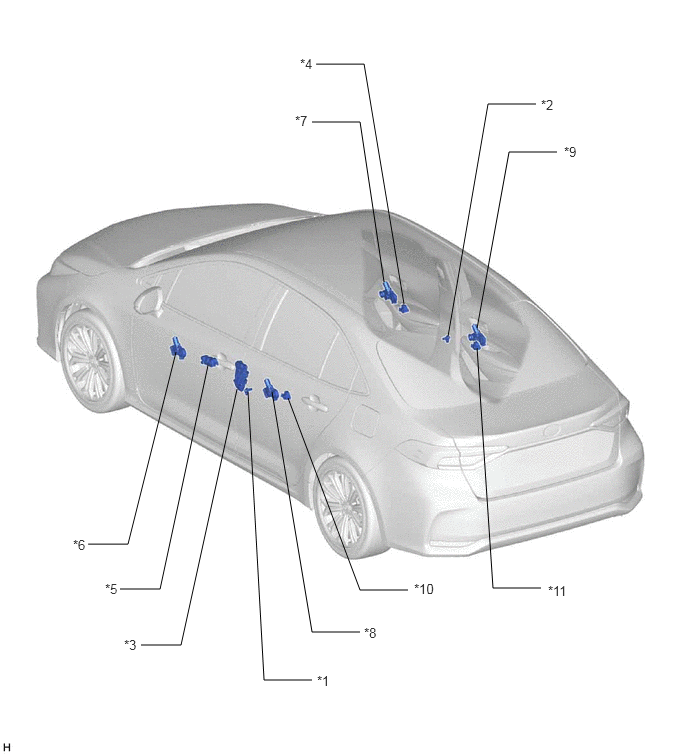

ILLUSTRATION

4,2.938 3.75,1.271 3.75,1.271 3.25,1.271 false 4.208,3.167 3.792,0.667 3.792,0.667 3.292,0.667 false 4.969,3.417 5.302,1.583 5.302,1.583 5.802,1.583 false 4.667,3.5 5.083,1.083 5.083,1.083 5.583,1.083 false 4.969,3.625 5.135,6.125 5.135,6.125 5.635,6.125 false 0.917,5.667 1.333,5.667 1.333,5.667 1.833,3.667 false 1.25,6.135 1.667,6.135 1.667,6.135 2.167,3.802 false 1.469,6.719 1.885,6.719 1.885,6.719 2.469,4.052 false 2.583,4.083 2.75,7.083 2.75,7.083 3.25,7.083 false 2.833,4.083 3.25,6.583 3.25,6.583 3.75,6.583 false 3,4.146 3.75,6.146 3.75,6.146 4.25,6.146 false 3.302,7.01 3.615,7.167 0.313,0.156 10 false *1 5.635,1.01 5.948,1.167 0.313,0.156 10 false *2 1.292,6.635 1.604,6.792 0.313,0.156 10 false *3 3.125,0.583 3.438,0.74 0.313,0.156 10 false *4 1.094,6.052 1.406,6.208 0.313,0.156 10 false *5 0.76,5.594 1.073,5.75 0.313,0.156 10 false *6 3.073,1.177 3.385,1.333 0.313,0.156 10 false *7 3.792,6.51 4.104,6.667 0.313,0.156 10 false *8 5.875,1.5 6.188,1.656 0.313,0.156 10 false *9 4.313,6.052 4.781,6.208 0.469,0.156 10 false *10 5.708,6.073 6.177,6.229 0.469,0.156 10 false *11

*1	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for LH)	*2	FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (for RH)
*3	FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH	*4	POWER WINDOW REGULATOR SWITCH ASSEMBLY
*5	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY	*6	POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Driver Door)
*7	POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Door)	*8	POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH Door)
*9	POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH Door)	*10	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for LH Door)
*11	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for RH Door)	-	-
