WIPER / WASHER  WIPER AND WASHER SYSTEM(for Gasoline Model)  PARTS LOCATION

ILLUSTRATION

3.708,3.458 3.708,1.208 3.708,1.208 3.875,1.208 true 1.896,4.344 1.896,5.927 1.896,5.927 2.063,5.927 true 3.448,4.188 3.448,5.771 3.448,5.771 3.615,5.771 true 2.115,5.844 2.594,6.198 0.479,0.354 10 false *2 3.927,1.115 4.49,1.479 0.563,0.365 10 false *1 3.656,5.688 4.094,5.958 0.438,0.271 10 false *3 3.667,5.896 4.51,6.208 0.844,0.313 10 false - *4 (*A)

*A	for NR Series	-	-

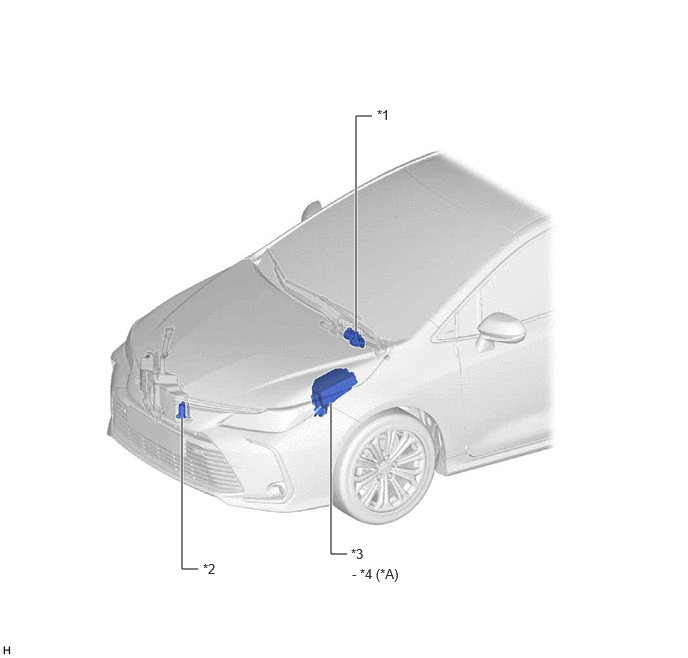

*1	WINDSHIELD WIPER MOTOR ASSEMBLY	*2	WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
*3	NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - WIPER RELAY(except NR Series) - WIPER FUSE - WASHER FUSE(except NR Series)	*4	NO. 1 INTEGRATION RELAY - IG1 NO. 3 RELAY

ILLUSTRATION

2.573,4.271 2.573,3.156 2.573,3.156 2.406,3.156 true 4.427,3.604 4.427,2.917 4.427,2.917 4.594,2.917 true 1.656,4.823 1.656,3.646 1.656,3.646 1.49,3.646 true 3.094,6.719 2.927,6.719 2.927,6.719 2.927,5.052 true 2.021,6.99 1.854,6.99 1.854,6.99 1.854,5.49 true 1.729,7.26 1.563,7.26 1.563,7.26 1.563,5.344 true 2.375,1.24 2.375,1.969 2.375,1.969 2.542,1.969 true 1.677,1.583 1.677,2.167 1.677,2.167 1.844,2.167 true 2.583,1.885 3.021,2.25 0.438,0.365 10 false *2 1.333,3.573 1.823,3.99 0.49,0.417 10 false *4 1.771,7.177 2.479,7.458 0.708,0.281 10 false *5 (*A) 4.625,2.833 4.958,3.156 0.333,0.323 10 false *6 2.052,6.896 2.479,7.292 0.427,0.396 10 false *7 3.135,6.635 3.604,6.979 0.469,0.344 10 false *8 1.917,2.094 2.354,2.458 0.438,0.365 10 false *1 2.24,3.073 2.667,3.375 0.427,0.302 10 false *3 1.771,7.417 2.448,7.75 0.677,0.333 10 false *9 (*B)

*A	for NR Series	*B	except NR Series

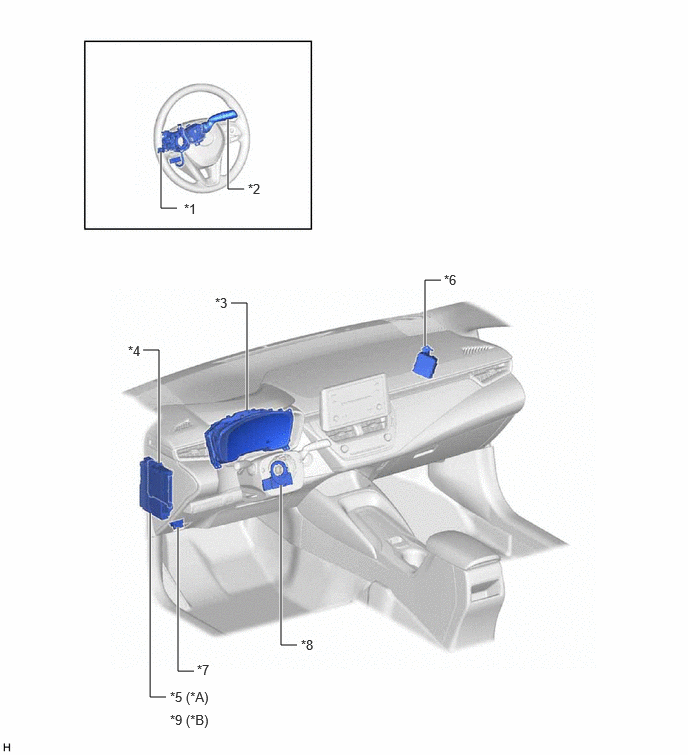

*1	STEERING WHEEL SWITCH HOUSING	*2	WINDSHIELD WIPER SWITCH ASSEMBLY
*3	COMBINATION METER ASSEMBLY	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	DRIVER SIDE JUNCTION BLOCK ASSEMBLY - WASHER FUSE	*6	WINDSHIELD WIPER RELAY ASSEMBLY
*7	DLC3	*8	STEERING SENSOR
*9	POWER DISTRIBUTION BOX ASSEMBLY	-	-
