RM3660EC _V1 General _080956 MAINTENANCE _0393121 BATTERY COOLING FILTER A

MAINTENANCE BATTERY COOLING FILTER REMOVAL

PROCEDURE

Hide Display 58441E 1.REMOVE BATTERY SERVICE HOLE COVER

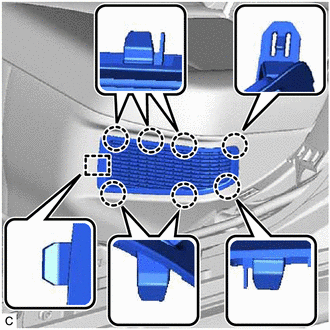

Disengage the 7 claws, guide and remove the battery service hole cover.

Hide Display G92DHB 2.REMOVE NO. 1 HV BATTERY INTAKE FILTER

HINT:: If the message "Maintenance Required for Traction Battery Cooling Parts See Owner's Manual" is displayed on the multi-information display, inspect the No. 1 HV battery intake filter.; Click hereGeneral>MAINTENANCE>BATTERY COOLING FILTER>INSPECTION202304,999999,_V1,_080956,_0393121,RM100000002B8LB,

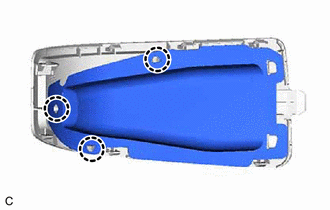

Disengage the 3 claws.

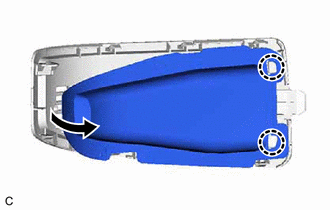

Disengage the 2 claws to remove the No. 1 HV battery intake filter from the battery service hole cover as shown in the illustration.
