TIRE PRESSURE MONITORING TIRE PRESSURE WARNING RECEIVER INSTALLATION
PROCEDURE
897B0A
1.INSTALL TIRE PRESSURE WARNING ECU AND RECEIVER (for NR Series Engine)
- NOTICE:
- ·
Do not drop the tire pressure warning ECU and receiver, strike it with tools or subject it to impact.
·If the tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.
Connect the connector.
Engage the 2 guides and install the tire pressure warning ECU and receiver with the bolt.
- Torque:
- 10 N*m (102 kgf*cm, 7 ft.*lbf)
897B0A
2.INSTALL TIRE PRESSURE WARNING ECU AND RECEIVER (except NR Series Engine)
- NOTICE:
- ·
Do not drop the tire pressure warning ECU and receiver, strike it with tools or subject it to impact.
·If the tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.
Connect the connector.
Engage the guide and install the tire pressure warning ECU and receiver with the bolt.
- Torque:
- 10 N*m (102 kgf*cm, 7 ft.*lbf)
w/ Package Tray Trim Pad:

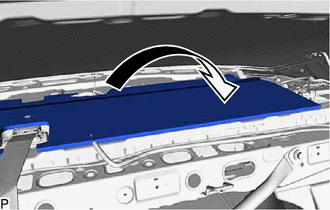

Return the package tray trim pad to its original position as shown in the illustration.
Install the clip.
62472A
3.INSTALL ROOF SIDE INNER GARNISH LH (for NR Series Engine)
64330
4.INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (except NR Series Engine)
5. REGISTER TRANSMITTER ID (for Gasoline Model (for Type A))
6.INSPECT TIRE PRESSURE WARNING SYSTEM (for Gasoline Model (for Type A))
7.PERFORM INITIALIZATION (for Gasoline Model (for Type A))
8.PERFORM INITIALIZATION
for Gasoline Model (for Type B): Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM (for Gasoline Model (for Type B))>PRECAUTION202304,999999,_53,_080780,_0592791,RM100000002AHTO,
for HV Model: Click hereSuspension>TIRE PRESSURE MONITORING>TIRE PRESSURE WARNING SYSTEM (for HV Model)>PRECAUTION202304,999999,_53,_080780,_0393956,RM100000002AI0K,
