RM3660EC _53 Suspension _080780 TIRE PRESSURE MONITORING _0392678 TIRE PRESSURE WARNING VALVE N

TIRE PRESSURE MONITORING  TIRE PRESSURE WARNING VALVE  DISPOSAL


CAUTION / NOTICE / HINT

HINT:

The tire pressure warning valve and transmitter is powered by a lithium battery. When disposing of the tire pressure warning valve and transmitter, remove the battery and dispose of it properly.


PROCEDURE

Hide 42607 1.DISPOSE OF TIRE PRESSURE WARNING VALVE AND TRANSMITTER

a.

for M20 Series Engine:

i.

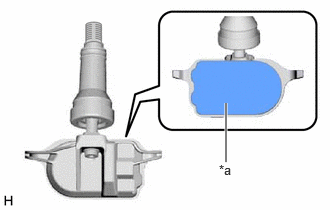

C498712C01
2.354,1.073 2.354,1.688 true 2.281,1.688 2.594,1.885 0.313,0.198 10 false *a
*a Urethane


Remove the urethane that protects the lithium battery and the circuit board.


ii.

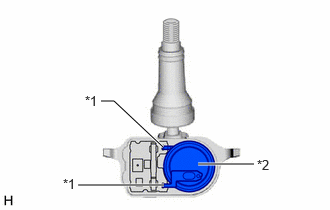

C498713C03
1.052,1.052 1.188,1.052 1.188,1.052 1.698,1.531 true 2.063,1.708 2.646,1.708 true 0.813,1.927 1.708,1.927 true 2.677,1.635 2.99,1.833 0.313,0.198 10 false *2 0.885,0.969 1.198,1.167 0.313,0.198 10 false *1 0.656,1.833 0.969,2.031 0.313,0.198 10 false *1
*1 Terminal
*2 Lithium Battery


Cut the 2 terminals to remove the lithium battery from the tire pressure warning valve and transmitter.



b.

except M20 Series Engine:

i.

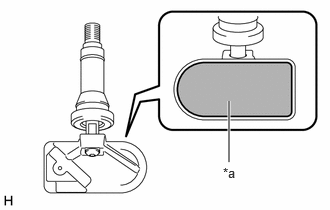

C502876C01
2.385,1.052 2.385,1.688 true 2.323,1.719 2.635,1.875 0.313,0.156 10 false *a
*a Resin


Remove the resin that protects the lithium battery and the circuit board.


ii.

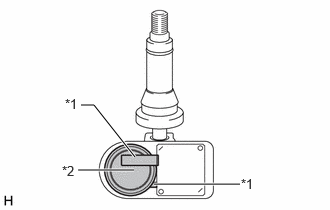

C502877C01
0.844,1.094 0.979,1.094 0.979,1.094 1.406,1.635 true 0.813,1.771 1.396,1.771 true 1.604,1.917 2.5,1.917 true 0.646,1.698 0.958,1.896 0.313,0.198 10 false *2 0.677,1 0.99,1.198 0.313,0.198 10 false *1 2.51,1.833 2.823,2.031 0.313,0.198 10 false *1
*1 Terminal
*2 Lithium Battery


Cut the 2 terminals to remove the lithium battery from the tire pressure warning valve and transmitter.
