RM3660EC _58 Vehicle Interior _080793 METER / GAUGE / DISPLAY _0598151 METER / GAUGE SYSTEM(except 12.3 Inch Display) U

METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM(except 12.3 Inch Display)  DATA LIST / ACTIVE TEST


DATA LIST


NOTICE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.


HINT:

Using the GTS to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.


a.

Read the Data List according to the display on the GTS.

i.

Combination Meter

HINT:

Depending on the specifications of the vehicle, some items may not be displayed.


Body Electrical > Combination Meter > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Total Distance Traveled Total distance traveled Min.: 0, Max.: 999999 - -
Total Distance Traveled - Unit Total distance traveled unit km or mile - -
ODO/TRIP Change Switch ODO/TRIP switch operation OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Up) Up switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Down) Down switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Left) Left switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Right) Right switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Enter) OK switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
Multi Switch (Back) Back switch on steering pad switch OFF or ON OFF: Switch released
ON: Switch pushed 		-
+B Voltage Auxiliary battery voltage
(Combination meter assembly input) 		Min.: 0.0 V, Max.: 25.5 V or Unset 11 to 14 V -
Fuel Input Fuel level input Min.: 0.00 L, Max.: 655.35 L or Unset
for HV Model
·

Fuel receiver gauge indicates F: 37.82 L

·

Fuel receiver gauge indicates 3/4: 29.43 L

·

Fuel receiver gauge indicates 1/2: 21.04 L

·

Fuel receiver gauge indicates 1/4: 12.64 L

·

Fuel receiver gauge indicates E: 4.25 L


for M15B-FKS, M15C-FKS
·

Fuel receiver gauge indicates F: 41.86 L

·

Fuel receiver gauge indicates 3/4: 32.57 L

·

Fuel receiver gauge indicates 1/2: 23.28 L

·

Fuel receiver gauge indicates 1/4: 13.99 L

·

Fuel receiver gauge indicates E: 4.70 L


for M20A-FKS, M20C-FKS, M20E-FKS
·

Fuel receiver gauge indicates F: 44.50 L

·

Fuel receiver gauge indicates 3/4: 34.63 L

·

Fuel receiver gauge indicates 1/2: 24.75 L

·

Fuel receiver gauge indicates 1/4: 14.88 L

·

Fuel receiver gauge indicates E: 5.00 L


for 9NR-FTS, 8NR-FTS
·

Fuel receiver gauge indicates F: 44.00 L

·

Fuel receiver gauge indicates 3/4: 34.11 L

·

Fuel receiver gauge indicates 1/2: 24.40 L

·

Fuel receiver gauge indicates 1/4: 14.69 L

·

Fuel receiver gauge indicates E: 5.00 L


The detected value of the fuel sender gauge assembly is displayed.
Vehicle Speed Meter Vehicle speed input Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph) or Unset Almost the same as actual speedometer The value displayed on the speedometer may deviate.*
Engine RPM Engine speed input Min.: 0 rpm, Max.: 12701 rpm or Unset Almost the same as actual tachometer The value displayed on the tachometer may deviate.*
Driver Buckle Switch Seat belt buckle switch input
(for Driver seat) 		Fastened or Not Fastened Fastened: Driver seat belt buckle switch fastened
Not Fastened: Driver seat belt buckle switch unfastened 		-
Hazard Flasher Switch Hazard warning signal switch input OFF or ON OFF: Hazard warning signal switch off
ON: Hazard warning signal switch on 		-
Ambient Temperature (Celsius) Outside temperature input
(Celsius) 		Min.: -40.0°C, Max.: 87.0°C or Unset Almost the same as actual outside temperature -
Ambient Temperature (Fahrenheit) Outside temperature input
(Fahrenheit) 		Min.: -40°F, Max.: 214°F or Unset Almost the same as actual outside temperature -
Oil Pressure Switch Engine oil pressure switch input OFF or ON OFF: Engine started
ON: Engine not started 		-
Oil Level Switch Engine oil level sensor input OFF or ON OFF: Engine oil level not low
ON: Engine oil level low 		-
Coolant Temperature Engine coolant temperature input Min.: 0.0°C, Max.: 127.0°C or Unset 75 to 100°C: After warming up engine -
Brake Fluid Amount Brake fluid level warning switch input OK or Low OK: Brake fluid level normal
Low: Brake fluid level abnormal 		-
VSC System Existence of electronically controlled brake system Without or With Without: w/o Electronically Controlled Brake System
With: w/ Electronically Controlled Brake System 		-
LDA System Existence of lane tracing assist system Without or With Without: w/o Lane Tracing Assist System
With: w/ Lane Tracing Assist System 		-
PCS System Existence of pre-collision system Without or With Without: w/o Pre-collision System
With: w/ Pre-collision System 		-
ICS System Existence of parking support brake system Without or With Without: w/o Parking Support Brake System
With: w/ Parking Support Brake System 		-
Radar Cruise System Existence of dynamic radar cruise control system Without or With Without: w/o Dynamic Radar Cruise Control System
With: w/ Dynamic Radar Cruise Control System 		-
Clearance Sonar System Existence of intuitive parking assist system Without or With Without: w/o Intuitive Parking Assist System
With: w/ Intuitive Parking Assist System 		-
Road Sign Assist System Existence of road sign assist system Without or With Without: w/o Road Sign Assist System
With: w/ Road Sign Assist System 		-
HV/EV System Indicator Hybrid system indicator value Min.: -512%, Max.: 511% or Unset See [Normal Condition 1] "Unset" is displayed when the vehicle is stopped and the ignition switch is ON (READY).
ODO Display Time After IG OFF Adjust Setting of trip result display time after the ignition switch is turned off 30s, 60s, 600s or OFF - If it is possible to customize the setting, the current setting is displayed.
Tail Remind Buzzer Function Setting of tail remind buzzer function OFF or ON Displays customize setting of Tail Remind Buzzer Function -
ECO Drive Indicator Zone Display Function Setting of the eco driving indicator OFF or ON Customize setting status displayed -
Illumination Rate from Sensitivity Sensor Automatic light control sensor input Min.: 0 lx, Max.: 65535 lx or Unset Almost the same as actual ambient light level 0 is displayed when there is no light.
Reverse Buzzer Setting Setting of reverse buzzer Mute or Continual Displays customize setting of Reverse Buzzer Setting -

*: For the tolerance of each meter, refer to Operation Check.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM (except 12.3 Inch Display)>OPERATION CHECK


HINT:

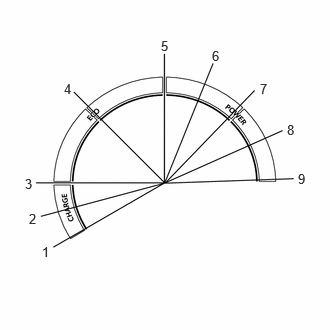

[Normal Condition 1]: HV/EV System Indicator
E509922C01
1.677,0.396 1.823,0.625 0.146,0.229 10 false 5 0.438,2.542 0.583,2.771 0.146,0.229 10 false 1 3.104,1.781 3.25,2.01 0.146,0.229 10 false 9 0.26,1.833 0.406,2.063 0.146,0.229 10 false 3 0.302,2.198 0.448,2.427 0.146,0.229 10 false 2 0.667,0.844 0.813,1.073 0.146,0.229 10 false 4 2.99,1.271 3.135,1.5 0.146,0.229 10 false 8 2.708,0.844 2.854,1.073 0.146,0.229 10 false 7 2.208,0.5 2.354,0.729 0.146,0.229 10 false 6

Refer to the following table to find the approximate indicated value of the hybrid system indicator based on the value of the Data List item:

Data List: HV/EV System Indicator (%) Hybrid System Indicator Indication
Unset Not indicated
-100 Approximately 1 is indicated
-50 Approximately 2 is indicated
0 Approximately 3 is indicated
50 Approximately 4 is indicated
100 Approximately 5 is indicated
200 Approximately 6 is indicated
300 Approximately 7 is indicated
400 Approximately 8 is indicated
500 Approximately 9 is indicated






ACTIVE TEST


HINT:

Using the GTS to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.


a.

Perform the Active Test according the display on the GTS.

HINT:

Depending on the specifications of the vehicle, some items may not be displayed.


Body Electrical > Combination Meter > Active Test
Tester Display Measurement Item Control Range Diagnostic Note
TachoMeter Operation (0rpm) Tachometer
(0 rpm) 		ON -
TachoMeter Operation (1000rpm) Tachometer
(1000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (2000rpm) Tachometer
(2000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (3000rpm) Tachometer
(3000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (4000rpm) Tachometer
(4000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (5000rpm) Tachometer
(5000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (6000rpm) Tachometer
(6000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (7000rpm) Tachometer
(7000 rpm) 		ON The value displayed on the tachometer may deviate.*
TachoMeter Operation (8000rpm) Tachometer
(8000 rpm) 		ON -
TachoMeter Operation (9000rpm) Tachometer
(9000 rpm) 		ON -
TachoMeter Operation (10000rpm) Tachometer
(10000 rpm) 		ON -
Fuel Gauge Operation (Sender E) Fuel receiver gauge

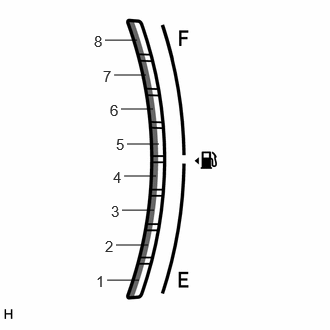

(Fuel sender gauge lower limit) 		ON See [Display 1]
Fuel Gauge Operation (Empty) Fuel receiver gauge
(Fuel receiver gauge indicates E) 		ON See [Display 1]
Fuel Gauge Operation (Warning) Fuel receiver gauge
(Position at which fuel level warning light turns on/off) 		ON See [Display 1]
Fuel Gauge Operation (1/4) Fuel receiver gauge
(Fuel receiver gauge indicates 1/4) 		ON See [Display 1]
Fuel Gauge Operation (1/2) Fuel receiver gauge
(Fuel receiver gauge indicates 1/2) 		ON See [Display 1]
Fuel Gauge Operation (3/4) Fuel receiver gauge
(Fuel receiver gauge indicates 3/4) 		ON See [Display 1]
Fuel Gauge Operation (Full) Fuel receiver gauge
(Fuel receiver gauge indicates F) 		ON See [Display 1]
Fuel Gauge Operation (Sender F) Fuel receiver gauge
(Fuel sender gauge upper limit) 		ON See [Display 1]
Water Temperature Meter Operation (50C,122F) Engine coolant temperature receiver gauge
(50°C, 122°F) 		ON -
Water Temperature Meter Operation (60C,140F) Engine coolant temperature receiver gauge
(60°C, 140°F) 		ON -
Water Temperature Meter Operation (70C,158F) Engine coolant temperature receiver gauge
(70°C, 158°F) 		ON -
Water Temperature Meter Operation (80C,176F) Engine coolant temperature receiver gauge
(80°C, 176°F) 		ON -
Water Temperature Meter Operation (Middle) Engine coolant temperature receiver gauge
(Middle) 		ON -
Water Temperature Meter Operation (110C,230F) Engine coolant temperature receiver gauge
(110°C, 230°F) 		ON -
Water Temperature Meter Operation (120C,248F) Engine coolant temperature receiver gauge
(120°C, 248°F) 		ON -
Water Temperature Meter Operation (127C,260F) Engine coolant temperature receiver gauge
(127°C, 260°F) 		ON -
Buzzer Operation (800Hz, Vol L, W/ Damping) Combination meter buzzer
·

Frequency: 800Hz

·

Volume: Large

·

Fading tone


ON -
Buzzer Operation (800Hz, Vol L, W/O Damping) Combination meter buzzer
·

Frequency: 800Hz

·

Volume: Large

·

Continuous tone


ON -
Buzzer Operation (800Hz, Vol S, W/ Damping) Combination meter buzzer
·

Frequency: 800Hz

·

Volume: Small

·

Fading tone


ON -
Buzzer Operation (800Hz, Vol S, W/O Damping) Combination meter buzzer
·

Frequency: 800Hz

·

Volume: Small

·

Continuous tone


ON -
Buzzer Operation (1.6kHz, Vol S, W/O Damping) Combination meter buzzer
·

Frequency: 1.6kHz

·

Volume: Small

·

Continuous tone


ON -
Multi Display All (White) Multi-information display
(White color display) 		ON -
Multi Display Default Screen Multi-information display
(Default screen) 		ON -
Fuel Gauge Indicator Fuel level warning light OFF or ON -
High Beam Indicator High beam indicator light OFF or ON -
Taillamp Indicator Tail indicator light OFF or ON -
Front Fog Lamp Indicator Front fog indicator light OFF or ON -
Rear Fog Lamp Indicator Rear fog indicator light OFF or ON -
Automatic High Beam Indicator (Green) Automatic high beam/adaptive high beam indicator light OFF or ON -
Left Turn Signal Indicator Turn indicator light
(LH side) 		OFF or ON -
Right Turn Signal Indicator Turn indicator light
(RH side) 		OFF or ON -
Driver Side Seat Belt Warning Driver or front passenger seat belt warning light OFF or ON -
Rear Seat Belt Warning Rear seat belt warning light OFF or ON -
Airbag Warning SRS warning light OFF or ON -
Multi Weather Light Indicator Multi weather indicator light OFF or ON -
ECONO Indicator Eco driving indicator light OFF or ON -
Check Engine Warning MIL (Check engine warning light) OFF or ON -
ECT PWR Indicator ECT PWR indicator light OFF or ON -
Sport Indicator (CVT Sport) SPORT indicator light OFF or ON -
ECO MODE Indicator ECO MODE indicator light OFF or ON -
Brake Warning Brake warning light / red (malfunction) OFF or ON -
Park Warning Parking brake indicator light OFF or ON -
ABS Warning ABS warning light OFF or ON -
ECB Warning Brake warning light / yellow (minor malfunction) OFF or ON -
Slip Warning Slip indicator light OFF or ON -
VSC OFF Indicator VSC OFF indicator light OFF or ON -
Brake Hold Indicator Brake hold standby indicator light OFF or ON -
Hold Indicator Brake hold operated indicator light OFF or ON -
Downhill Assist Control Indicator Downhill assist control indicator light OFF or ON -
Tire Pressure Warning System Indicator Tire pressure warning light OFF or ON -
EPS Warning EPS warning light
(Red) 		OFF or ON -
PPS Warning EPS warning light
(Amber) 		OFF or ON -
PCS OFF Warning PCS warning light OFF or ON -
Radar Cruise Indicator Radar cruise indicator light OFF or ON -
Radar Cruise Indicator (Yellow) Radar cruise indicator light
(Amber) 		OFF or ON -
Cruise Indicator Cruise control indicator light
(Constant speed control mode)
(Green) 		OFF or ON -
Cruise Indicator (Yellow) Cruise control indicator light
(Constant speed control mode)
(Amber) 		OFF or ON -
LDA Indicator LDA indicator light OFF or ON -
LDA Warning LDA warning light OFF or ON -
ASL Indicator ASL indicator light OFF or ON -
ASL Warning ASL warning light OFF or ON -
LDA Indicator (White) LDA indicator light
(White) 		OFF or ON -
Clearance Sonar LCD OFF Indicator Clearance sonar OFF indicator light OFF or ON -
Ready Indicator Ready indicator light OFF or ON -
EV Mode Indicator EV mode indicator light OFF or ON -
EV Drive Indicator EV drive indicator light OFF or ON -
ADAS Integrated Warning Driving assist information indicator light OFF or ON -
Plus Support Indicator Plus support indicator light OFF or ON -
Auxiliary Battery Warning Charge warning light OFF or ON -
Speed Signal Input (0) Vehicle speed test signal input ON When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.
Speed Signal Input (40) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (80) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (120) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (160) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (200) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (240) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

The value displayed on the speedometer may deviate.*


Speed Signal Input (280) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.


Speed Signal Input (320) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.


Speed Signal Input (360) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.


Speed Signal Input (400) Vehicle speed test signal input ON
·

When this Active Test is performed, an actual vehicle speed signal is sent via CAN communication to the combination meter assembly to operate the speedometer. The seat belt warning buzzer, etc. may operate when performing this Active Test.

·

When the value of the Active Test is more than or equal to the speedometer upper limit, the indicated speed stops at the upper limit.


ODO/TRIP Change Switch Performs the same operation as pressing the ODO/TRIP switch OFF or ON -
Multi Switch (Up) Performs the same operation as pressing the up switch on steering pad switch OFF or ON -
Multi Switch (Down) Performs the same operation as pressing the down switch on steering pad switch OFF or ON -
Multi Switch (Left) Performs the same operation as pressing the left switch on steering pad switch OFF or ON -
Multi Switch (Right) Performs the same operation as pressing the right switch on steering pad switch OFF or ON -
Multi Switch (Enter) Performs the same operation as pressing the OK switch on steering pad switch OFF or ON -
Multi Switch (Back) Performs the same operation as pressing the back switch on steering pad switch OFF or ON -
Clearance Sonar Front Buzzer (Short) Clearance warning buzzer
·

Detection direction: Front

·

Detection range: Near


ON -
Clearance Sonar Front Buzzer (Middle) Clearance warning buzzer
·

Detection direction: Front

·

Detection range: Middle


ON -
Clearance Sonar Front Buzzer (Far) Clearance warning buzzer
·

Detection direction: Front

·

Detection range: Far


ON -
Clearance Sonar Front Buzzer (Farthest) Clearance warning buzzer
·

Detection direction: Front

·

Detection range: Farthest


ON -
Clearance Sonar Rear Buzzer (Short) Clearance warning buzzer
·

Detection direction: Rear

·

Detection range: Near


ON -
Clearance Sonar Rear Buzzer (Middle) Clearance warning buzzer
·

Detection direction: Rear

·

Detection range: Middle


ON -
Clearance Sonar Rear Buzzer (Far) Clearance warning buzzer
·

Detection direction: Rear

·

Detection range: Far


ON -
Clearance Sonar Rear Buzzer (Farthest) Clearance warning buzzer
·

Detection direction: Rear

·

Detection range: Farthest


ON -
Clearance Sonar Front/Rear Buzzer (Short) Clearance warning buzzer
·

Detection direction: Front or rear

·

Detection range: Near


ON -
Clearance Sonar Front/Rear Buzzer (Middle) Clearance warning buzzer
·

Detection direction: Front or rear

·

Detection range: Middle


ON -
Clearance Sonar Front/Rear Buzzer (Far) Clearance warning buzzer
·

Detection direction: Front or rear

·

Detection range: Far


ON -
Clearance Sonar Front/Rear Buzzer (Farthest) Clearance warning buzzer
·

Detection direction: Front or rear

·

Detection range: Farthest


ON -
Regulation Buzzer Seat belt warning buzzer

Regulation sound


ON -
Level2 Buzzer Seat belt warning buzzer
·

Sounds intermittently

·

1.4 seconds cycle


ON -
Level1 Buzzer Seat belt warning buzzer
·

Sounds intermittently

·

2 seconds cycle


ON -
Buckle Buzzer Seat belt warning buzzer

Regulation once


ON -
Master Caution Buzzer Master warning buzzer ON -
Flasher Buzzer (Startup Sound) Turn signal flasher buzzer ON -
Flasher Buzzer (Finish Sound) Turn signal flasher buzzer ON -

*: For the tolerance of each meter, refer to Operation Check.

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM (except 12.3 Inch Display)>OPERATION CHECK


HINT:
[Display 1]: Fuel Gauge Operation (except NR Series Engine)
E492920C06
1.323,1.5 1.656,1.5 false 1.26,1.135 1.594,1.135 false 1.188,0.781 1.521,0.781 false 1.094,0.417 1.427,0.417 false 1.292,1.833 1.625,1.833 false 1.271,2.188 1.604,2.188 false 1.208,2.552 1.542,2.552 false 1.115,2.917 1.448,2.917 false 0.979,0.333 1.156,0.552 0.177,0.219 11 false 8 1.073,0.698 1.25,0.917 0.177,0.219 11 false 7 1.146,1.052 1.323,1.271 0.177,0.219 11 false 6 1.208,1.406 1.385,1.625 0.177,0.219 11 false 5 1.177,1.75 1.354,1.969 0.177,0.219 11 false 4 1.156,2.104 1.333,2.323 0.177,0.219 11 false 3 1.094,2.469 1.271,2.688 0.177,0.219 11 false 2 1,2.833 1.177,3.052 0.177,0.219 11 false 1

Refer to the following table for the specified fuel receiver gauge position for each selected value:

Tester Display Fuel Receiver Gauge Indication
Fuel Gauge Operation
(Sender E) 		Segments illuminate 0/8
Fuel Gauge Operation
(Empty) 		Segments illuminate 1/8
Fuel Gauge Operation
(Warning) 		Segments illuminate 1/8
Fuel Gauge Operation
(1/4) 		Segments illuminate 2/8
Fuel Gauge Operation
(1/2) 		Segments illuminate 4/8
Fuel Gauge Operation
(3/4) 		Segments illuminate 6/8
Fuel Gauge Operation
(Full) 		Segments illuminate 8/8
Fuel Gauge Operation
(Sender F) 		Segments illuminate 8/8

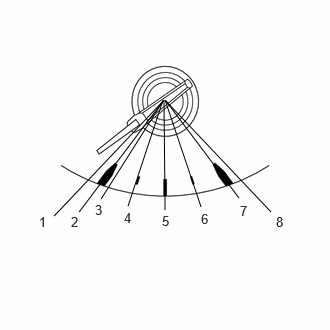

[Display 1]: Fuel Gauge Operation (for NR Series Engine)
E513151E01
0.563,2.25 1.708,1.042 false 0.823,2.208 1.698,1.052 false 1.052,2.073 1.698,1.052 false 1.333,2.146 1.698,1.042 false 1.719,2.188 1.708,1.042 false 2.49,2.063 1.729,1.052 false 2.094,2.156 1.719,1.042 false 2.823,2.208 1.719,1.042 false 0.406,2.229 0.563,2.427 0.156,0.198 10 false 1 0.74,2.229 0.896,2.427 0.156,0.198 10 false 2 0.99,2.104 1.146,2.302 0.156,0.198 10 false 3 1.292,2.188 1.448,2.385 0.156,0.198 10 false 4 1.688,2.219 1.844,2.417 0.156,0.198 10 false 5 2.094,2.198 2.25,2.396 0.156,0.198 10 false 6 2.5,2.115 2.656,2.313 0.156,0.198 10 false 7 2.875,2.229 3.031,2.427 0.156,0.198 10 false 8

Tester Display Fuel Receiver Gauge Indication
Fuel Gauge Operation
(Sender E) 		Approximately 1 is indicated
Fuel Gauge Operation
(Empty) 		Approximately 2 is indicated
Fuel Gauge Operation
(Warning) 		Approximately 3 is indicated
Fuel Gauge Operation
(1/4) 		Approximately 4 is indicated
Fuel Gauge Operation
(1/2) 		Approximately 5 is indicated
Fuel Gauge Operation
(3/4) 		Approximately 6 is indicated
Fuel Gauge Operation
(Full) 		Approximately 7 is indicated
Fuel Gauge Operation
(Sender F) 		Approximately 8 is indicated
