MIRROR (INT)  INNER REAR VIEW MIRROR(w/o EC Mirror)  INSTALLATION

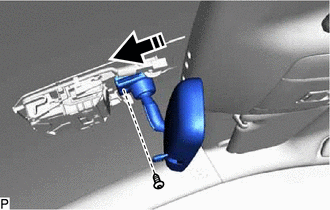

87810 1.INSTALL INNER REAR VIEW MIRROR ASSEMBLY (for NR Series Engine)

a.

0,0 0,0 false

Install in this Direction

Slide and temporarily install the inner rear view mirror assembly as shown in the illustration.

b.

Using a T20 "TORX" socket wrench, install the inner rear view mirror assembly with the screw.

Torque:

1.5 N*m (15 kgf*cm, 13 in.*lbf)

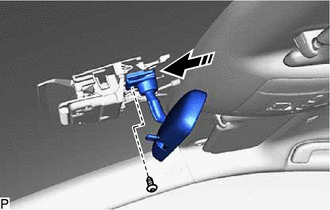

87810 2.INSTALL INNER REAR VIEW MIRROR ASSEMBLY (except NR Series Engine)

a.

0,0 0,0 false

Install in this Direction

Slide and temporarily install the inner rear view mirror assembly as shown in the illustration.

b.

Using a T20 "TORX" socket wrench, install the inner rear view mirror assembly with the screw.

Torque:

1.5 N*m (15 kgf*cm, 13 in.*lbf)

86466D 3.INSTALL NO. 1 FORWARD RECOGNITION COVER (w/ Front Camera)

86466E 4.INSTALL NO. 2 FORWARD RECOGNITION COVER (w/ Front Camera)
