MIRROR (INT) INNER REAR VIEW MIRROR(w/o EC Mirror) REMOVAL
PROCEDURE
86466E
1.REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Front Camera)
for NR Series Engine: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (for NR Series Engine)>REMOVAL202304,999999,_95,_139716,_0584840,RM1000000029I33_01_0022,
except NR Series Engine: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (except NR Series Engine)>REMOVAL202304,999999,_95,_139716,_0584196,RM1000000029F5J_01_0022,
86466D
2.REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Front Camera)
for NR Series Engine: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (for NR Series Engine)>REMOVAL202304,999999,_95,_139716,_0584840,RM1000000029I33_01_0023,
except NR Series Engine: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (except NR Series Engine)>REMOVAL202304,999999,_95,_139716,_0584196,RM1000000029F5J_01_0023,
87810

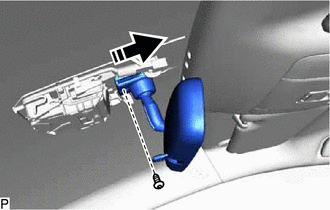

3.REMOVE INNER REAR VIEW MIRROR ASSEMBLY (for NR Series Engine)
|
Remove in this Direction |
Using a T20 "TORX" socket wrench, remove the screw.
Slide the inner rear view mirror assembly as shown in the illustration to remove it.
87810

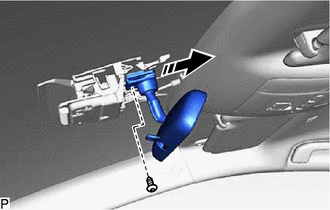

4.REMOVE INNER REAR VIEW MIRROR ASSEMBLY (except NR Series Engine)
|
|
Remove in this Direction |
Using a T20 "TORX" socket wrench, remove the screw.
Slide the inner rear view mirror assembly as shown in the illustration to remove it.
