RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0393162 REAR LIGHT ASSEMBLY(for GTMC Made) A

LIGHTING (EXT)  REAR LIGHT ASSEMBLY(for GTMC Made)  REASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 8158AD 1.INSTALL REAR FOG LIGHT LED (for Driver Side)

a.

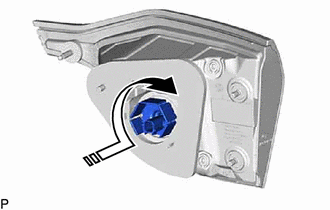

E513112C01
0,0 0,0 false
V113147

Install in this Direction


Turn the rear fog light LED as shown in the illustration to install them as a unit.


b.

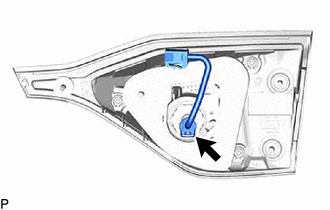

E513110

Connect the connector.


Hide 81550N 2.INSTALL BACK-UP LIGHT BULB (for Passenger Side)

a.

Install the back-up light bulb to the rear light socket and wire.


b.

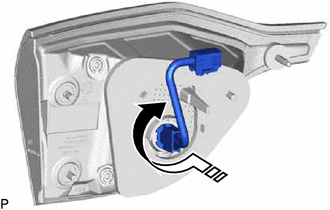

E419594C01
0,0 0,0 false
V113147

Install in this Direction


Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to install them as a unit.
