LIGHTING (EXT)  REAR LIGHT ASSEMBLY(for GTMC Made)  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81550N 1.REMOVE BACK-UP LIGHT BULB (for Passenger Side)

a.
E419593C01
0,0 0,0 false
V113147

Disconnect in this Direction

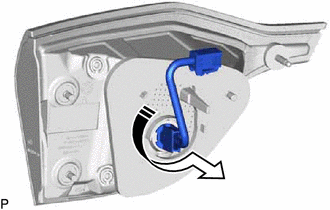

Turn the rear light socket and wire with the back-up light bulb as shown in the illustration to remove them as a unit.


b.

Remove the back-up light bulb from the rear light socket and wire.


Hide 8158AD 2.REMOVE REAR FOG LIGHT LED (for Driver Side)

a.
E513110

Disconnect the connector.


b.
E513111C01
0,0 0,0 false
V113147

Disconnect in this Direction

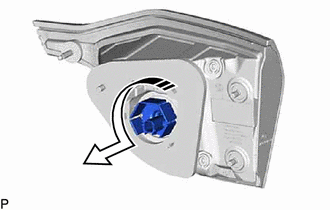

Turn the rear fog light LED as shown in the illustration to remove them as a unit.
