RM3660EC _59 Vehicle Exterior _080784 LIGHTING (EXT) _0393163 REAR LIGHT ASSEMBLY(for TFTM Made) A

LIGHTING (EXT)  REAR LIGHT ASSEMBLY(for TFTM Made)  REASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81536G 1.INSTALL BACK-UP LIGHT LED (for LED Type Tail Light)

a.

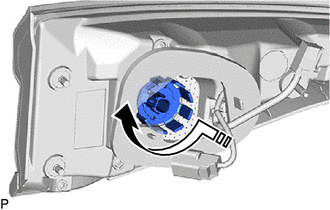

E465277C01
0,0 0,0 false
V113147

Install in this Direction


Turn the back-up light LED as shown in the illustration to install it.


b.

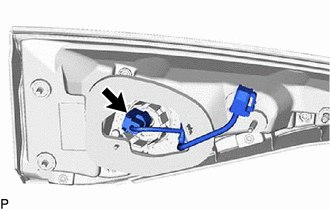

E465275

Connect the connector.


Hide 8158AD 2.INSTALL REAR FOG LIGHT LED (for LED Type Tail Light)

a.

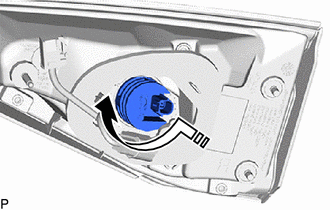

E465279C01
0,0 0,0 false
V113147

Install in this Direction


Turn the rear fog light LED as shown in the illustration to install it.


b.

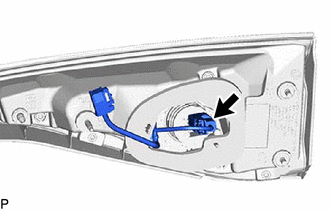

E465274

Connect the connector.


Hide 81594A 3.INSTALL REAR LIGHT GASKET (for Bulb Type Tail Light)

a.

except NR Series Engine:

i.

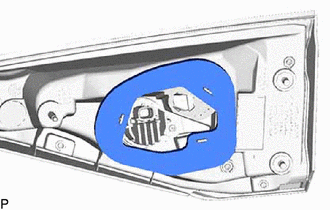

E439428

Install a new rear light gasket.



Hide 8158AD 4.INSTALL REAR FOG LIGHT LED (for Bulb Type Tail Light)

a.

except NR Series Engine:

i.
E465279C01
0,0 0,0 false
V113147

Install in this Direction


Turn the rear fog light LED as shown in the illustration to install it.



Hide 81595 5.INSTALL REAR LIGHT SOCKET AND WIRE (for Bulb Type Tail Light)

a.

except NR Series Engine:

i.

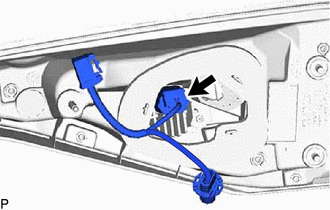

E419560

Connect the connector to install the rear light socket and wire.



Hide 81550F 6.INSTALL TAIL LIGHT BULB (for Bulb Type Tail Light)

a.

Install the tail light bulb to the rear light socket and wire.


b.

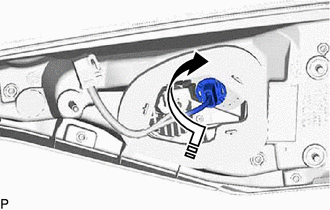

E419559C01
0,0 0,0 false
V113147

Install in this Direction


Turn the rear light socket and wire with the tail light bulb as shown in the illustration to install them as a unit.
