LIGHTING (EXT)  REAR LIGHT ASSEMBLY(for TFTM Made)  INSPECTION

0.917,2.583 1.417,2.417 true 2,2.417 2.5,2.583 true 0.917,1.75 1.417,1.917 true 2.542,2.5 2.854,2.698 0.313,0.198 10 false B 0.771,1.667 1.083,1.865 0.313,0.198 10 false E 0.167,0.167 0.479,0.323 0.313,0.156 10 false *a 0.771,2.5 1.083,2.698 0.313,0.198 10 false B

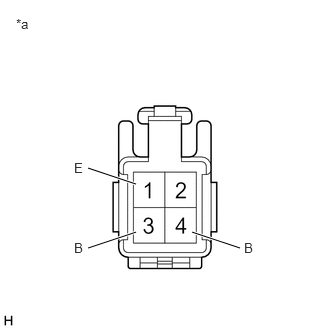

*a	Component without harness connected (Rear Light Assembly LH)

Apply auxiliary battery voltage to the rear light assembly LH and check that the light illuminates.

OK:

Condition	Specified Condition
*1: for LED Type Tail Light
Auxiliary battery positive (+) → Terminal 4 (B) Auxiliary battery negative (-) → Terminal 1 (E)	Tail light illuminates*1
Auxiliary battery positive (+) → Terminal 3 (B) Auxiliary battery negative (-) → Terminal 1 (E)	Fog light illuminates

If the result is not as specified, replace the rear light assembly LH or rear fog light LED.

2,1.917 2.5,1.75 true 0.917,1.75 1.417,1.917 true 2,2.417 2.5,2.583 true 0.167,0.167 0.479,0.365 0.313,0.198 10 false *a 2.521,2.5 2.833,2.698 0.313,0.198 10 false B 0.75,1.667 1.063,1.865 0.313,0.198 10 false E 2.521,1.667 2.833,1.865 0.313,0.198 10 false B

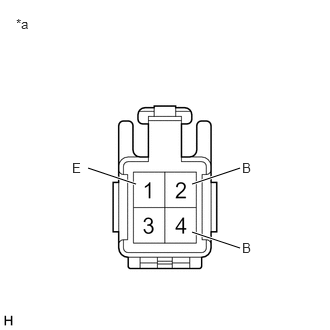

*a	Component without harness connected (Rear Light Assembly RH)

Apply auxiliary battery voltage to the rear light assembly RH and check that the light illuminates.

OK:

Condition	Specified Condition
*1: for LED Type Tail Light
Auxiliary battery positive (+) → Terminal 4 (B) Auxiliary battery negative (-) → Terminal 1 (E)	Tail light illuminates*1
Auxiliary battery positive (+) → Terminal 2 (B) Auxiliary battery negative (-) → Terminal 1 (E)	Back-up light illuminates

If the result is not as specified, replace the rear light assembly RH or back-up light LED.
