LIGHTING (EXT)  REAR LIGHT ASSEMBLY(for TFTM Made)  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81550F 1.REMOVE TAIL LIGHT BULB (for Bulb Type Tail Light)

a.

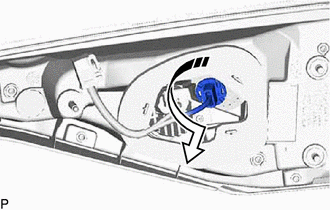

E419558C01
0,0 0,0 false
V113147

Disconnect in this Direction


Turn the rear light socket and wire with the tail light bulb as shown in the illustration to disconnect them as a unit.


b.

Remove the tail light bulb from the rear light socket and wire.


Hide 81595 2.REMOVE REAR LIGHT SOCKET AND WIRE (for Bulb Type Tail Light)

a.

except NR Series Engine:

i.
E419560

Disconnect the connector to remove the rear light socket and wire.



Hide 8158AD 3.REMOVE REAR FOG LIGHT LED (for Bulb Type Tail Light)

a.

except NR Series Engine:

i.

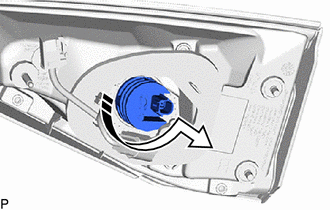

E465278C01
0,0 0,0 false
V113147

Remove in this Direction


Turn the rear fog light LED as shown in the illustration to remove it.



Hide 81594A 4.REMOVE REAR LIGHT GASKET (for Bulb Type Tail Light)

a.

except NR Series Engine:

i.
E439428

Remove the rear light gasket.

NOTICE:
·

Be sure to remove all traces of the old rear light gasket from the vehicle body.


·

Do not reuse the removed rear light gasket. Be sure to install a new rear light gasket to prevent water ingress.





Hide 8158AD 5.REMOVE REAR FOG LIGHT LED (for LED Type Tail Light)

a.
E465274

Disconnect the connector.


b.
E465278C01
0,0 0,0 false
V113147

Remove in this Direction


Turn the rear fog light LED as shown in the illustration to remove it.


Hide 81536G 6.REMOVE BACK-UP LIGHT LED (for LED Type Tail Light)

a.
E465275

Disconnect the connector.


b.

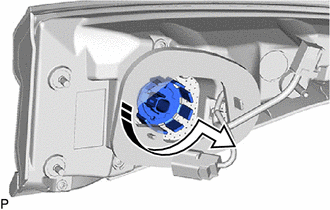

E465276C01
0,0 0,0 false
V113147

Remove in this Direction


Turn the back-up light LED as shown in the illustration to remove it.
