LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY(for TFTM Made)  REASSEMBLY

81536C 1.INSTALL TAIL AND STOP LIGHT LED (for Bulb Type Turn Signal Light)

a.

except NR Series Engine:

i.

0,0 0,0 false

Install in this Direction

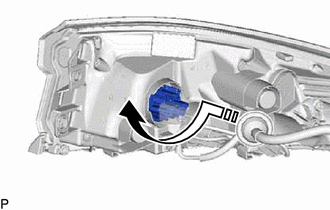

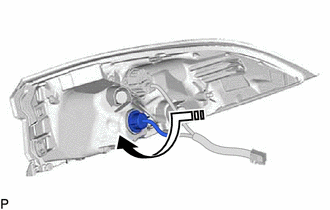

Turn the tail and stop light LED as shown in the illustration to install it.

81565E 2.INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE (for Bulb Type Turn Signal Light)

a.

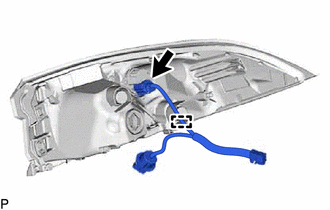

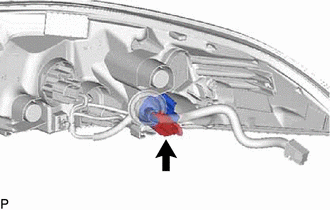

Engage the clamp.

b.

Connect the connector to install the rear combination light socket and wire.

81550L 3.INSTALL REAR TURN SIGNAL LIGHT BULB (for Bulb Type Turn Signal Light)

a.

Install the rear turn signal light bulb to the rear combination light socket and wire.

b.

0,0 0,0 false

Install in this Direction

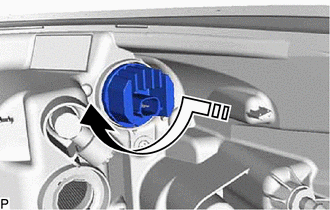

Turn the rear combination light socket and wire with the rear turn signal light bulb as shown in the illustration to install them as a unit.

81565E 4.INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE (for LED Type Turn Signal Light)

a.

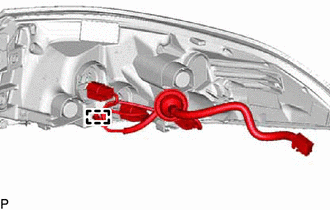

Engage the clamp to install the rear combination light socket and wire.

81536E 5.INSTALL STOP LIGHT LED (for LED Type Turn Signal Light)

a.

0,0 0,0 false

Install in this Direction

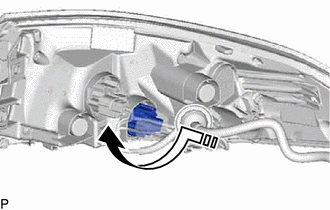

Turn the stop light LED as shown in the illustration to install it.

b.

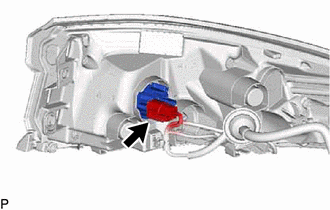

Connect the connector.

6.INSTALL TAIL LIGHT LED (for LED Type Turn Signal Light)

a.

0,0 0,0 false

Install in this Direction

Turn the tail light LED as shown in the illustration to install it.

b.

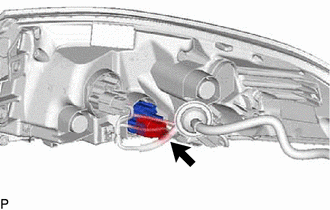

Connect the connector.

81536B 7.INSTALL REAR TURN SIGNAL LIGHT LED (for LED Type Turn Signal Light)

a.

0,0 0,0 false

Install in this Direction

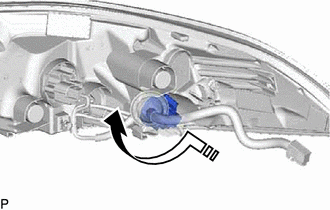

Turn the rear turn signal light LED as shown in the illustration to install it.

b.

Connect the connector.
