RM3660EC _V1 General _080956 MAINTENANCE _0393747 AIR CONDITIONING FILTER A

MAINTENANCE  AIR CONDITIONING FILTER  REMOVAL


PROCEDURE

Hide 88899M 2.REMOVE AIR FILTER COVER PLATE

a.

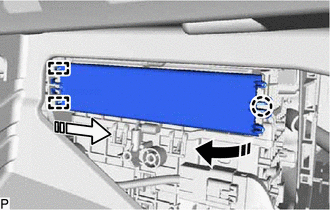

E401962C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Disengage the claw and 2 guides as shown in the illustration to remove the air filter cover plate.


Hide 87139C 3.REMOVE CLEAN AIR FILTER

a.

w/ Air Filter Case:

i.

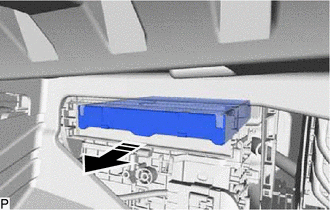

E401960C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the air filter sub-assembly as shown in the illustration.


ii.

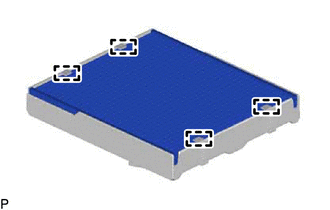

E399237

Disengage the 4 guides to remove the clean air filter from the air filter case.



b.

w/o Air Filter Case:

i.

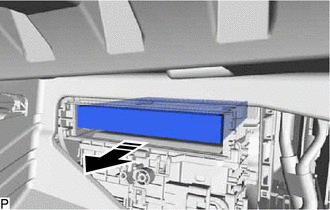

E419787

Remove the clean air filter as shown in the illustration.
