HEATING / AIR CONDITIONING  AIR CONDITIONING PANEL  INSTALLATION

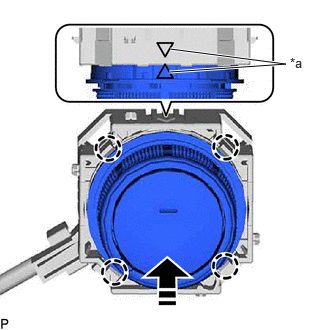

1.INSTALL NO. 1 HEATER CONTROL SUB-ASSEMBLY (for Mechanical Control Type)

a.

1.76,0.75 2.979,0.667 2.979,0.667 1.771,0.51 true 3.021,0.573 3.292,0.802 0.271,0.229 10 false *a

*a	Alignment Mark
	Install in this Direction

Engage the 4 claws to install the No. 1 heater control sub-assembly to the heater control cable sub-assembly as shown in the illustration.

HINT:

Before installing the No. 1 heater control sub-assembly, align the alignment mark of the dial side with the alignment mark of the cable side as shown in the illustration.

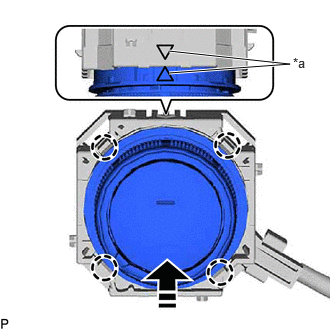

2.INSTALL NO. 3 HEATER CONTROL SUB-ASSEMBLY (for Mechanical Control Type)

a.

1.76,0.76 3.021,0.667 3.021,0.667 1.76,0.531 true 3.052,0.573 3.365,0.729 0.313,0.156 10 false *a

*a	Alignment Mark
	Install in this Direction

Engage the 4 claws to install the No. 3 heater control sub-assembly to the air mix damper control cable sub-assembly as shown in the illustration.

HINT:

Before installing the No. 3 heater control sub-assembly, align the alignment mark of the dial side with the alignment mark of the cable side as shown in the illustration.

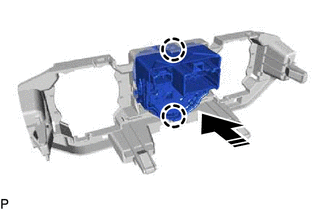

3.INSTALL NO. 2 HEATER CONTROL SUB-ASSEMBLY (for Mechanical Control Type)

a.

0,0 0,0 false

Install in this Direction

Engage the 2 claws to install the No. 2 heater control sub-assembly to center instrument panel safety pad retainer as shown in the illustration.

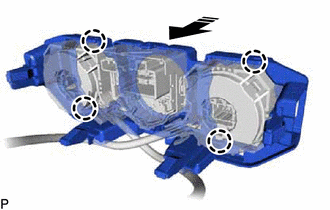

4.INSTALL CENTER INSTRUMENT PANEL SAFETY PAD RETAINER WITH HEATER CONTROL (for Mechanical Control Type)

a.

0,0 0,0 false

Install in this Direction

Engage the 4 claws as shown in the illustration.

b.

Connect the 4 connectors.

c.

Engage the 4 clips to install the center instrument panel safety pad retainer with heater control.

55670A 5.INSTALL CENTER INSTRUMENT PANEL REGISTER ASSEMBLY (for Mechanical Control Type)

55470 6.INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY (for Mechanical Control Type)

55318F 7.INSTALL NO. 2 INSTRUMENT SIDE PANEL (for Mechanical Control Type)

8.INSTALL LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Mechanical Control Type)

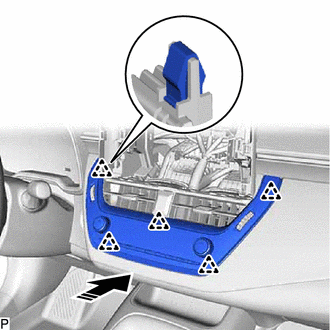

55900 9.INSTALL AIR CONDITIONING CONTROL ASSEMBLY (for Electrical Control Type)

a.

0,0 0,0 false

Install in this Direction

Connect the connector.

b.

Engage the 5 clips to install the air conditioning control assembly as shown in the illustration.

55405B 10.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (except 10.25 Inch Display)

55405B 11.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for 10.25 Inch Display)
