HEATING / AIR CONDITIONING  FRONT BLOWER MOTOR  REMOVAL


PROCEDURE

Hide 87103B 2.REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY

a.

for 1-tier Type:

i.

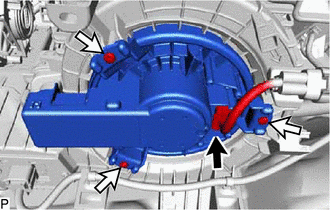

E419108

Disconnect the connector.


ii.

Remove the 3 screws and blower motor with fan sub-assembly.

NOTICE:

Replace the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.




b.

for 2-tier Type:

i.

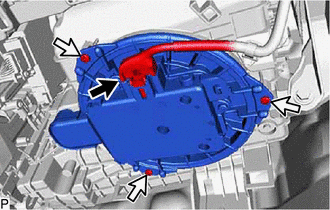

E399474

Disconnect the connector.


ii.

Remove the 3 screws and blower motor with fan sub-assembly.

NOTICE:

Replace the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.
