RM3660EC _58 Vehicle Interior _080733 HEATING / AIR CONDITIONING _0393730 BLOWER UNIT A

HEATING / AIR CONDITIONING  BLOWER UNIT  REASSEMBLY


PROCEDURE

Hide 87130K 1.INSTALL NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY

a.

for Automatic Air Conditioning System except M15B-FKS, M15C-FKS, 8ZR-FXE:

i.

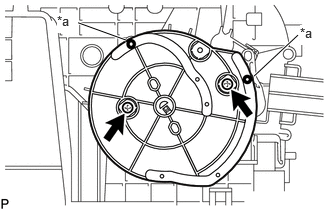

E339327C03
0.792,0.229 1.313,0.417 true 2.646,0.792 3.104,0.365 true 0.594,0.135 0.813,0.344 0.219,0.208 10 true *a 3.125,0.26 3.344,0.469 0.219,0.208 10 true *a
*a Link


Connect the 2 links of the blower assembly to the 2 grooves on the plate of the No. 1 blower damper servo sub-assembly as shown in the illustration.


ii.

Install the No. 1 blower damper servo sub-assembly with the 2 screws.



b.

for Automatic Air Conditioning System and M15B-FKS, M15C-FKS, 8ZR-FXE:

i.

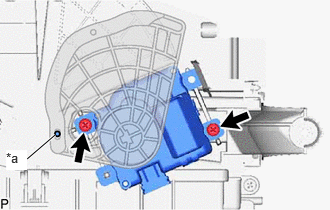

E513296C01
0.281,1.656 0.573,1.406 true 0.063,1.563 0.281,1.771 0.219,0.208 10 true *a
*a Link


Connect the link of the blower assembly to the groove on the plate of the No. 1 blower damper servo sub-assembly as shown in the illustration.


ii.

Install the No. 1 blower damper servo sub-assembly with the 2 screws.



c.

for Manual Air Conditioning System except M15B-FKS, M15C-FKS, 8ZR-FXE:

i.

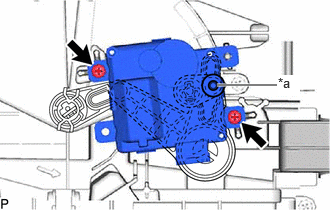

E418737C01
2.26,0.885 2.885,0.885 true 2.896,0.781 3.125,1 0.229,0.219 10 true *a
*a Link


Connect the link of the No. 1 blower damper servo sub-assembly to the groove on the lever of the blower assembly as shown in the illustration.


ii.

Install the No. 1 blower damper servo sub-assembly with the 2 screws.



d.

for Manual Air Conditioning System and M15B-FKS, M15C-FKS, 8ZR-FXE:

i.

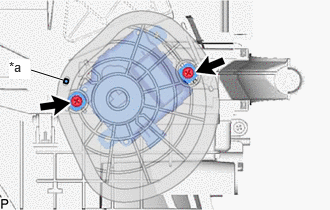

E513298C01
0.323,0.729 0.656,0.833 true 0.094,0.615 0.313,0.823 0.219,0.208 10 true *a
*a Link


Connect the link of the blower assembly to the groove on the plate of the No. 1 blower damper servo sub-assembly as shown in the illustration.


ii.

Install the No. 1 blower damper servo sub-assembly with the 2 screws.



Hide 2.INSTALL BLOWER RESISTOR (for Manual Air Conditioning System)

a.

except M15B-FKS, M15C-FKS, 8ZR-FXE:

i.

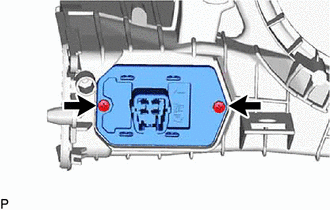

E418736

Install the blower resistor with the 2 screws.

NOTICE:

Replace the blower resistor if it has been dropped or subjected to a severe impact.




Hide 87165C 3.INSTALL BLOWER MOTOR CONTROL (for Automatic Air Conditioning System)

a.

for M15B-FKS, M15C-FKS, 8ZR-FXE:

i.
E513294

Install the blower resistor with the 2 screws.

NOTICE:

Replace the blower resistor if it has been dropped or subjected to a severe impact.




Hide 87103B 4.INSTALL BLOWER MOTOR WITH FAN SUB-ASSEMBLY

a.

for 1-tier Type:

i.

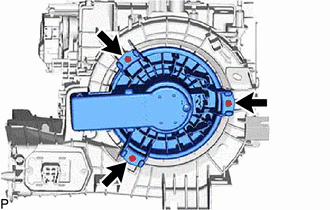

E418735

Install the blower motor with fan sub-assembly with the 3 screws.

NOTICE:

Replace the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.




b.

for 2-tier Type:

i.

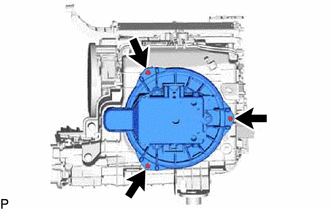

E402045

Install the blower motor with fan sub-assembly with the 3 screws.

NOTICE:

Replace the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.




Hide 87139C 5.INSTALL CLEAN AIR FILTER

a.

w/ Air Filter Case:

i.

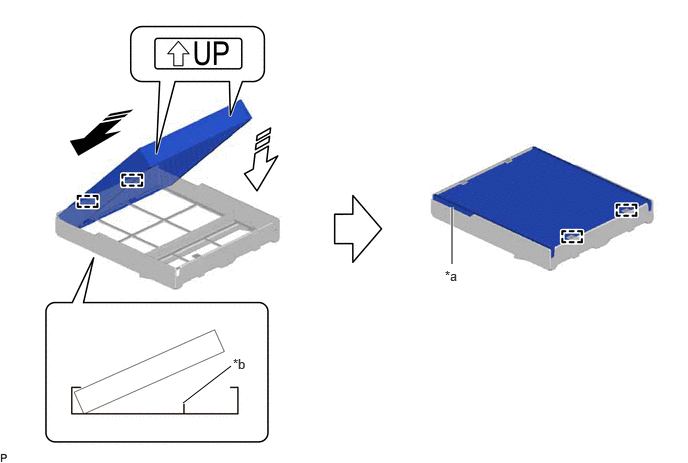

Engage the 2 guides on the cutout side of the air filter case and then engage the 2 guides as shown in the illustration to install the clean air filter.

E399238C01
4.708,2.75 4.708,2.156 true 1.906,4.198 2.406,3.813 false 4.635,2.792 4.927,3.063 0.292,0.271 10 false *a 2.427,3.708 2.75,3.979 0.323,0.271 10 false *b
*a Cutout *b Rib
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


NOTICE:
·

Make sure that the "UP" marks are facing the correct direction before installing the clean air filter.

·

Make sure that there is no clearance between the clean air filter and air filter case and that the clean air filter is not deformed.




ii.

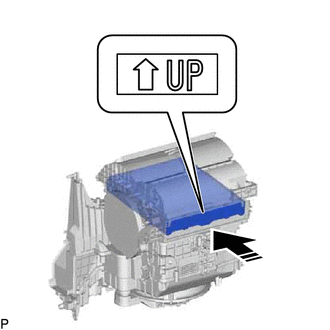

E402046C01
0,0 0,0 false
V113147

Install in this Direction


Install the air filter sub-assembly as shown in the illustration.

NOTICE:

Make sure that the "UP" mark is facing the correct direction before installing the air filter sub-assembly.




b.

w/o Air Filter Case:

i.

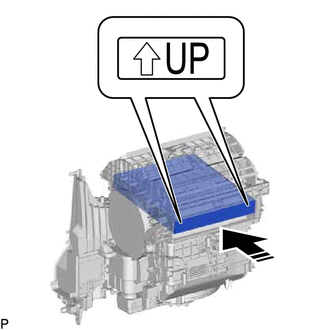

E419788C01
0,0 0,0 false
V113147

Install in this Direction


Install the clean air filter as shown in the illustration.

NOTICE:

Make sure that the "UP" mark is facing the correct direction before installing the air filter sub-assembly.




Hide 88899M 6.INSTALL AIR FILTER COVER PLATE

a.

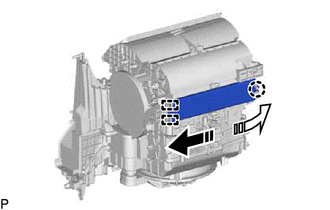

E402048C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


Engage the 2 guides and claw as shown in the illustration to install the air filter cover plate.
