HEATING / AIR CONDITIONING BLOWER UNIT DISASSEMBLY

Hide Display 88899M 1.REMOVE AIR FILTER COVER PLATE

a.

0,0 0,0 false

	Remove in this Direction (1)
	Remove in this Direction (2)

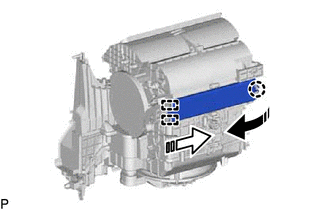

Disengage the claw and 2 guides as shown in the illustration to remove the air filter cover plate.

Hide Display 87139C 2.REMOVE CLEAN AIR FILTER

a.

w/ Air Filter Case:

i.

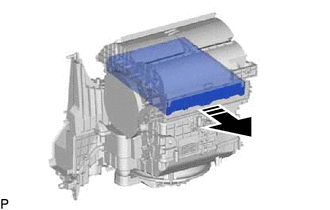

0,0 0,0 false

Remove in this Direction

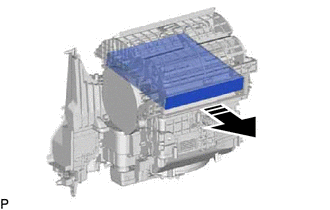

Remove the air filter sub-assembly as shown in the illustration.

ii.

Disengage the 4 guides to remove the clean air filter from the air filter case.

b.

w/o Air Filter Case:

i.

0,0 0,0 false

Remove in this Direction

Remove the clean air filter as shown in the illustration.

Hide Display 87103B 3.REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY

a.

for 1-tier Type:

i.

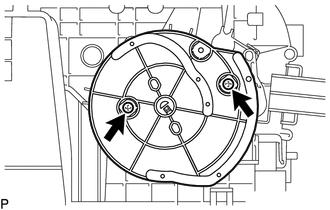

Remove the 3 screws and blower motor with fan sub-assembly.

b.

for 2-tier Type:

i.

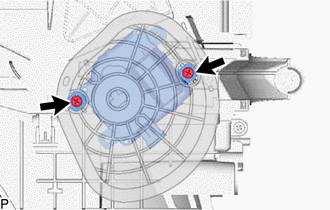

Remove the 3 screws and blower motor with fan sub-assembly.

Hide Display 87165C 4.REMOVE BLOWER MOTOR CONTROL (for Automatic Air Conditioning System)

a.

for M15B-FKS, M15C-FKS, 8ZR-FXE:

i.

Remove the 2 screws and blower motor control.

Hide Display 5.REMOVE BLOWER RESISTOR (for Manual Air Conditioning System)

a.

except M15B-FKS, M15C-FKS, 8ZR-FXE:

i.

Remove the 2 screws and blower resistor.

Hide Display 87130K 6.REMOVE NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY

a.

for Automatic Air Conditioning System except M15B-FKS, M15C-FKS, 8ZR-FXE:

i.

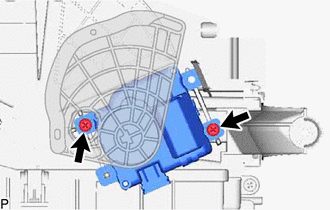

Remove the 2 screws and No. 1 blower damper servo sub-assembly.

b.

for Automatic Air Conditioning System and M15B-FKS, M15C-FKS, 8ZR-FXE:

i.

Remove the 2 screws and No. 1 blower damper servo sub-assembly.

c.

for Manual Air Conditioning System except M15B-FKS, M15C-FKS, 8ZR-FXE:

i.

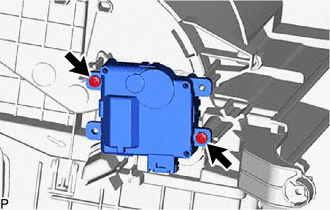

Remove the 2 screws and No. 1 blower damper servo sub-assembly.

d.

for Manual Air Conditioning System and M15B-FKS, M15C-FKS, 8ZR-FXE:

i.

Remove the 2 screws and No. 1 blower damper servo sub-assembly.
