RM3660EC _58 Vehicle Interior _080733 HEATING / AIR CONDITIONING _0393729 AIR CONDITIONING UNIT(for Gasoline Model) A

HEATING / AIR CONDITIONING  AIR CONDITIONING UNIT(for Gasoline Model)  DISASSEMBLY


PROCEDURE

Hide 82143C 1.REMOVE NO. 3 INSTRUMENT PANEL WIRE (w/ PTC Heater)

a.

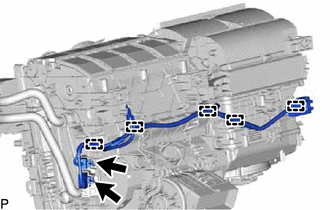

E412901

Disconnect the 2 connectors.


b.

Disengage the 5 clamps to remove the No. 3 instrument panel wire.


Hide 88898D 4.REMOVE GROMMET (w/ Grommet)

a.

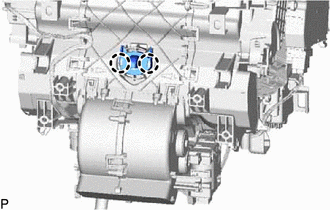

E399928

Disengage the 2 claws to remove the grommet.


Hide 87212 6.REMOVE REAR NO. 1 AIR DUCT (w/ Rear Air Duct)

a.

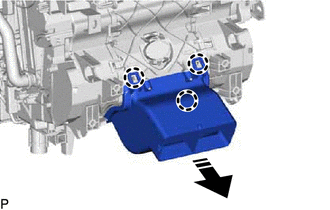

E399932C01
0,0 0,0 false
V113147

Remove in this Direction


Disengage the 3 claws and remove the rear No. 1 air duct as shown in the illustration.


Hide 88650N 7.REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

a.

for Automatic Air Conditioning System:

i.

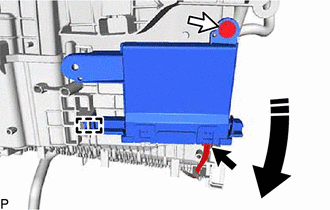

E401058C01
0,0 0,0 false
V113147

Remove in this Direction


Disconnect the connector.


ii.

Remove the screw.


iii.

Disengage the guide to remove the air conditioning amplifier assembly as shown in the illustration.



b.

for Manual Air Conditioning System:

i.

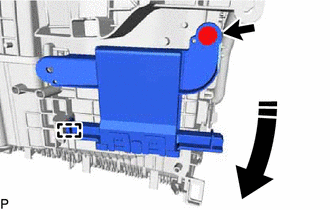

E418614C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw.


ii.

Disengage the guide to remove the air conditioning amplifier assembly as shown in the illustration.



Hide 8.REMOVE HEATER CONTROL CABLE SUB-ASSEMBLY (for Manual Air Conditioning System)

a.

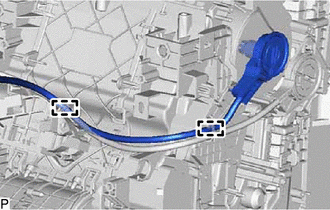

E418727

Disengage the 2 clamps.


b.

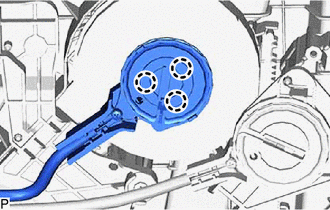

E418728

Disengage the 3 claws and remove the heater control cable sub-assembly.


Hide 9.REMOVE AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY (for Manual Air Conditioning System)

a.

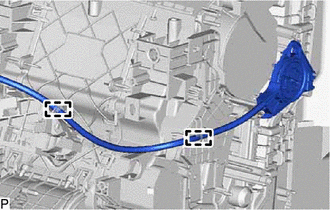

E418730

Disengage the 2 clamps.


b.

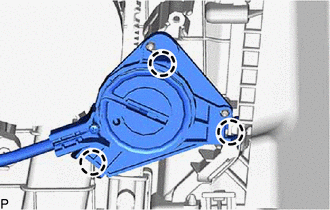

E418731

Disengage the 3 claws and remove the air mix damper control cable sub-assembly.


Hide 82210K 10.REMOVE AIR CONDITIONING HARNESS ASSEMBLY

a.

for Automatic Air Conditioning System except M15B-FKS, M15C-FKS:

i.

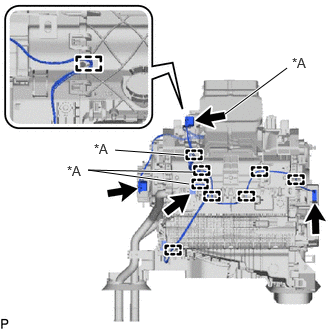

E411525C06
2.344,1.188 2.99,0.708 true 1.198,1.563 1.917,1.615 true 1.969,1.917 0.917,1.771 0.917,1.771 2.01,1.792 true 3.042,0.573 3.354,0.729 0.313,0.156 10 false *A 0.979,1.469 1.292,1.625 0.313,0.156 10 false *A 0.698,1.698 1.01,1.854 0.313,0.156 10 false *A
*A w/ Rear Air Duct


Disconnect each connector.


ii.

Disengage each clamp to remove the air conditioning harness assembly.



b.

for Automatic Air Conditioning System and M15B-FKS, M15C-FKS:

i.

Disconnect each connector.

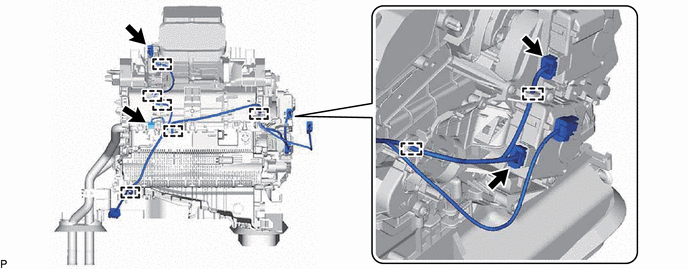

E513079


ii.

Disengage each clamp to remove the air conditioning harness assembly.



c.

for Manual Air Conditioning System:

i.

Disconnect the connector.

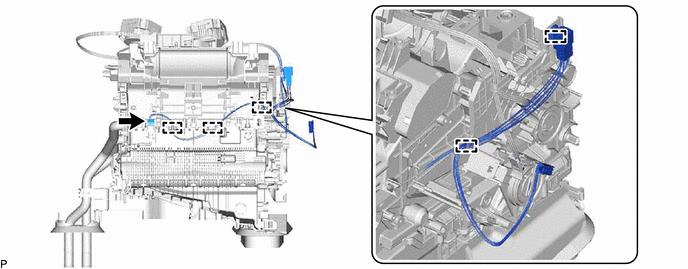

E513088


ii.

Disengage each clamp to remove the air conditioning harness assembly.



Hide 87114B 11.REMOVE HEATER COVER (w/o PTC Heater)

a.

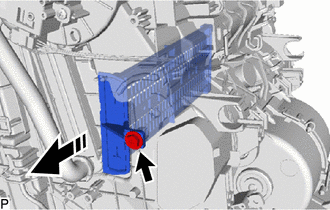

E339332C03
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw and heater cover as shown in the illustration.


Hide 87114L 12.REMOVE NO. 2 HEATER COVER (w/ PTC Heater)

a.

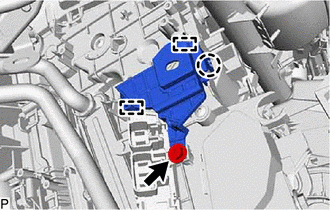

E412946

Remove the screw.


b.

Disengage the claw and 2 guides to remove the No. 2 heater cover.


Hide 87710G 13.REMOVE QUICK HEATER ASSEMBLY (w/ PTC Heater)

a.

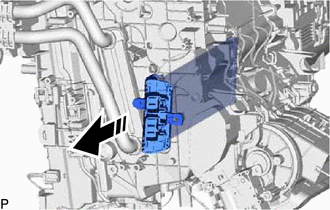

E412903C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the quick heater assembly as shown in the illustration.


Hide 87050C 15.REMOVE NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (for Automatic Air Conditioning System)

a.

for M15B-FKS, M15C-FKS:

i.

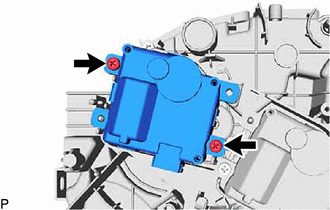

E513082

Remove the 2 screws and No. 1 air conditioning radiator damper servo sub-assembly.



b.

except M15B-FKS, M15C-FKS:

i.

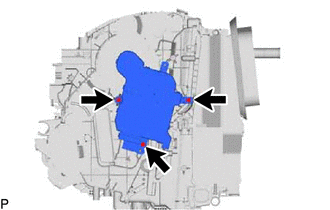

E402206

Remove the 3 screws and No. 1 air conditioning radiator damper servo sub-assembly.



Hide 87050D 16.REMOVE NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (w/ Rear Air Duct)

a.

for M15B-FKS, M15C-FKS:

i.

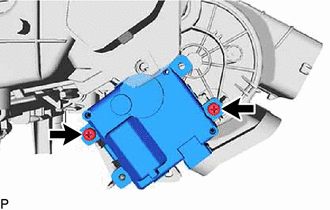

E513080

Remove the 2 screws and No. 2 air conditioning radiator damper servo sub-assembly.



b.

except M15B-FKS, M15C-FKS:

i.

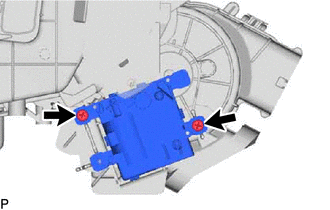

E412912

Remove the 2 screws and No. 2 air conditioning radiator damper servo sub-assembly.



Hide 87050E 17.REMOVE NO. 3 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY (for Automatic Air Conditioning System)

for M15B-FKS, M15C-FKS:

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING UNIT (for HV Model)>DISASSEMBLY

Hide 88501 23.REMOVE NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY

a.

Remove the 2 screws.

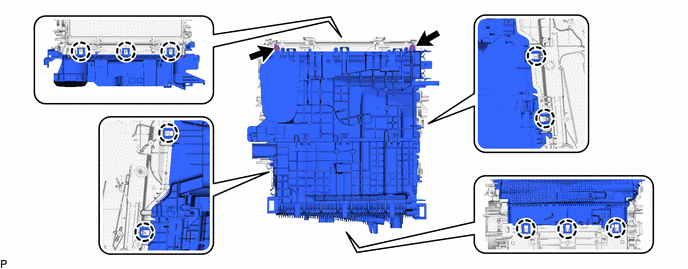

E399954


b.

Disengage the 10 claws to remove the upper heater case with No. 1 cooler evaporator sub-assembly from the lower heater case.


c.

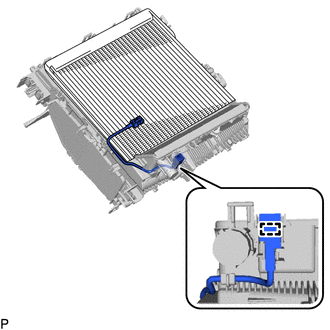

E399955

Disengage the clamp.


d.

Remove the No. 1 cooler evaporator sub-assembly with No. 1 cooler thermistor from the upper heater case.
