RM3660EC _58 Vehicle Interior _080785 LIGHTING (INT) _0393091 LUGGAGE COMPARTMENT ROOM LIGHT A

LIGHTING (INT)  LUGGAGE COMPARTMENT ROOM LIGHT  INSTALLATION


PROCEDURE

Hide 81330B 1.INSTALL LUGGAGE COMPARTMENT LIGHT BULB (for Bulb Type)

a.

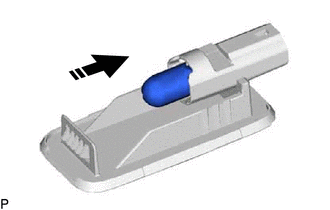

E365658C01
0,0 0,0 false
V113147

Install in this Direction


Install the luggage compartment light bulb to the No. 1 luggage compartment light lens as shown in the illustration.


b.

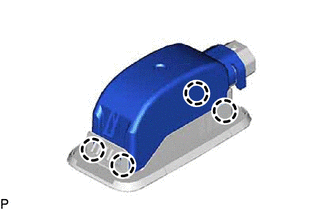

E365659

Engage the 4 claws to install the shade to the No. 1 luggage compartment light lens.


Hide 81330 2.INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

a.

Connect the connector.


b.

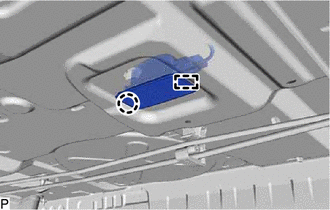

B679864

Engage the guide and claw to install the No. 1 luggage compartment light assembly.
