LUGGAGE COMPARTMENT ROOM LIGHT
A
LIGHTING (INT) LUGGAGE COMPARTMENT ROOM LIGHT REMOVAL
PROCEDURE
81330
1.REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
a.
1.25,1.708 1.25,1.24
true
1.188,1.719 1.5,1.875
0.313,0.156
10
true
*a
| *a | Protective Tape |

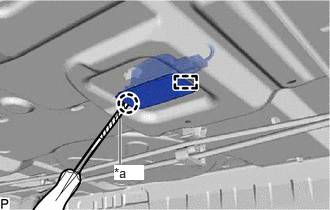

Using a screwdriver with its tip wrapped with protective tape, disengage the claw and guide.
b.
Disconnect the connector to remove the No. 1 luggage compartment light assembly.
81330B
2.REMOVE LUGGAGE COMPARTMENT LIGHT BULB (for Bulb Type)
a.
1.292,1.365 1.938,1.927
true
1.99,1.854 2.302,2.01
0.313,0.156
10
false
*a
| *a | Protective Tape |

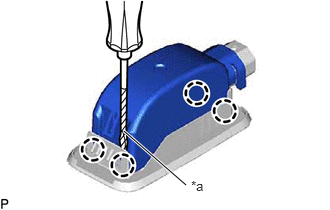

Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the shade from the No. 1 luggage compartment light lens.
b.
0,0 0,0
false
|
Remove in this Direction |

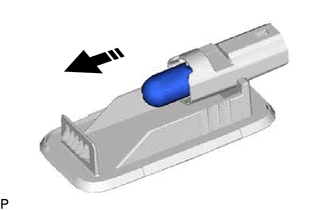

Remove the luggage compartment light bulb from the No. 1 luggage compartment light lens as shown in the illustration.
