WIPER / WASHER  WASHER NOZZLE  ADJUSTMENT

Select a washer nozzle sub-assembly so that the position the washer fluid hits the windshield will be within the standard area. Replace the washer nozzle sub-assembly with the selected one.

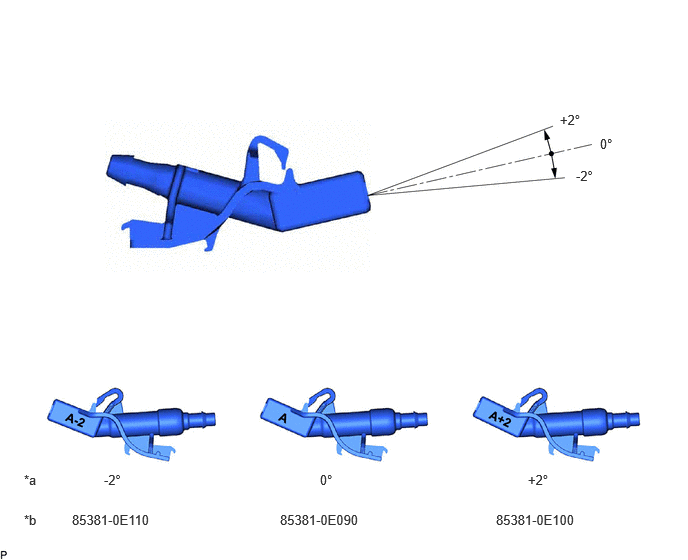

0.25,4.917 0.5,5.167 0.25,0.25 10 false *a 0.25,5.333 0.583,5.583 0.333,0.25 10 false *b 1.083,4.917 1.5,5.167 0.417,0.25 10 false -2° 3.333,4.917 3.75,5.167 0.417,0.25 10 false 0° 5.5,4.917 5.917,5.167 0.417,0.25 10 false +2° 0.75,5.333 1.75,5.583 1,0.25 10 false 85381-0E110 2.917,5.333 3.917,5.583 1,0.25 10 false 85381-0E090 5.167,5.333 6.167,5.583 1,0.25 10 false 85381-0E100 6.25,1.417 6.667,1.667 0.417,0.25 10 false 0° 5.833,1.167 6.25,1.417 0.417,0.25 10 false +2° 6,1.75 6.417,2 0.417,0.25 10 false -2°

*a

Washer Fluid Spray Angle

*b

Part Number

Select a washer nozzle sub-assembly so that the position the washer fluid hits the windshield will be within the standard area. Replace the washer nozzle sub-assembly with the selected one.

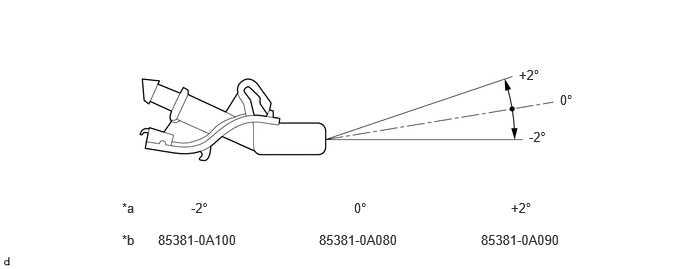

5.406,0.698 5.865,0.896 0.458,0.198 10 false +2° 5.51,1.344 5.969,1.542 0.458,0.198 10 false -2° 5.833,0.958 6.292,1.156 0.458,0.198 10 false 0° 1.271,2.083 1.583,2.24 0.313,0.156 10 false *a 1.271,2.417 1.583,2.573 0.313,0.156 10 false *b 1.646,2.417 3.333,2.615 1.688,0.198 10 false 85381-0A100 3.323,2.417 5.01,2.615 1.688,0.198 10 false 85381-0A080 5.01,2.417 6.698,2.615 1.688,0.198 10 false 85381-0A090 5.323,2.083 5.781,2.281 0.458,0.198 10 false +2° 3.688,2.083 4.146,2.281 0.458,0.198 10 false 0° 1.99,2.083 2.448,2.281 0.458,0.198 10 false -2°

*a

Washer Fluid Spray Angle

*b

Part Number
