RM3660EC _59 Vehicle Exterior _080794 MIRROR (EXT) _0393001 OUTER REAR VIEW MIRROR GLASS A

MIRROR (EXT)  OUTER REAR VIEW MIRROR GLASS  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 87961 1.INSTALL OUTER MIRROR

a.

w/ Mirror Heater:

i.

Connect the 2 connectors.



b.

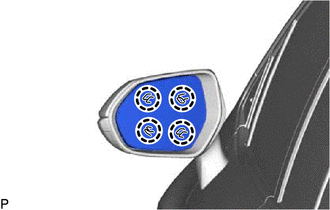

E398363

Engage the 4 claws to install the outer mirror.

NOTICE:

Do not push the outer mirror with excessive force. Doing so may break the mirror surface.
