RM3660EC _59 Vehicle Exterior _080794 MIRROR (EXT) _0393001 OUTER REAR VIEW MIRROR GLASS A

MIRROR (EXT)  OUTER REAR VIEW MIRROR GLASS  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 87961 1.REMOVE OUTER MIRROR

a.

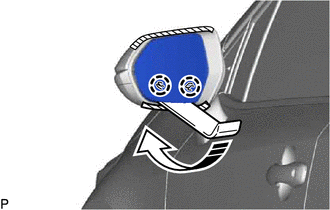

E398358C01
0,0 0,0 false
V100155

Protective Tape
V113147

Move in this Direction


Apply protective tape to the areas shown in the illustration.


b.

Push the upper part of the mirror surface and tilt it.


c.

Using a moulding remover, disengage the 2 claws on the lower part of the outer mirror as shown in the illustration.

NOTICE:

Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.



d.

Push the lower part of the mirror surface and tilt it.


e.

w/o Mirror Heater:

i.

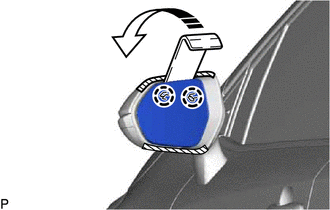

E398359C01
0,0 0,0 false
V113147

Move in this Direction


Using a moulding remover, disengage the 2 claws on the upper part of the outer mirror as shown in the illustration to remove it.

NOTICE:

Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.




f.

w/ Mirror Heater:

i.
E398359C01
0,0 0,0 false
V113147

Move in this Direction


Using a moulding remover, disengage the 2 claws on the upper part of the outer mirror as shown in the illustration.

NOTICE:

Do not push the outer mirror with excessive force. Doing so may cause the actuator to come off or break the mirror surface.



ii.

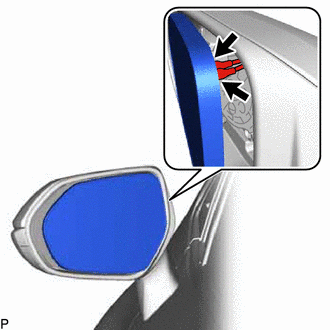

B642050

Disconnect the 2 connectors to remove the outer mirror.
